How does the GMX600 measure rain without a bucket?

Omni Instruments Expert Response: It uses an infrared beam across the top of the unit. As raindrops fall through the beam, the sensor analyzes the size and frequency of the drops to calculate the rainfall total and intensity, emulating a tipping bucket output digitally.

Is it as accurate as a tipping bucket?

Omni Instruments Expert Response: The optical sensor is excellent for detecting the start of rain and general intensity, making it perfect for alerts and automation. However, for "Reference Quality" WMO data where every 0.1mm of accumulation is critical, we recommend the GMX531 with a physical Kalyx bucket.

Does it require cleaning?

Omni Instruments Expert Response: Because it is solid-state, it is "low maintenance," not "no maintenance." We recommend wiping the top optical sensor every 3-6 months to prevent dirt or bird droppings from affecting the infrared beam.

Omni Instruments Expert Response: The standard GMX600 is designed for liquid precipitation. In cold climates, the Heated Variant is required to ensure that snow or frost does not accumulate on the sensor surfaces, which would interfere with the infrared and ultrasonic readings.

What is the benefit of the GPS option?

Omni Instruments Expert Response: For stationary sites, GPS provides a "Golden Time" reference and location metadata. For mobile sites (like a vehicle or ship), it allows the station to calculate "True Wind" by subtracting the vehicle's movement from the reported wind speed.

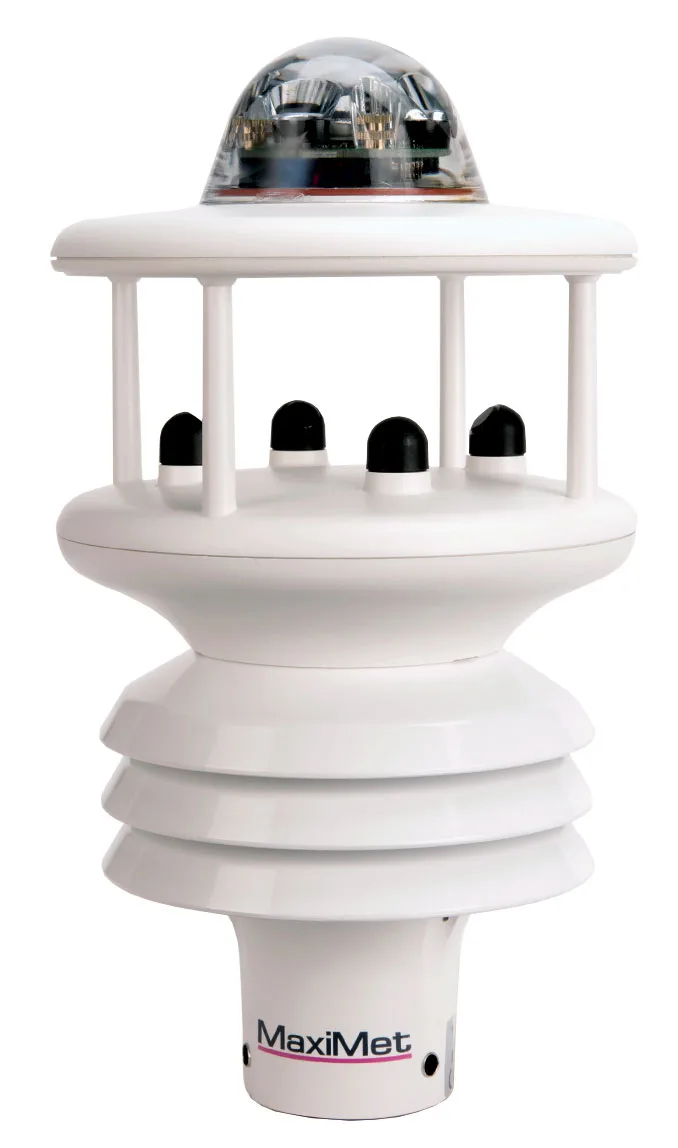

GMX600 Weather Station for Wind, Temp, RH, Pressure & Precipitation

The MaxiMet GMX600 is a combined instrument mounted inside three double louvered, naturally aspirated radiation shields for the measurement of wind speed and direction, ambient temperature, humidity and pressure, and precipitation, with no moving parts. The results are high performance across each measurement over long periods of time.The data is output in serial formats – RS232, RS485. SDI12, NMEA and MODBUS.

Need help finding the right product?

Downloads

Description

Description

The MaxiMet GMX600 is the ultimate all-in-one meteorological solution for sites where high-frequency, maintenance-free data is the priority. It combines ultrasonic wind sensing and a full climate cluster with a solid-state optical rain gauge. Unlike the GMX531 or GMX550 which rely on physical tipping buckets, the GMX600 has zero moving parts, making it the primary choice for remote, inaccessible locations—such as highway gantries, coastal towers, or smart-city nodes—where physical maintenance like clearing leaves from a bucket is impossible. It provides a complete environmental profile (Wind, Rain, Temp, RH, Pressure) in a single, compact digital stream, delivering high reliability in environments prone to mechanical wear or clogging.

Wind

Relative Wind Speed & Direction. Relative to the North Marker
Average Wind Speed & Direction. Short and Long Term Averages
Corrected Wind. Corrected to Magnetic North
True Wind & Direction. Corrected by GPS (Option).
Gust Speed & Direction (WMO)
Corrected Gust Speed & Direction (WMO) (Requires GPS)

Temperature & Relative Humidity

Air Temperature and Relative Humidity
Calculated Dew Point and Absolute Humidity
Wet Bulb Temperature (When Temperature <-20 and <50°C, 5-99%RH)
Heat Index (When Temperature >23.88°C)
Wind Chill (When Temperature <10°C and wind speed >1.5m/s

Barometric Pressure

Barometric Pressure
Pressure at Sea Level
Pressure at Station
Air Density

Rainfall

Integrated Optical Rain Sensor
Precipitation Total
Precipitation Intensity
Precipitation Status
Readings for General Indication Only

GPS (Option)

GPS Location (Longitude, Latitude)
GPS Height
Real Time Clock
GPS Heading
GPS Speed
GPS Status

Inclinometer/Compass

Compass Reading (0-359° Magnetic North)
X-Tilt. +ve East, -ve West
Y-Tilt. +ve North, -ve South
Z Orientation, +1 Normal Upright, -1 Inverted Position
X & Y Can Provide 2 Decimal Points for Easy Installation.

Additional Parameters

Twilight. (Civil, Nautical and Astronomical)
Time of Sunrise, Solar Noon, Sunset (Location Required)
Position of the Sun
Supply Voltage
System Status
System Time and Date (RTC with GPS Option)
Custom User Information (up to 16 character)

Parameter Specifications

Parameter	Range	Resolution	Accuracy	Units of Measure
Wind Speed	0-60m/s	0.01m/s	0.3ms (0-10m/s) 3% (10-40m/s) 5% (40/60m/s)	m/s, Km/h, mph, kts, ft/min
Wind Direction	0-360°	1°	±3° (0.5-40m/s) ±5° (40-60m/s)	Degrees
Compass	0-360°	±1°	±3°	Degrees
Temperature	-40 to +70°C	0.1°C	±0.3°C	°C, F or °K
Humidity	0-100%RH	1%RH	Typically ±2%RH	%RH, g/m²
Dew Point	-40 to +70°C	0.1°C		°C, F or °K
Pressure	300-1,250hPa	1hPa	±0.4hPa (Absolute) ±0.8hPa (Relative)	hPa, mBar, mmHg, InHg
Rainfall	0 to 150mm/Hr	0.08mm/tip		mm or Inch

GMX600 Specifications

Output Rate:	1Hz, 1 reading per minute, 1 Reading per hour, or Polled Mode
Digital Comms:	RS232, RS485, RS422, SDI-12, NMEA, Modbus, ASCII
Power Supply:	5-30vDC (10-35vDC with Heating)
Consumption @ 12vDC:	64mA (GPS +10mA, Heating +400mA)
IP Rating:	IP66
Operational Temperature Range:	-35 to +70°C (-40 to +70°C with Heating)
CE Marking:	Yes

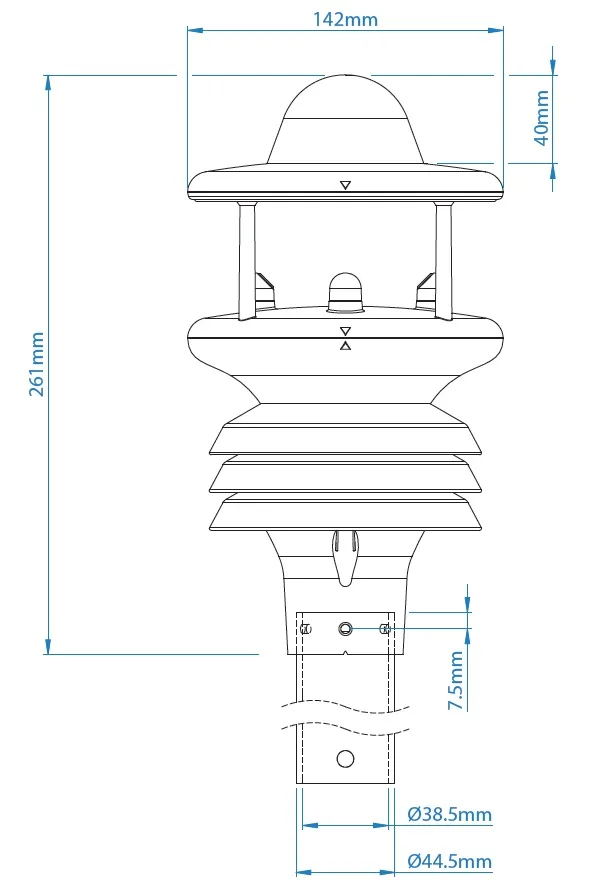

Dimensions:	261 x 142 x 142mm
Weight:	0.8Kg
Origin:	UK
Warranty:	24 Months

Product

Ref

Price

Product Description

1957-0600-60-000

£2,197.00

MaxiMet GMX600 Compact Weather Station. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, Precipitation and 2-Axis Compass Heading. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index, Absolute Humidity, Air Density, Pressure at Sea Level, Rain Fall Total, Intensity and Status. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 5-30vDC (Consumption 64mA @ 12vDC).

1957-0600-60-100

£2,395.00

MaxiMet GMX600 Compact Weather Station with GPS. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, Precipitation, 2-Axis Compass Heading, GPS Location, Heading and Speed. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, True Wind Speed and Direction correcting for misalignment or motion, Height above Sea Level, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index, Absolute Humidity, Air Density, Pressure at Sea Level, Rain Fall Total, Intensity and Status. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 5-30vDC (Consumption 74mA @ 12vDC).

1957-0600-60-001

£2,380.00

MaxiMet GMX600 Compact Weather Station with Heating. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, Precipitation and 2-Axis Compass Heading. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index, Absolute Humidity, Air Density, Pressure at Sea Level, Rain Fall Total, Intensity and Status. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 10-30vDC (Consumption 464mA @ 12vDC).

1957-0600-60-101

£2,579.00

MaxiMet GMX600 Compact Weather Station with GPS and Heating. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, Precipitation, 2-Axis Compass Heading, GPS Location, Heading and Speed. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, True Wind Speed and Direction correcting for misalignment or motion, Height above Sea Level, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index, Absolute Humidity, Air Density, Pressure at Sea Level, Rain Fall Total, Intensity and Status. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 10-30vDC (Consumption 474mA @ 12vDC).

1957-10-065

£130.00

MaxiMet 1.8 Metre RS232 to USB converter including 5vDC power and communication configuration cable (9 way MaxiMet connector fitted one end and USB connector at the other end). Simplifies the connection of the MaxiMet units to a PC

1771-PK-115

£286.00

Anodized Aluminium Bracket for mounting to pole and wall. Includes an aluminium sensor adaptor for WindSonic or MaxiMet, fully anodised to reduce corrosion. The Bracket uses a mounting clamp suitable for attaching to a vertical pipe with a diameter of 30-58mm. When mounting the MaxiMet, consider the position, orientation and alignment of the unit. Mount at the top of a pipe to ensure a clear unobstructed measurement view. Kit includes stainless steel mounting bolts, multiple earth points and wall / pole mounting kit

M-TPB

£155.82

Weather station tripod mounting kit with 2m pole. The legs on this tripod are not adjustable for uneven surfaces and ground should be levelled prior to installation. ¼” stake kit (M-SKB), ½” Stake kit (M-SKA), Guy wire kit (M-GWA) and Grounding kit (M-GKA) are available separately.

M-GWA

£114.16

M-GWA Guy Wire Kit for the M-TPA or M-TPB tripods. Can be secured to Stakes spaced around the 2m tripod at a distance of 3 or 4 m, or to the tripod legs of the 3m tripod. This helps secure the tripod in place and reduces any movement due to wind.
