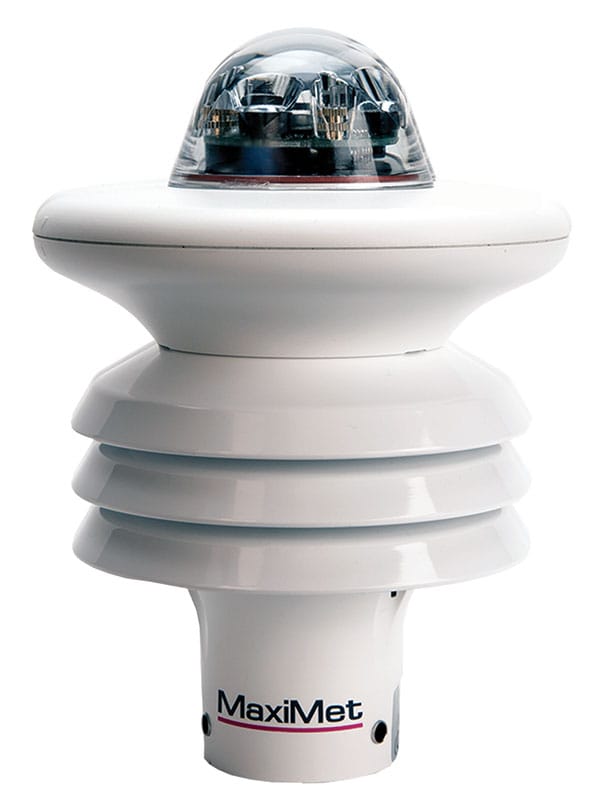

MaxiMet GMX400 Weather Station

GMX400 Weather Station for Temp, RH, Pressure & Precipitation

The MaxiMet GMX400 is a combined instrument mounted inside three double louvered, naturally aspirated radiation shields for the measurement of ambient temperature, humidity and pressure, and precipitation, with no moving parts. The results are high performance across each measurement over long periods of time.The data is output in serial formats – RS232, RS485. SDI12, NMEA and MODBUS.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

GMX400 Weather Station

Datasheet

Maximet Accessories

Description

Temperature & Relative Humidity

  • Air Temperature and Relative Humidity
  • Calculated Dew Point and Absolute Humidity
  • Wet Bulb Temperature (When Temperature <-20 and <50°C, 5-99%RH)

Barometric Pressure

  • Barometric Pressure
  • Pressure at Sea Level
  • Pressure at Station
  • Air Density

Rainfall

  • Integrated Optical Rain Sensor
  • Precipitation Total
  • Precipitation Intensity
  • Precipitation Status
  • Readings for General Indication Only.

Inclinometer/Compass

  • Compass Reading (0-359° Magnetic North)
  • X -Tilt. +ve East, -ve West
  • Y -Tilt. +ve North, -ve South
  • Z Orientation, +1 Normal Upright, -1 Inverted Position
  • X & Y Can Provide 2 Decimal Points for Easy Installation.

Additional Parameters

  • Supply Voltage
  • System Status
  • System Time and Date
  • Custom User Information (up to 16 character)

Parameter Specifications

Parameter Range Resolution Accuracy Units of Measure
Compass 0-360° 1° ±3° Degrees
Temperature -40 to +70°C 0.1°C ±0.3°C °C, F or °K
Humidity 0-100%RH 1%RH Typically ±2%RH %RH, g/m²
Dew Point -40 to +70°C 0.1°C °C, F or °K
Pressure 300-1,250hPa 0.1hPa ±0.4hPa (Absolute)
±0.8hPa (Relative)		 hPa, mBar, mmHg, InHg
Rainfall 0 to 150mm/Hr 0.08mm/tip mm or Inch

GMX400 Specifications

Output Rate: 1Hz, 1 reading per minute, 1 Reading per hour, or Polled Mode
Digital Comms: RS232, RS485, RS422, SDI-12, NMEA, Modbus, ASCII
Power Supply: 5-30vDC
Consumption @ 12vDC: 45mA
IP Rating: IP66
Operational Temperature Range: -35 to +70°C
CE Marking: Yes

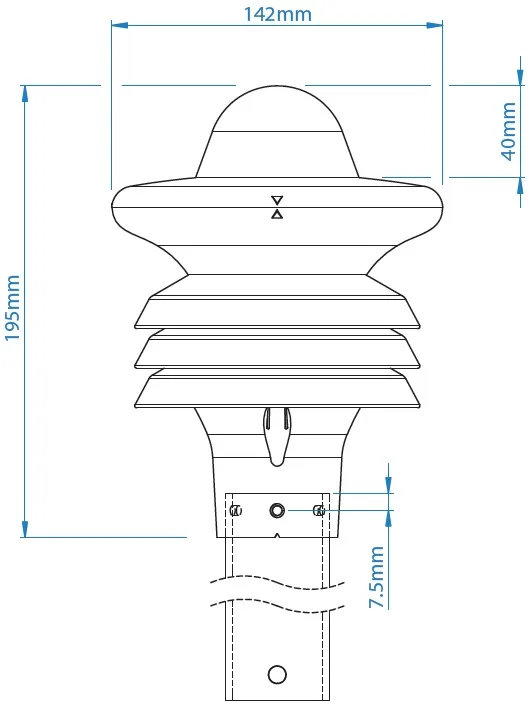

Dimensions: 195 x 142 x 142mm
Weight: 0.5Kg
Origin: UK
Warranty: 24 Months

Product

Ref

Price

Product Description

1957-0400-00-000

£1,374.00

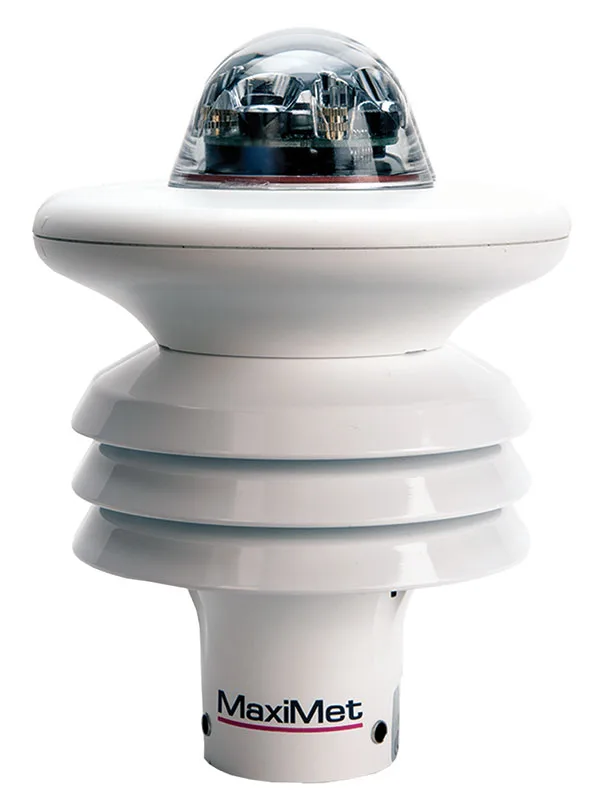

MaxiMet GMX400 Compact Weather Station for temperature, humidity, pressure and precipitation. Measured parameters: Temperature °C / °F / °K, Relative humidity % Rh, g/m3, g/kg, Barometric pressure hPa, bar, mm Hg, Wet bulb temperature °C / °F / °K, Absolute humidity g/m3, Air density kg/m3, Precipitation mm/hr, mm/total, mm/24 hr, in/hr, in/total, in/24 hr Serial data Outputs RS232, 422, 485 (ASCII), SDI-12, NMEA, MODBUS
MORE INFO
Add to basket
MaxiMet 1.8 Metre RS232 to USB converter

1957-10-065

£123.00

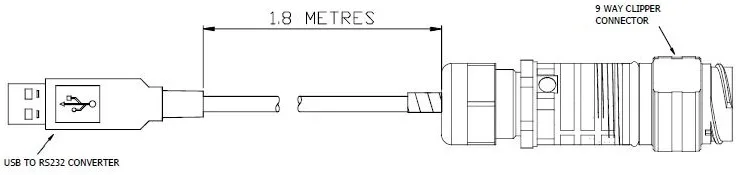

MaxiMet 1.8 Metre RS232 to USB converter including 5vDC power and communication configuration cable (9 way MaxiMet connector fitted one end and USB connector at the other end). Simplifies the connection of the MaxiMet units to a PC
MORE INFO
Add to basket

1771-PK-115

£272.00

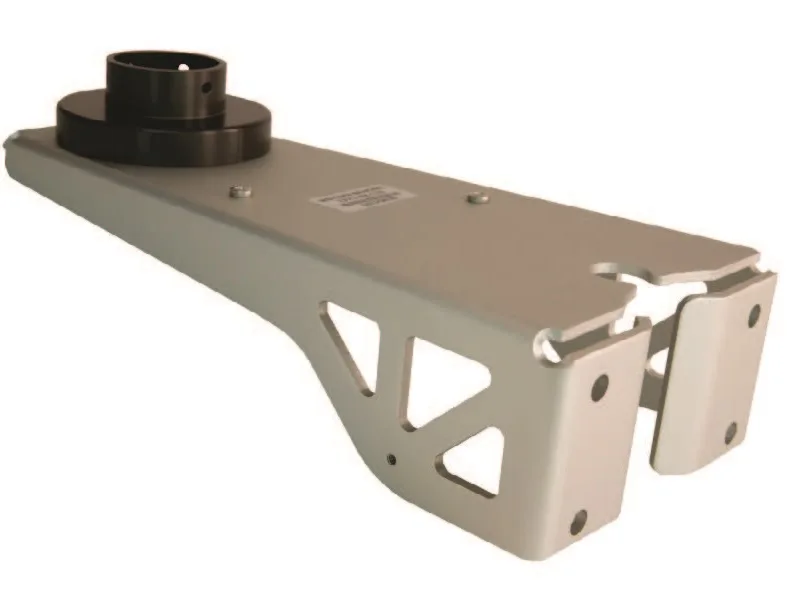

Anodized Aluminium Bracket for mounting to pole and wall. Includes an aluminium sensor adaptor for WindSonic or MaxiMet, fully anodised to reduce corrosion. The Bracket uses a mounting clamp suitable for attaching to a vertical pipe with a diameter of 30-58mm. When mounting the MaxiMet, consider the position, orientation and alignment of the unit. Mount at the top of a pipe to ensure a clear unobstructed measurement view. Kit includes stainless steel mounting bolts, multiple earth points and wall / pole mounting kit
MORE INFO
Add to basket

M-TPB

£155.82

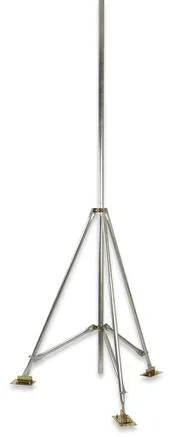

Weather station tripod mounting kit with 2m pole. The legs on this tripod are not adjustable for uneven surfaces and ground should be levelled prior to installation. ¼” stake kit (M-SKB), ½” Stake kit (M-SKA), Guy wire kit (M-GWA) and Grounding kit (M-GKA) are available separately.
MORE INFO
Add to basket

M-GWA

£114.16

M-GWA Guy Wire Kit for the M-TPA or M-TPB tripods. Can be secured to Stakes spaced around the 2m tripod at a distance of 3 or 4 m, or to the tripod legs of the 3m tripod. This helps secure the tripod in place and reduces any movement due to wind.
MORE INFO
Add to basket
