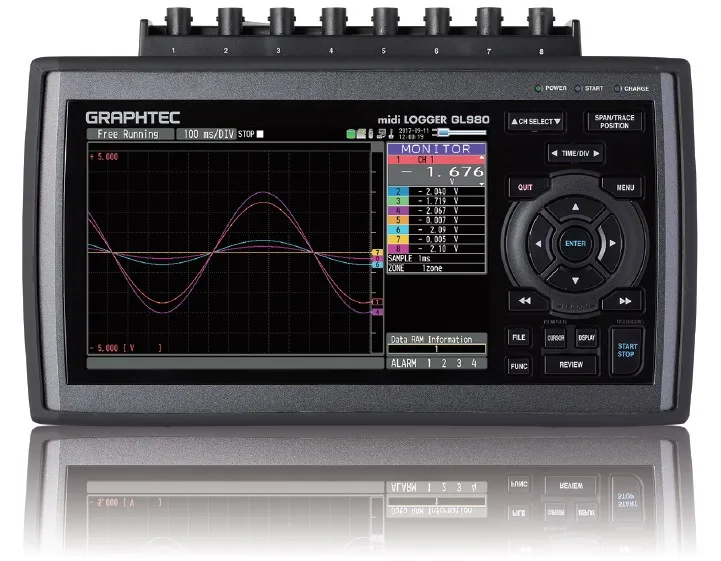

The GL980 is an 8 channel standalone data logger suitable for voltage and true RMS measurement. Analogue inputs are also suitable for use with K, J, E, T, R, S, B, N and W Type Thermocouples, 0-500V or Humidity (via B-530 sensor). The GL980 comes with a wide 7″ wide TFT colour LCD with waveform or digital options. Internal RAM allows for up to 4 million readings per channel and SD card slot allows for up to 4GB memory cards. Built-in USB port allows data transfer to a PC or laptop and Ethernet port allows for connection to a LAN. The GL980 also allows FTP server functions and NTP synchronization with the Ethernet or WLAN ports. Emails may also be sent to send information when alarms occur, or alerts for power, comms or memory issues.
| Number of Analog Inputs | 8 Channels |
| Measurement Ranges | mV: 20, 50, 100, 250, 500mV. (RMS: 10, 25, 50, 100, 250, 500mV RMS) V: 1, 2, 5, 10, 20, 50, 100, 200, 500V and 1-5V FS. (RMS: 1, 2.5, 5, 10, 25, 50, 100, 250V RMS) Temperature: Thermocouples K, J, E, T, R, S, B, N, W Humidity: 0-100%RH, (using optional sensor, B-530). |
| Input Terminals | Isolated BNC connector and Screw Terminals (M3, 5 screw) |
| Sampling Interval | 1, 2, 5, 10, 20, 50, 100, 200, 500µs. 1, 2, 5, 10, 20, 50, 100, 200, 500ms. 1, 2, 5, 10, 20, 30 Sec, 1 Min. 1µs to 1 min with internal RAM, 1ms to 1 min using other storage. |
| PC Interface | USB 2.0 Type B Connector, Ethernet, web server, FTP, NTP or DHCP Client functions. |
| Scaling Functions | Measured value can be converted to the specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain) |
| Display | 7″ wide TFT colour LCD. Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values |
| External Dimension | 260 x 161 x 83mm (with the cover) |
| Weight | 1.7Kg (with cover but excluding AC adapter and battery) |
GL980
£4,295.00
B-569
£185.50
B-514
£65.00
B-513
£110.00
