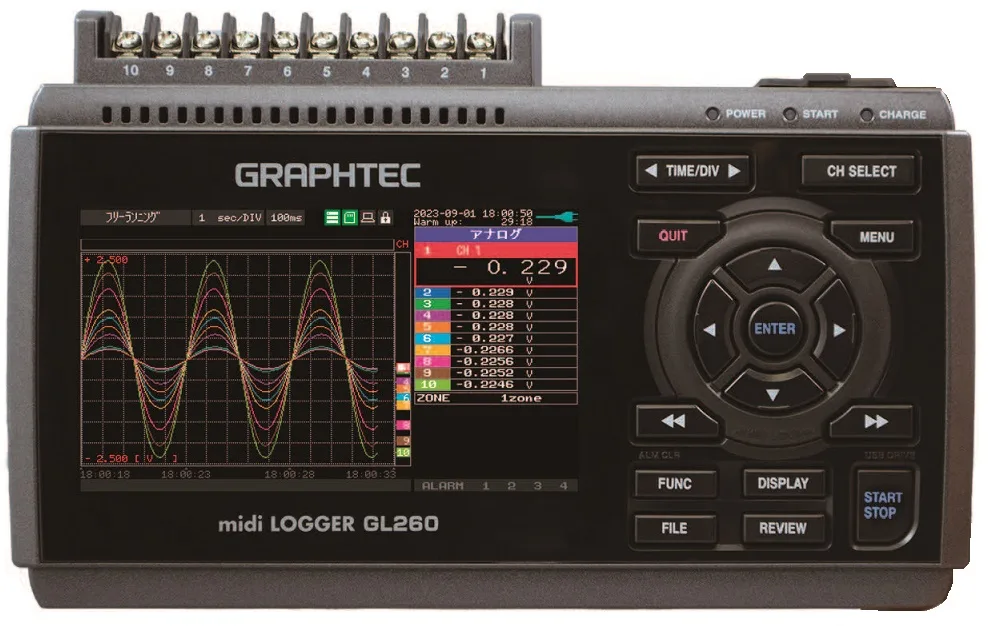

The GL260 Data logger is a direct replacement for the GL240 and now incorporates a wireless connection to the G-Remote Cloud Server and new features including the Alarm history and channel to channel calculation functions. With 10 fully isolated multi-function inputs, large internal 8GB Flash memory and a port for an external USB stick memory, this logger has significantly more memory than it predecessors and now includes a memory loop function, plus includes dual SD slots suitable for 32GB SDHC memory cards or wireless adaptor allowing for integration with the GL100-WL remote units.
| Number of Analog Inputs | 10 Channels |
| Measurement Ranges | mV: 20, 50, 100, 200, 500mV. V: 1, 2, 5, 10, 20, 50V and 100V. Temperature: Thermocouples K, J, E, T, R, S, B, N, W. Humidity: 0-100%, with optional sensor, B-530). |
| Scan Speed | 10ms to 1 hour (10ms to 50ms: voltage only). Minimum interval per channel. |
| PC Interface | USB 2.0, WLAN (using B-569 option) |
| Scaling Functions | Measured value can be converted to the specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain) |
| Display | 4.3″ WQVGA TFT colour LCD. Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values |
| Display Language | English, French, German, Chinese, Korean, Russian, Spanish, Japanese. |
| Operating Environment | 0-45°C, 5-85%RH. (0 to 40°C with battery pack, 15 to 35°C when charging) |
| Power Consumption | Max 36VA |
| External Dimensions | 188 x 117 x 42mm (excluding projections) |
| Weight | 500g (excluding AC adapter and battery) |
The GL260 can be fitted with the B-568 Wireless LAN adaptor to allow the GL260 to be connected to a single GL100-WL unit for a remote wireless sensor. The GL260 will now take in direct information from the remote GL100-WL unit. The measured value by the GL100-WL will appear in a single file along with the measurement value from the GL260 main inputs.
The Wireless LAN adaptor will also allow the GL260 to be connected to smart devices & PC to allow for the device to be remotely controlled and accessed remotely.
A GL260 can be connect to up to 5 GL100-WL’s.
We can supply your GL260 data logger in a fully customised portable carry case. Options available include a rechargeable battery, fully pre-wired to bulkheads, thermocouple sockets, and fully configured by our technicians to your specific requirements.
Contact our sales team to discuss your application.
GL260
£1,020.00

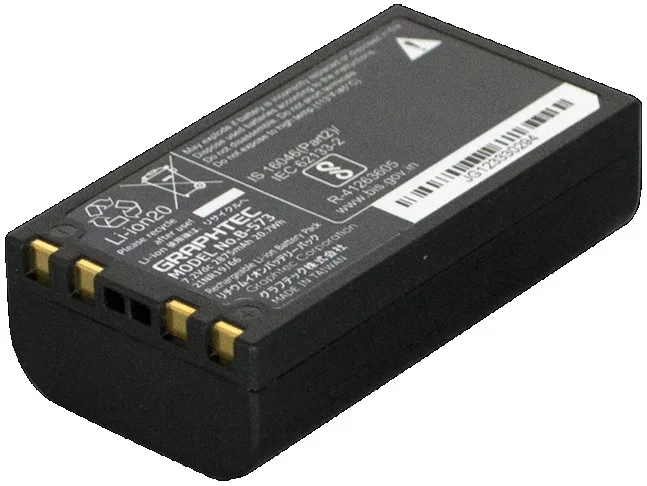

B-573
£195.00
B-568
£195.00

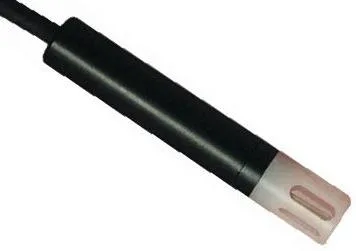

B-530
£450.00

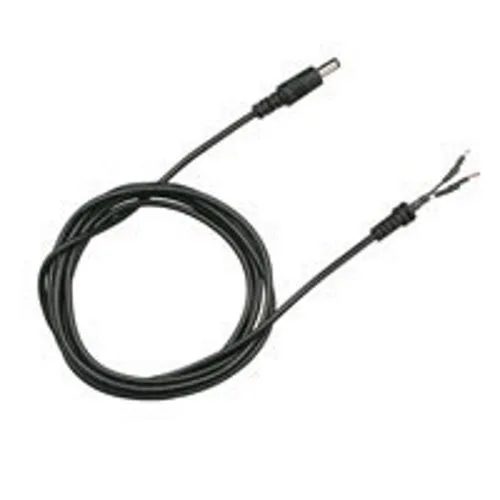

B-514
£65.00
