GL260 Data Logger

Description

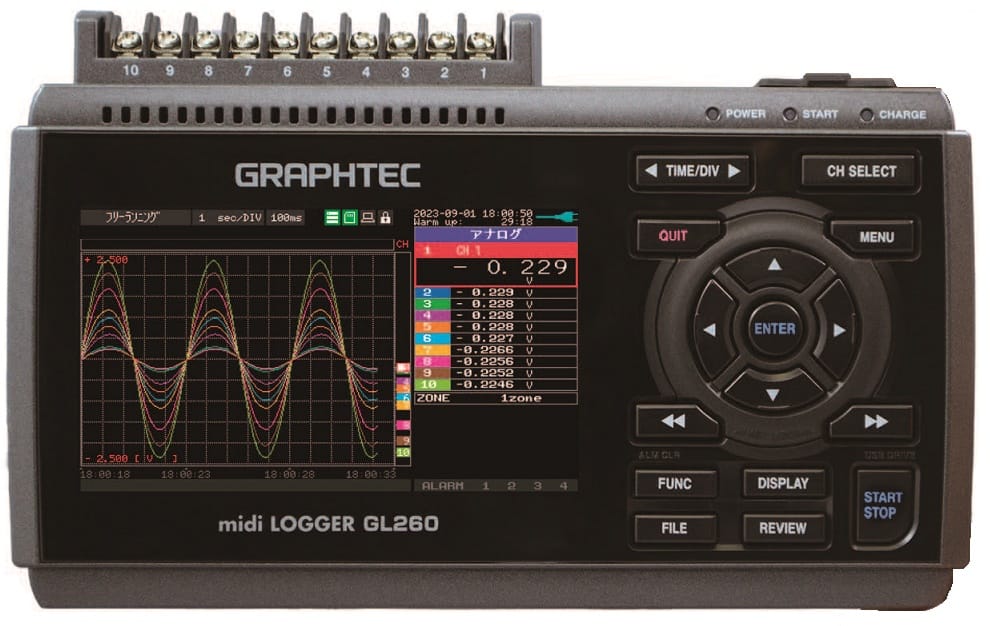

The Graphtec GL260 is a compact, 10-channel standalone midi data logger engineered for high-precision voltage, temperature, and humidity monitoring. As the direct successor to the previous generation GL240, it introduces significant performance upgrades, including an expanded 8GB internal flash memory, a high-visibility 4.3-inch color TFT display, and a maximum sampling rate of 10ms. Equipped with fully isolated inputs to prevent channel-to-channel interference, the GL260 is optimised for demanding R&D and industrial applications, ranging from Electric Vehicle (EV) battery testing to long-term environmental climate research. With the addition of the optional B-568 wireless LAN adapter, users can leverage the G-Remote cloud service for seamless remote data access and real-time monitoring from any location. The B-568 can also be used to interface with the GL100 remote loggers.

Features

  • 10 isolated multi function inputs. (Voltage Temperature or humidity)
  • High Resolution 4.3″ colour LCD display
  • Easy to use keypad menu system
  • Enhanced Channel to Channel Calculation Function
  • Alarm History Function
  • 2 SD Memory Card Slots (Suitable for up to 32GB SDHC Type memory cards
  • 8GB SD Memory card installed in first SD Slot.
  • Memory Loop Function
  • Optional Wireless LAN connection via SD Slot.
    • Connect the GL260 to a PC to transfer data or monitor data in real time
    • Connect the GL260 to a GL100-WL unit, max 40m range.
    • Remote monitoring of GL260 using LAN access point.
    • Remote monitoring of GL260 via Internet using router with dynamic DNS service
  • Optional battery for measurement in remote areas.
  • Record data directly to USB data stick
  • Free software to review / analyse data.



Specifications

Number of Analog Inputs 10 Channels
Measurement Ranges mV: 20, 50, 100, 200, 500mV.
V: 1, 2, 5, 10, 20, 50V and 100V.
Temperature: Thermocouples K, J, E, T, R, S, B, N, W.
Humidity: 0-100%, with optional sensor, B-530).
Scan Speed 10ms to 1 hour (10ms to 50ms: voltage only). Minimum interval per channel.
PC Interface USB 2.0, WLAN (using B-569 option)
Scaling Functions Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain)
Display 4.3″ WQVGA TFT colour LCD.
Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values
Display Language English, French, German, Chinese, Korean, Russian, Spanish, Japanese.
Operating Environment 0-45°C, 5-85%RH. (0 to 40°C with battery pack, 15 to 35°C when charging)
Power Consumption Max 36VA
External Dimensions 188 x 117 x 42mm (excluding projections)
Weight 500g (excluding AC adapter and battery)





Combining GL260 and GL100-WL

The GL260 can be fitted with the B-568 Wireless LAN adaptor to allow the GL260 to be connected to a single GL100-WL unit for a remote wireless sensor. The GL260 will now take in direct information from the remote GL100-WL unit. The measured value by the GL100-WL will appear in a single file along with the measurement value from the GL260 main inputs.

The Wireless LAN adaptor will also allow the GL260 to be connected to smart devices & PC to allow for the device to be remotely controlled and accessed remotely.

A GL260 can be connect to up to 5 GL100-WL’s.

Customised Portable Enclosure

We can supply your GL260 data logger in a fully customised portable carry case. Options available include a rechargeable battery, fully pre-wired to bulkheads, thermocouple sockets, and fully configured by our technicians to your specific requirements.

Contact our sales team to discuss your application.
