GL100 Petit Logger

The GL100 Petit Logger is a new compact data logger with a wireless LAN version for easier integration to your GL260 or GL860 data loggers. The GL100 allows users to switch sensors and terminals for measuring a wide range of different input parameters. Each GL100 includes an internal memory of 4.9MB with a Micro SD card slot. The display is a backlit monochrome with 128Ç?64 dot resolution displaying measured values and settings. Recorded data is not displayed on the main unit; Captured data can only be displayed on PC using the included application software. The logger can be powered by two AA batteries or USB bus power. Dimensions 66 x 100 x 27mm. The GL100-WL uses radio waves in the 2.4GHz band and is suitable for use in the EU, USA, Canada and Japan. The loggers will also work with Smart phones using Android OS 4.1 or iOS 7 (app available from Android and Apple’s App stores).

Need help finding the right product?

Downloads

Description

Description

The Graphtec GL100 Petit Logger is the industry’s most versatile compact data logger, offering a modular ‘exchangeable head’ system to suit any monitoring task. Available in Wireless (GL100-WL) and Standard USB (GL100-N) versions, this pocket-sized device can capture everything from CO2 levels and UV intensity to AC current and temperature. Whether used as a standalone monitor for pharmaceutical cold chains or as a wireless remote satellite for the Graphtec GL860 system, the GL100 provides seamless data access via microSD storage or the G-Remote cloud service.

Features

PC and smart mobile device software available
Industry-specific software: agriculture, logistics, power
Wireless access for GL100-WL model
Built-in memory 4.9MB
microSD memory card port
- microSD card sold separately
Smartphone application with WLAN version (Android & iOS)

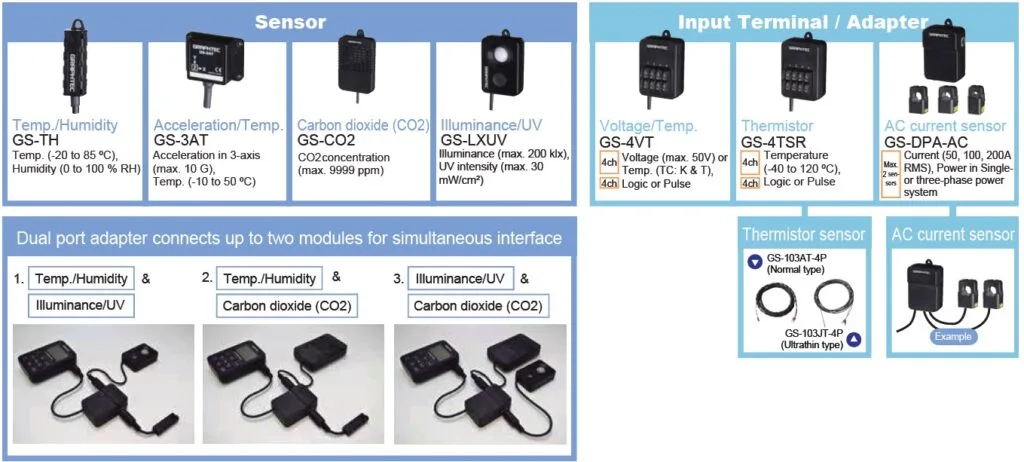

Sensor available:
- Temperature & humidity sensor
- Acceleration & temperature sensor
- Light & UV sensor
- CO2 sensor
- AC current clamps
- 4 channel voltage & temperature input terminal module
- 4 channel thermistor sensor input terminal module

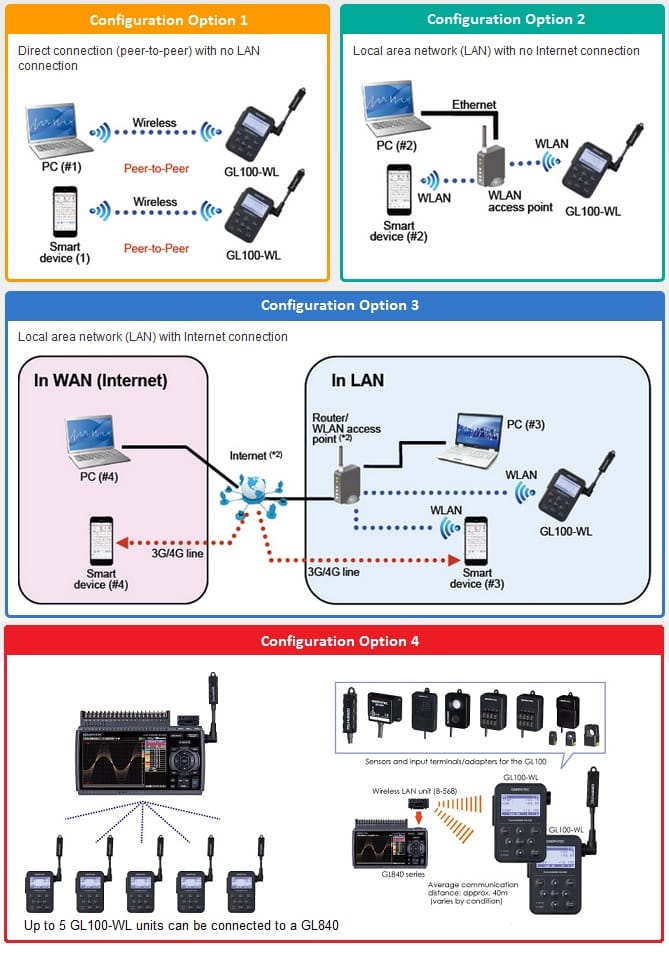

Configuration options for the GL100-WL logger.

Product

Ref

Price

Product Description

GL100-N

£295.00

GL100-N Petit logger main unit. 4.9MB internal memory and micro SD memory card slot, (max file size 1.9GB). Backlit monochrome display (128Ç?64 dot resolution) displays measured values and settings. Power Supply 2 x AA Alkaline batteries or USB bus-power. Dimensions 66 x 100 x 27mm.

GL100-WL

£395.00

GL100-WL Petit logger main unit with Wireless LAN connectivity. 4.9MB internal memory and micro SD memory card slot, (max file size 1.9GB). Backlit monochrome display (128Ç?64 dot resolution) displays measured values and settings. 2.4GHz wireless frequency for remote connection to wireless LAN, GL240, GL840 or Smart phone devices. Power Supply 2 x AA Alkaline batteries or USB bus-power. Dimensions 66 x 100 x 27mm.

GS-DPA

£95.00

GS-DPA Dual Port Adapter Input Module. Allows for 2 sensors to connect to a single GL100. Compatible sensors are GS-TH (Temp & RH sensor), GS-LXUV (Illumination/UV sensor) and GS-CO2 (CO2 sensor).

GS-4VT

£295.00

GS-4VT 4-Channel Voltage and Temperature terminal. Input options: Voltage (ranges of 20mV up to 50V); Temperature (Thermocouple range: K type -200 to 1370°C, T type -200 to 400°C); Logic or Pulse inputs. 22 Byte record length, 81 days logging to internal memory of GL100 unit with a 30 second sampling interval. Power consumption of the GS-4VT can be high and therefore will reduce the operating time for a battery powered GL100.

GS-4TSR

£145.00

GS-4TSR 4-Channel thermistor, logic/pulse measurement terminal. Input options: Temperature (Thermistor range: -40 to 120°C); Logic or Pulse inputs. 38 Byte record length, 46 days logging to internal memory of GL100 unit with a 30 second sampling interval.

GS-TH

£105.00

GS-TH Temperature and Humidity Sensor. Temperature Range: -20 to + 85°C, Humidity Range: 0 to 100%RH. The temperature sensor measures the change in capacitance of the conductivity caused by moisture absorption. Usage in an environment with a large quantity of dust, fumes and other organic compound floating about will cause large measurement deviations. Also allows for the calculation of accumulated and dew point temperatures. 14 Byte record length, 127 days logging to internal memory of GL100 unit with a 30 second sampling interval.

GS-3AT

£225.00

GS-3AT Acceleration and temperature sensor. Acceleration, in 3-axes, range max 10g. Temperature -10 to 50°C. The sensor can provide Peak (largest value each interval), average (mean value during interval) and RMS (root mean square value) acceleration readings at set sampling rates of 500ms up to 60 mins (Sub-sampling interval is fixed at 5 ms). 12 Byte record length, 148 days logging to internal memory of GL100 unit with a 30 second sampling interval. Pre-triggering allows the unit to start or stop logging with at specific values, starging at the set memory size percentage. 4 x M3 mounting holes allow for secure mounting to a surface or object. Dimensions: 51 Ç? 36 Ç? 19.5 mm (not including protruding parts), weight: 64g.

GS-LXUV

£195.00

GS-LXUV Illuminance and Ultra Violet intensity measurement. Illuminance Range: 0 to 200 kLux, UV intensity Range: 0 to 30mW/cm² with a 1ms response time. Also allows for the calculation of accumulated Illuminance and UV intensity. Accumulated illuminance 0 to 99,999kLuxh. 16 Byte record length, 111 days logging to internal memory of GL100 unit with a 30 second sampling interval.
