The FTR switch mode power supply provides a fixed stabilised output of 24vDC with a maximum power output of 3 Watts from a 85-250vAC power supply. The FTR power supply provides an isolated power supply and is suitable for powering instruments such as 4-20mA field transmitters and other devices requiring a 24vDC power supply. The FTR power supply is designed for DIN Rail mounting and wiring via screw terminals. This power supply is ideal for low power installations with a maximum current of 125mA.
FTR series of switching power supplies of regulated and insulated voltages are targeted to industrial electrical devices. Built with advanced technology, they are appropriated to be installed in electrical panels since they have the reliability and robustness demanded from these environments.
Specification
| Power Supply: | 100-240vAC 50/60Hz |
| Output: | 24vDC nominal |
| Output Power: | 3W, 125mA |
| Stability: | ±2% |
| Indication: | Power ON LED |
| Isolation: | 2500V for 1 min |
| Terminals: | Screw Clamp, 0-14 to 4.0 sq.mm |
| Dimensions: |
IP40 grey polymide enclosure, 19 x 72 x 72 mm |
| Installation: | TS32 and TS35 DIN Rail |
| Connections: |

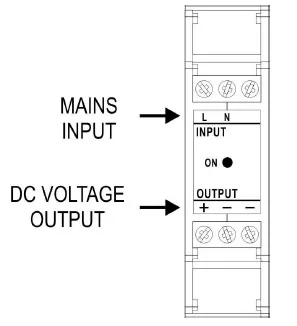

Line and Neutral connections to the top of the unit, positive and 2 negative output connections on the bottom. |
| Protection: | Short Circuit Protected |
| Environment: | 0-55°C, 20 to 85% RH |
8818040031
£25.83
