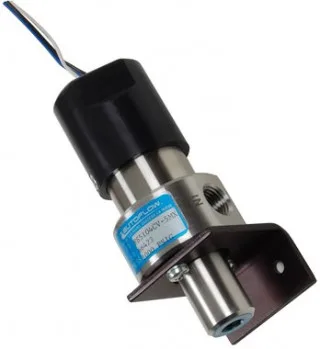

Description
Features
- Fully Field Adjustable
- Operates in any Orientation
- Operating Temperature -40°C to +105°C (-40 to +220F)
- Operating Pressure 1000 psig (68 Bar)
- 316 Stainless Steel Construction
- Shock and Vibration Resistant
- Contamination Resistant
- ¼” & ½” NPT Connections
- Optional Explosion Proof
- CE compliant
Specifications
| Switch Assembly: | SPDT UL 61760 |
| Voltage: | 100vDC, 120vAC Max |
| Contact Rating: | 3 Watts resistive max continuous |
| Current Switching: | 0.25 Amp max continuous |
| Power: | 3.30VA Max – 100vDC 2.46VA max – 120vAC |
| Contact Resistance: | 0.20 Ohm Max |
| Fluid Media: | Gases (including corrosive) |
| Body & Wetted Parts: | 316 Stainless Steel, Hastelloy, Monel or Titanium |
| Spring Material: | Inconel X750 |
| Max Pressure: | 207 Bar (3,000 psig) |
| Max Ambient Temperature: | +104°C (220F) |
| Filter: | 40 micron |

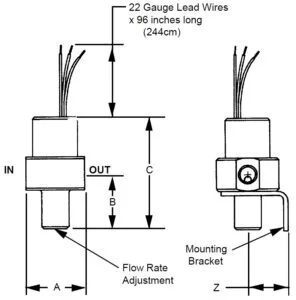

Dimensional Drawing
| Series | Pressure Ports | Dimensions | Adjustable* Flow Rate |
||||
| A | B | C | Z | ||||
| FS5104 | ¼” NPT | 1.63 | 1.56 | 3.12 | 1.13 | -5 | 1 slpm – 65 slpm |
| -6 | 1 slpm – 120 slpm | ||||||
| FS5108 | ½” NPT | 2.25 | 2.24 | 3.89 | 1.63 | -8 | 1 slpm – 325 slpm |
| -9 | 1 slpm – 700 slpm | ||||||
