ETW Wired Lift Link Load Cell System

Description

The ETW series of wired Lift Link Load Cells has been specifically developed for the measurement of cable tension and under hook crane/lifting gear weighing. The weight and overall height of the ETW series is much lower than that offered by other manufacturers, therefore reducing the overall headroom required for the installed system. The ETW is environmentally sealed to IP65 to give excellent waterproofing properties for use outside in arduous conditions. During operation the ETW link is connected via screen cable to the TR150 battery powered display. The system is supplied calibrated in the required engineering units and is simple to operate using the five front panel keys. 1 or 2 channel versions are available which enables the system to read in different engineering units i.e. lbs/kg, Tonnes/kN, if required. Readout in tonnes only is standard.

Features

  • Capacities 1 tonne to 100 tonnes.
  • Designed for use with standard lifting shackles
  • Link & display sealed to IP65
  • Robust construction
  • Low weight compared to other manufacturers models
  • Supplied with rugged carry case and 15m connector cable
  • Units supplied calibrated
  • 3 Year warranty

Options

  • In-situ charger for worldwide use
  • Re-chargeable alkaline batteries +UK plug-in charger (TR150 only)
  • Bow or D type Shackles
  • Higher capacity versions available on request
  • TEDS Available for Plug & Play with TEDS Enabled Instrumentation, eg. TR150 Displays

Applications

  • Lifting Gear Weighing
  • Cable Tension Measurement
  • Under-Hook Crane Weighing
  • In-Line Force or Load Measurement
  • Boat Weighing
  • Car Weighing
  • Lifting Gear Weighing
  • In-line Weighing Applications
  • Crane Monitoring

Specifications

Standard Capacities:
 0-1, 0-2, 0-5, 0-12, 0-25, 0-50, 0-100 Tonnes
Accuracy: <±0.25% Rated Output
Operating Temperature: -10 to +50°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 500% of Rated Capacity
Safety Factor: 5:1
IP Rating: IP65
Cable: 15m cable with Locking Connector
Construction: Anodised Aluminium Alloy

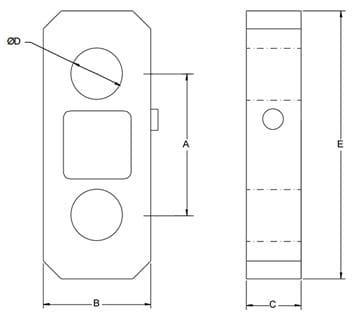

Dimensions

Capacity (Tonnes)
 A B
 C

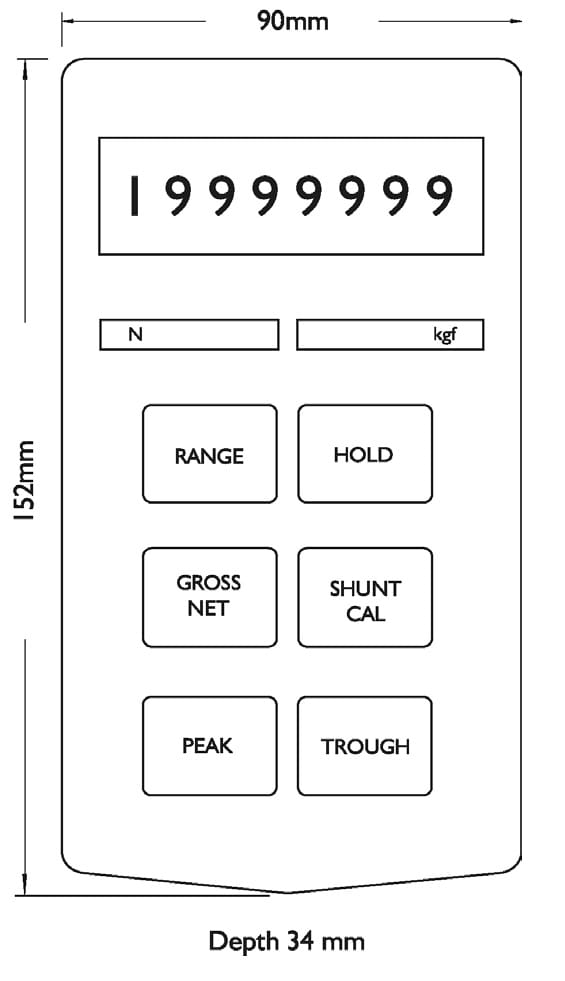

 ØD E Weight   Specifications TR150
0-1 137 105 41.5 30 193 1.5Kg Display: 7-digit LCD (±9999999) 10.2 mm high)
0-2 137 105 41.5 30 193 1.5Kg Resolution: 1:250K @ 1Hz update, 1:65K @ 10Hz update.
0-5 137 105 41.5 30 193 1.5Kg Accuracy: <0.005% Full Scale
0-12 149 105 41.5 38 239 2.0Kg Operating Temperature: -10 to +50°C
0-25 160 125 55 53 284 4.5Kg Internal Battery: 2 x AA Alkaline (Rechargeable Optional)
0-35 175 138 55 60 335 5.5Kg Battery Life: 40 Hours (with 350Ohm sensor)
0-50 198 150 75 73 375 10.0Kg Keypad: Tactile with rim embossed keys
0-100 275 220 120 100 500 28.0Kg Weight: 260g



TEDS Chip option will allow the TR150 display to be replaced, without the need for configuration or calibration.
