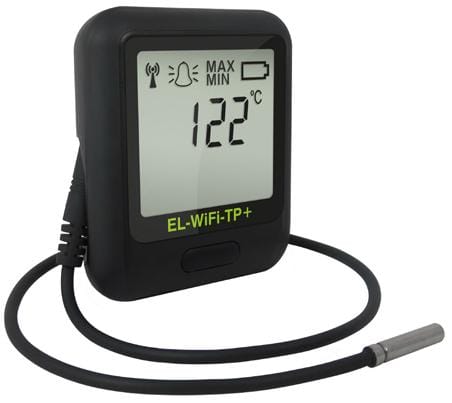

EL-WiFi-TP Thermistor Probe Data Logger

The EL-WiFi-TP is a wireless data logger with an external thermistor probe. The logger transmits the collected temperature readings via a WiFi network back to a PC for monitoring. The internal memory can retain up to 1 million data set entries between downloads. Measurement ranges are -40 to +125°C (-40 to +257F). The logger has a rechargeable lithium polymer battery that can be recharged via the USB port. Units are supplied with removable thermistor probe, wall bracket and micro USB lead. The EL-WiFi-TP+ has an improved accuracy and resolution display.

Need help finding the right product?

Description

The EL-WiFi-TP is a wireless data logger that can provide remote monitoring of temperature, which can be accessed via a WiFi network. A single network of 256 loggers can be built with each unit sending data back to the PC at pre-defined intervals or to a PC remotely connecting to the loggers via WiFi to download the logged data as required. The data logger will retain up to 1 million data set entries between downloads and the internal rechargeable battery can last up to 1 year between recharging.

Features

  • Temperature data logging via a removable thermistor sensor
  • Temperature -40 to +125°C
  • Wireless connectivity to PC via WiFi
  • Integrated display
  • Easy set up using the PC software
  • View and analyse multiple sensors via software, including graphing and historical data
  • Internal memory for up to 1 million readings.
  • Rechargeable internal Lithium polymer battery
  • Low battery indicator
  • Configurable high and low alarms with indicator
  • WiFi connection indicator
  • USB port used for recharging
  • Supplied with removable Thermistor probes with 0.5m cable, wall bracket and micro USB lead
  • Main unit IP55, Thermistor probe IP67.

Product

Ref

Price

Product Description

EL-WIFI-TP

£109.99

EL-WiFi-TP Wireless Temperature Data Logger with external thermistor probe. Temperature range is -40 to +125°C with a ±0.5°C accuracy and a resolution of 0.1°C. Internal rechargeable Lithium polymer battery with micro USB port for recharging. Units are supplied with wall bracket, micro USB lead, battery and removable thermistor probe with 0.5m cable.

EL-WIFI-TP+

£144.98

EL-WiFi-TP+ Wireless Temperature Data Logger with external thermistor probe. Temperature range is -40 to +125°C with a ±0.1°C @ -10 to 70°C (±0.3°C @ -40 to +125°C) and a resolution of 0.01°C. Internal rechargeable Lithium polymer battery with micro USB port for recharging. Units are supplied with wall bracket, micro USB lead, battery and removable thermistor probe with 0.5m cable.

EL-WIFI-PROBE-1M

£109.97

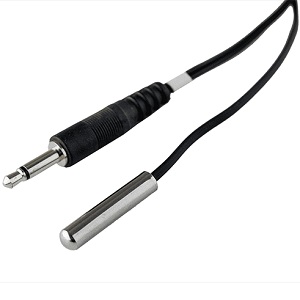

1M Thermistor probe suitable for use with the EL-WiFi-TP datalogger.

EL-PROBE-EXTENDER-5M

£13.84

5m Thermistor Probe Extension Cable. Male 3.5mm Jack to Female 3.5m Socket with Gold Plated Connections to limit signal loss. Suitable for use with EL-P-TP, EL-P-TP+ and EL-P-VAC Thermistor Probes
