Description

Features

• Temperature measurement ranges from -10 to +50°C up to -200 to +1,350°C
• USB interface for set-up and data download
• User-programmable alarm thresholds
• Bright LED indication
• Replaceable internal battery

Specifications

Part No	Picture	Function	Measurement Range	Memory
EL-USB-1		Temperature Monitoring	-35 to +80°C	16,382 Readings
EL-USB-1-PRO		Temperature Monitoring Extended Measurement Range	-40 to +125°C	32,510 Readings
EL-USB-1-RCG		Temperature Monitoring Rechargeable Battery	-20 to +60°C	32,510 Readings

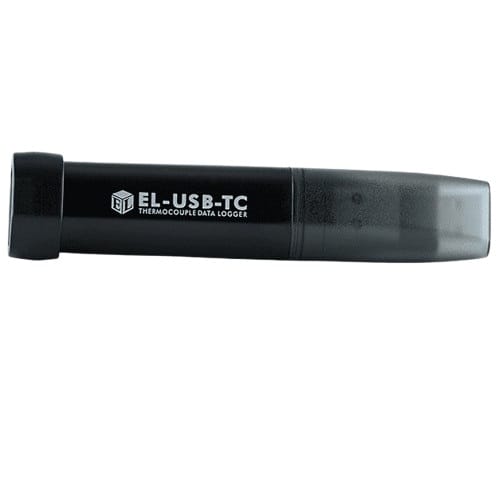

EL-USB-TC		Temperature Monitoring Using External Thermocouple	K-Type: -200 to +1350°C J-Type: -200 to +1190°C T-Type: -200 to 390°C	32,510 Readings
EL-USB-LITE		Low cost Temperature Monitoring	-10 to +50°C	4,080 Readings

Each logger is supplied with a battery and EasyLog USB control software. Logged data is stored in a non-volatile memory and is not lost when the battery is removed or has ran down. A bright LED will flash when a preset alarm level has been exceeded. The software allows the user to configure the following parameters: Logger name; Logging rate; Alarm levels; and start and stop date and time. The software also allows downloaded data to be graphed, printed and exported to other applications.
