Description
Features
- Measurement Range: -10 to 50°C (14 to +122F)
- Fixed 30 minutes sampling rate
- USB interface for set-up and data download
- User-programmable alarm thresholds
- EL-DataPad handheld programmer compatible
- Status indication via red, green and orange LEDs
- Supplied with replaceable internal Lithium battery and Windows control software

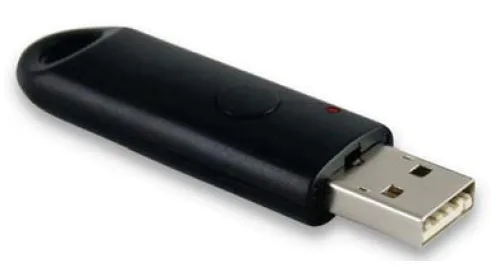

The EL-USB-LITE is a low cost USB temperature data logger with a measurement range of -10 to +50°C (14 to +122°F). The data logger can store up to 4,080 readings and is supplied with a replaceable CR1620 coin cell Lithium battery, allowing the unit to log data continually for up to one month at the 30 minute logging interval. The status of EL-USB-LITE is indicated by red and green LEDs.
Data logger configuration software is supplied, allowing the user to easily set-up the data logger. Selectable parameters include measurement units, high & low alarms and start-time. The logged data stored in EL-USB-LITE is downloaded via the configuration software and integrated USB connection. Once downloaded data can be graphed, printed or exported to other applications.
Specifications
| Measurement Range: | -10 to 50°C (14 to 122°F) |
| Internal Resolution: | 1°C (2°F) |
| Accuracy: | ±2.5°C (±4.5°F) |
| Memory: | 4080 readings |
| Logging Interval | 30 minute (fixed) |
| Alarm Thresholds: | 2 (user programmable) |
| Start Date/Time: | Selectable in software |
| Status Indicators (LEDs): | Red/green alarm status indication via push button |
| Power: | 3V Lithium Coin Cell Battery (CR1620) |
| Battery Life: | 1 Month |
| Dimensions: | 68 x 18.5 x 9.4mm |
| Operating Temperature Range: | -10 to +50°C (14 to 122F) |
The EL-USB-LITE temperature data logger is suitable for a wide variety of applications, these include but are not limited to:
- Room temperature monitoring
- Environmental temperature monitoring
- Pharmaceutical fridge monitoring
- Temperature controlled transportation
- Food & drink storage
- Building & site monitoring
The link below will take you to the main EL-USB Temperature Data Logger page with various other USB temperature loggers. Including units with display, robust stainless steel housing and internal batteries for up to 3 year logging.
