Description

Sold in packs of 10 data loggers, the EasyLog Cold Chain data logger comes pre-configured with 10 minute sample rates, plus High and Low Alarm levels. All you need to do is simply press the  button until the Green LED lights up to start logging. No alarms will be triggered in the first 30 minutes to allow the logger to settle at the monitored temperature. During a logging session, pressing the  button will light up the status LEDs to give a quick indication as to whether the temperature has exceeded an alarm condition at any point. The logged data will show that this was done and when. Once your session has been completed, tear open the IP67-rated plastic wallet to reveal the USB connector and plug it in to your PC. Use the free EasyLog CC software for Windows to download and graph the data, and then prime your logger for its next use. EL-PDF-1 units require no software and operate as USB memory drives with data available as a PDF file.

Custom configurations are also available for units with different alarm thresholds. Please contact us to discuss your requirements.

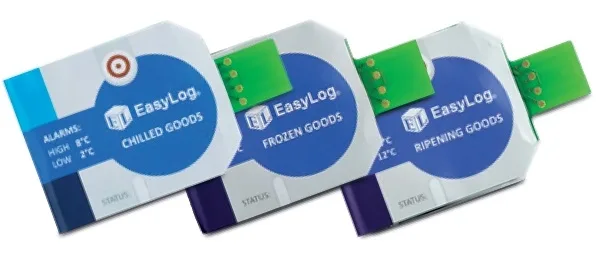

EL-CC-1: Temperature devices for monitoring Chilled Goods, Frozen Goods and Ripening Goods.

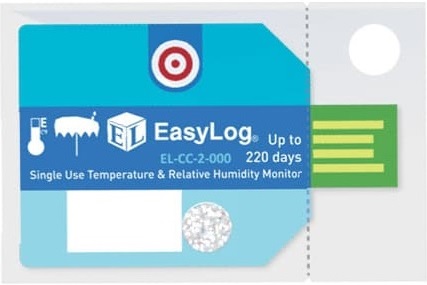

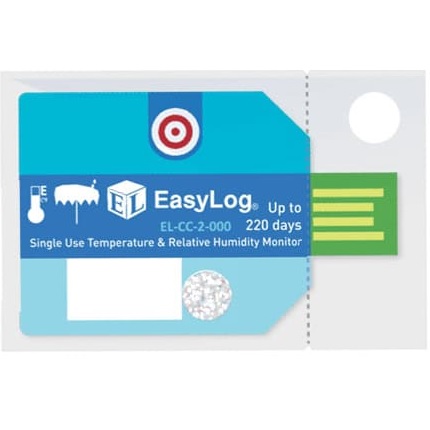

EL-CC-2: Temperature and humidity devices for monitoring Pharmaceutical, Blood Products and Food Goods.

EL-PDF-1: Temperature devices for monitoring Chilled Goods, Frozen Goods, Ripening Goods and Ambient Pharmaceutical Goods. No software required.

	Part No.	Parameters	Application	Alarm Low	Alarm Low

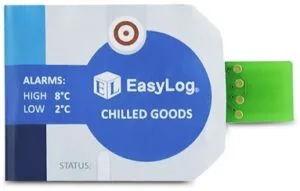

	EL-CC-1-001	Temperature	Chilled Goods	+2°C	+8°C

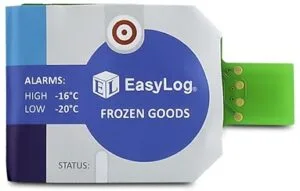

	EL-CC-1-002	Temperature	Frozen Goods	-20°C	-16°C

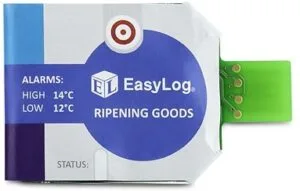

	EL-CC-1-003	Temperature	Ripening Goods	+12°C	+14°C
	EL-CC-2-001	Temp & RH	Chilled Goods	+2°C	+8°C

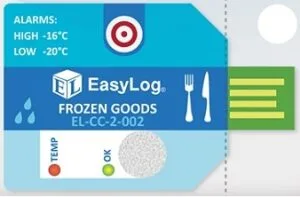

	EL-CC-2-002	Temp & RH	Frozen Goods	-20°C	-16°C

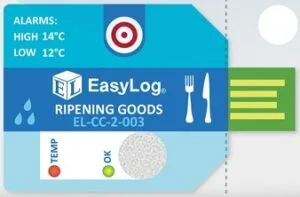

	EL-CC-2-003	Temp & RH	Ripening Goods	+12°C	+14°C

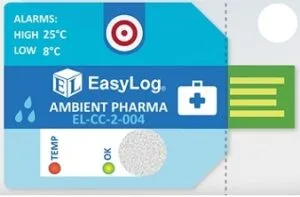

	EL-CC-2-004	Temp & RH	Ambient Pharma	+8°C	+25°C

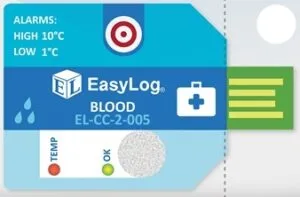

	EL-CC-2-005	Temp & RH	Blood Transport	+1°C	+10°C

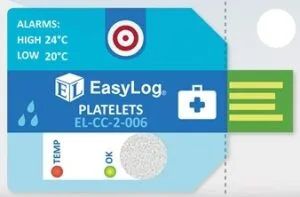

	EL-CC-2-006	Temp & RH	Platelets Transport	+20°C	+24°C

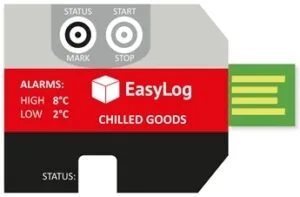

	EL-PDF-1-001	Temperature	Chilled Goods	+2°C	+8°C
	EL-PDF-1-002	Temperature	Frozen Goods	-20°C	-16°C

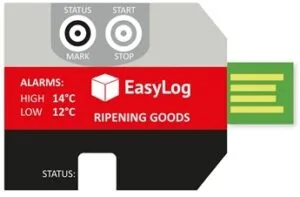

	EL-PDF-1-003	Temperature	Ripening Goods	+12°C	+14°C

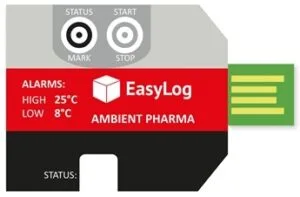

	EL-PDF-1-004	Temperature	Ambient Pharma	+8°C	+25°C
