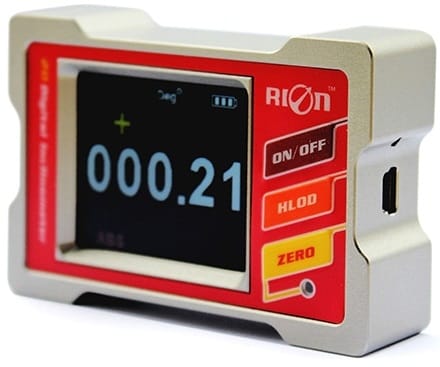

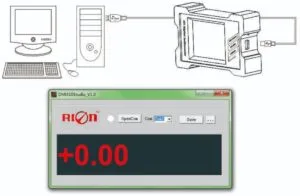

The DMI410 is a single axis inclinometer with USB connection and digital display for real-time inclination monitoring. Units include a built-in rechargeable battery suitable for up to 8 hours standalone operation from 3 hours charging, or infinite operation when powered by the USB port. The USB port may also be connected to a laptop or PC for synchronised display and to store data. The housing is a rugged Aluminium alloy with a double magnetic mounting option and IP54 rating. Range ±180° with an accuracy of 0.05° and 0.01° resolution.
The DMI410 series is a ready to use out of the box inclinometer with no complex configuration or calibration. Fitted with strong magnets on both the side and top for mounting to metal surfaces for quick mounting and re-positioning. The display and internal rechargeable batteries allow for portable applications and up to 8 hours operation. The inclinometer uses the Y-axis to compensate the X-axis during the measurement process to ensure the single-axis accuiracy, irrespective of any Y-axis movement.
| Parameters | DMI410 |
| Measuring Range | ±180 ° |
| MM measuring Range | ±999.9mm |
| Measuring Axis | Single axis |
| Angle Measuring Accuracy | ±0.05 ° |
| Angle Measuring Resolution | 0.01° |
| MM Measuring Accuracy | 0.9mm |
| MM Measuring Resolution | 0.17mm |
| LCD Visible Area Size | 40 x 32mm |
| Working Temperature | -10 to +70? |
| Working Humidity | ≤85%RH |
| Power Supply | 3.7V Charging Lithium battery |
| Ideal Charging Time | 3 hours |
| Battery Time | 8 hours (±0.5 hours) |
| Connect Plugin | Standard 5-Pin USB connector |
| Shock Impact | 10grmsÆ?10«?100Hz |
| Weight | 125g |
| IP Rating | IP54 |
| Housing Material | Aluminum alloy |
| Dimensions | 83 x 53 x 19.2mm |

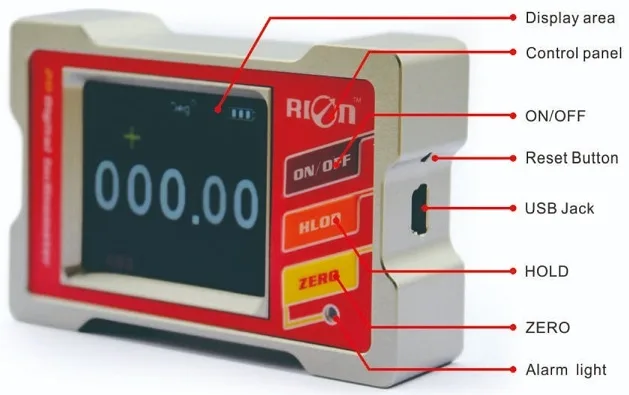

| ON/OFF: | Press for 2 seconds to turn on/off |
| HOLD: | Hold recording data |
| ZERO: | Switch between absolute and relative measurements |
| HOLD&ZERO: | Press HOLD until small lock mark appears, then press ZERO to switch between angle measurement and length measurement. |
| ON/OFF&HOLD: | Press ON/OFF until screen turns black, then HOLD to proceed with precision calibration |
| ON/OFF&ZERO | Press ON/OFF until screen turns black, then ZERO to proceed with Zero calibration |
| Reset Button: | Press it when the device crashes, or keys no longer operate |
| USB Jack: | Used for recharging, external data transfer to PC |
| Alarm Light: | Lit when recharging, off when charging completed |
DMI410
£295.28
