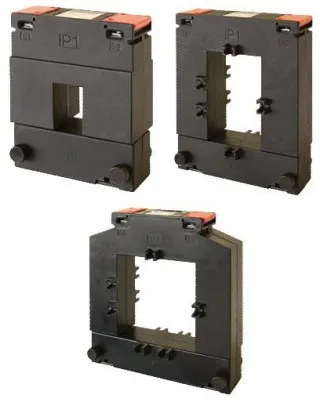

A range of split core transformers designed for installation into existing plants where removal of busbars/cable lugs prevent installation of standard current transformers. Suitable for monitoring single phases and can be used with the Conto D4, ADM and PRO range of Energy Meters.
Specifications
| Type | DBP23 | DBP58 | DBP88 | DBP812 | DBP816 |
| Ranges | 100 to 400A | 250 to 1000 A | 250 to 1000A | 500 to 1600A | 2000 to 5000A |
| Window | 20 x 30mm | 50 x 80mm | 80 x 80mm | 80 x 120mm | 80 x 160mm |
| Terminals | M4 Screws | M5 Screws | |||
| Housing | Self Extinguishing Hylon IEC185 | ||||
| Weight | 0.75Kg | 0.9Kg | 1.05Kg | 1.25Kg | 3.5Kg |
| Dimensions (mm) | 109 x 89 x 40 | 145 x 115 x 51 | 153.8 x 145 x 51 | 195.8 x 145 x 51.6 | 250 x 186 x 51.4 |
All current transformers have hinged terminal covers and are supplied with push-in fixing feet and bus bar fixing clamps.
DBP23100/5A
£19.23
DBP23150/5A
£19.23
DBP23200/5A
£19.23
DBP23250/5A
£19.23
DBP23300/5A
£19.23
