Stainless Steel combined Torque and Axial Forces Load Cell. Ranges 1kN to 250kN, output 1.5mV/V to 3.0mV/V (refer to datasheet), accuracy 0.05%, sealed to IP65.
The DBBSS/TSF dual axis force and torque sensor is a compact and accurate transducer designed to measure both static torque and axial load in clockwise and counter-clockwise directions/tension and compression respectively. The unique design of the 2-axis force and torque sensor ensures that crosstalk between the axes is minimised, with less than 1% being typical, whilst maintaining an excellent accuracy of better than 0.1% of rated capacity in both torque and force modes.
The DBBSS/TSF 2 axis force and torque sensor series is used widely in the geotechnical and materials testing sectors where it is employed as a central component on pieces of high accuracy analytical test equipment, although its design lends itself to a huge range of other applications where dual-axis measurement is required. The nature applications where the 2 axis force and torque sensor may be used is likely to require customisation in terms of size, capacity and the configuration of mounting holes or fixtures, and so we are pleased to say that design modifications to fit the DBBSS/TSF to your application can be offered with little or no effect on cost.
| Standard Capacities:
|
0-50N/0-1Nm; 0-100N/0-2Nm; 0-250N/0-5Nm; 0-500N/0-10Nm; 0-1kN/0-10Nm; 0-2.5kN/0-25Nm; 0-5kN/0-50Nm; 0-10kN/0-100Nm; 0-25kN/0-250Nm; 0-25kN/0-500Nm; 0-50kN/0-500Nm; 0-100kN/0-1000Nm; 0-250kN/0-2500nM |
| Sensitivity: | 1mV/V Typical (0.5 typical on 0-50N/0-1Nm and 0-100/0-2Nm versions) |
| Zero Balance/Offset: | <±1.0% Rated Output |
| Non-Linearity: | Axial: <±0.05% Rated Output. Torque: <±0.10% Rated Output |
| Hysteresis: | <±0.1% Rated Output |
| Repeatability: | Axial: <±0.03% Rated Output. Torque: <±0.05% Rated Output |
| Input Resistance: | 400 nominal (Force Axis) 750 nominal (Torque Axis) |
| Output Resistance: | 350 nominal (Force Axis) 700 nominal (Torque Axis) |
| Insulation Resistance: | >5000 Megaohms @ 50vDC |
| Excitation Voltage: | 10vDC Recommended (2-15vDC Acceptable) |
| Operating Temperature: | -20 to +80°C |
| Compensated Temperature: | 0 to +70°C |
| Storage Temperature: | -20 to +80°C |
| Safe Overload: | 150% of Rated Capacity |
| Ultimate Overload: | >300% of Rated Capacity |
| IP Rating: | IP65 |
| Fatigue Life: | 108 Cycles Typical (109 cycles on fatigue-rated version) |
| Cable: | 5m, 6-Core Screened Cable via 6-pin Bayonet Lock Connector |
| Construction: | Stainless Steel and Aluminium (below 0-500N/0-10Nm. Otherwise Stainless Steel |

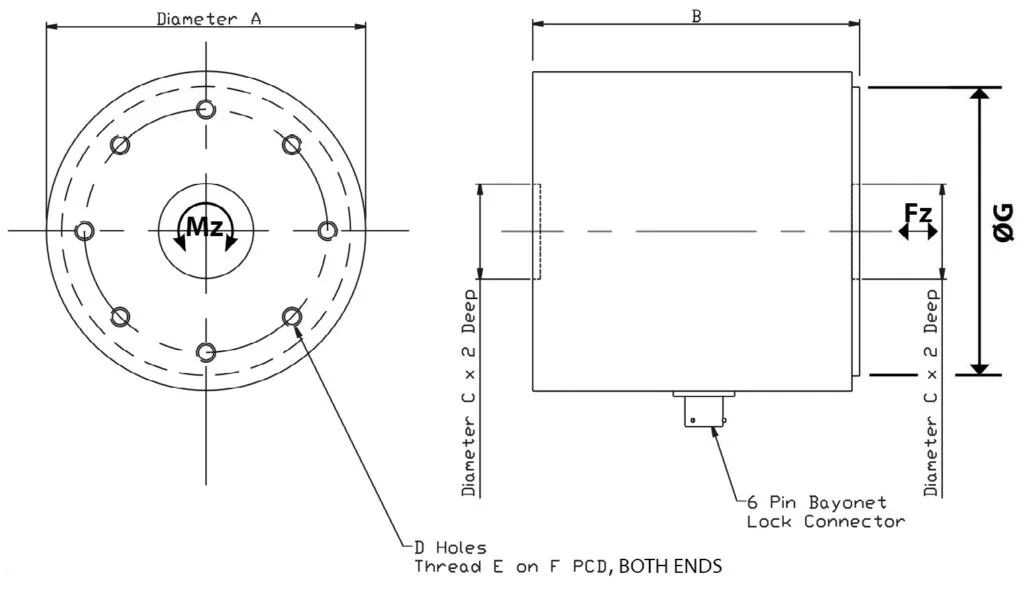

| Capacity | ØA | B |
ØC |
D | Thread E |
ØF | ØG | Weight |
| 0-50N/0-1Nm, 0-100N/0-2Nm, 0-250N/0-5Nm, 0-500N/0-10Nm | 66 | 80 | 20/H7 | 6 | M4 x 6DP | 50 | 60 | 800g |
| 0-1kN/0-10Nm, 0-2.5kN/0-25Nm, 0-5kN/0-50Nm | 84 | 86 | 25/H7 | 8 | M5 x 7DP | 64 | 76 | 3.5Kg |
| 0-10kN/0-100Nm, 0-25kN/0-250Nm, 0-25kN/0-500Nm | 86 | 120 | 25/H7 | 6 | M8 x 12DP | 60 | 78 | 4.5Kg |
| 0-50kN/0-500Nm, 0-100kN/0-1000Nm | 135 | 125 | 30/H7 | 12 | M10 x 15DP | 100 | 125 | 11Kg |
| 0-250kN/0-2500Nm | 230 | 200 | 35/H7 | 12 | M16 x 24DP | 190 | 218 | 47Kg |
DBBSS/TSF Axial Force and Load Cell
£2,499.00
