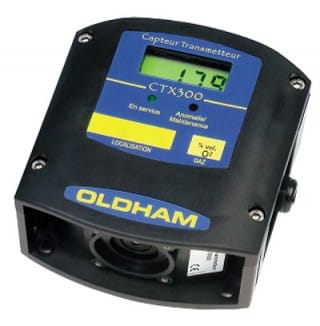

The CTX300 gas detector is designed with a robust polycarbonate housing for gas detection in safe areas of Oxygen, Carbon Dioxide, Toxic and refrigerant gases. The polycarbonate housing is very durable and is not affected by harsh environments. The CTX 300 comes equipped with pre-calibrated sensor units and allows for maintenance by a single person. Units provide a 4-20mA output for the gas levels detected and an optional display can be incorporated.
| Power Supply: | 15-32vDC |
| Output: | 4-20mA |
| Display: | Optional Back-lit display |
| Housing: | IP66 Polycarbonate |
| Dimensions: | 130 x 136 x 69mm |
| Operating Temperature: | -20 to 50°C |
Sensors Available
| Electrochemical Sensors:
|
O2, CO, H2S, NO, NO2, SO2, Cl2, H2, HCl, HCN, NH3, ETO/PO, HF, O3, PH3, ClO2 and COCl2. |
| Infrared Sensors: | CO2. |
| Semi-Conductor Sensors (Solvents): |
Methylene Chloride, Methyl Chloride, Toulene, Trichlorethylene, Xylene and Ethanol. |
| Semi-Conductor Sensors (Refrigerants): |
R12, R22, R123, R134A, R142B, R11, R23, R141B, R143A, R404A, R507, R410A and R32. |
All the above gases can be detected by the CTX300. The product builder below covers the most common options available. CO2 and other specialist versions are available in the product list further down and the remaining refrigerant and solvent versions are available on request.
WC3AO2F
£775.00
WC3AO2G
£935.00
WC3AO2S
£985.00
WC30CO2A
£615.00
WC30CO2B
£615.00
