CDFT Load Cell

Description

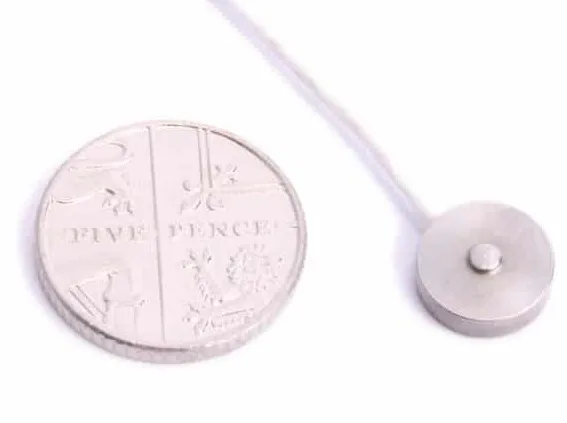

The CDFT micro button load cells are designed for the measurement of compressive forces where space is a limiting factor.  Its compact size means it can be fitted in the smallest of spaces and is often retrofitted into equipment to provide load monitoring.  It is suited for both force measurement and weighing applications alike.

Features

  • Capacities 0-10N to 0-250N
  • Sealed to IP53
  • Only 9mm in Diameter and 2.9mm in height
  • Integral Load Button
  • Wide operating temperatures:-40 to +125°C
  • Robust Construction
  • 3-YEAR WARRANTY

Options

  • Non-Standard sizes available on request
  • Shunt Calibration Facility
  • Other ranges available on request
  • Special mounting adaptors available on request
  • High Temperature & Vacuum Application Versions
  • TEDS Available for Plug & Play with TEDS Enabled Instrumentation, eg. TR150 Display

Applications

  • Force Measurement
  • Weighing Applications
  • Industrial Process Measurement Applications
  • Research & Development Applications
  • Press Force Monitoring Electro-Mechanical Test Rigs

Specifications

Standard Capacities (N): 0-10, 0-25, 0-50, 0-100, 0-200, 0-250N
Sensitivity: 0.5 to 2mV/V Nominal, Refer to table below
Zero Balance/Offset: <±1.0% Rated Output
Non-Linearity: <±0.25% Rated Output
Hysteresis: <±0.25% Rated Output
Repeatability: <±0.1% Rated Output Typical
Input Resistance: 1000 Ohms
Output Resistance: 1000 Ohms
Insulation Resistance: >5000 Megaohms @ 50vDC
Excitation Voltage: 5vDC Recommended (2-100vDC Acceptable)
Operating Temperature: -40 to +125°C, Load Cell Only.
Compensated Temperature: 0 to +100°C
Storage Temperature: -40 to +125°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: Standard IP53
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 1.5m, Ø1.35mm Screened PTFE from cell, 0.5m Screened PVC Tails
Construction: Aluminium + Stainless Steel up to 10N, Stainless Steel 25N upwards.

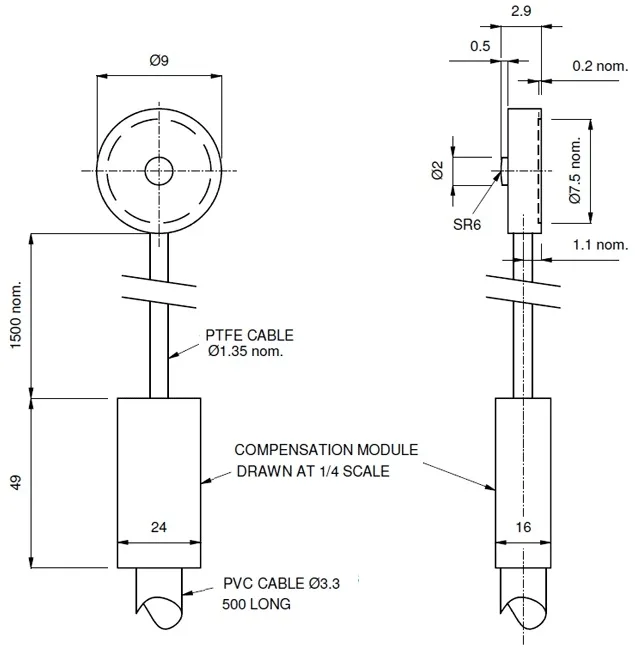

Dimensions



Capacity Sensitivity@ FS (nominal) Deflection @ FS (nominal)
 ¶Resonant Frequency
0-10N 0.5mV/V 0.005 7kHz
0-25N 0.5mV/V 0.005 7.5kHz
0-50N 1.0mV/V 0.010 7.5kHz
0-100N 2.0mV/V 0.020 7.5kHz
0-200N 1.5mV/V 0.010 11.5kHz
0-250N 2.0mV/V 0.012 11.5kHz
