CBES Load Cell

Description

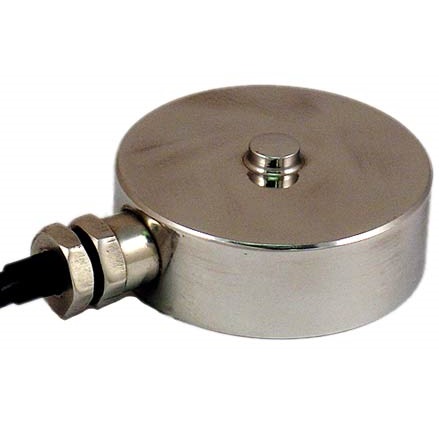

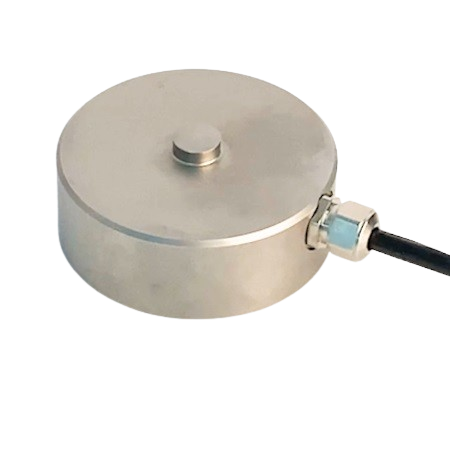

The CBES low profile button load cell is designed for use in compression measurement applications where height is at a premium such as press force measurement and vessel weight measurement. This button load cell has an integral load button to deliver optimum performance.  Plus, its built-in location holes offers you a fast and easy installation.

The CBES button load cell has an environmental protection rating of IP65, totally dust tight and low-pressure water jets protection from any direction.  The IP65 rating is ideal for most industrial applications and comes as standard. IP67 and IP68 submersible versions are available for underwater applications.

The CBES series of load cells can be supplied with a range of our transducer instrumentation such as digital indicators, signal conditioners, digitisers or telemetry systems and can be supplied calibrated as a complete system,

Features

  • Capacities 0-50 up to 0-50,000Kg
  • Low Profile & Compact
  • Fast and Simple Installation, complete with built-in location holes
  • Output 2mV/V
  • Superior Accuracy <±0.15%
  • Integral Load Button
  • Sealed to IP65 (IP67 & IP68 Submersible Version Available)
  • Robust Construction
  • 3 Year Warranty

Options Available

  • Standard and Special Mounting Bases
  • Full Range of Mounting Options Available
  • Special Sizes, or Ranges Available on Request
  • TEDS Available for Plug & Play with TEDS Enabled Instrumentation, eg. TRX Display
  • Inline Amplifier, ICA Module
  • High Temperature Version
  • Wireless Version (using T24 Instrumentation)

Applications

  • Compressive Force Measurement
  • Weighing Applications
  • Vessel Weight Measurement

Specifications

Standard Capacities (Kgf): 0-50, 0-100, 0-200, 0-500, 0-1000, 0-2000, 0-5000, 0-10000, 0-20000, 0-30000, 0-50000
Sensitivity: 2mv/V Nominal
Zero Balance/Offset: <±1.0% Rated Output
Non-Linearity: <±0.15% Rated Output
Hysteresis: <±0.15% Rated Output
Repeatability: <±0.1% Rated Output
Input Resistance: 750 Ohms Nominal
Output Resistance: 700 Ohms Nominal
Insulation Resistance: >5000 @ 50vDC
Excitation Voltage: 10vDC Recommended (2-15vDC Acceptable)
Operating Temperature: -20 to +80°C
Compensated Temperature: -10 to +70°C
Storage Temperature: -20 to +80°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: Standard IP65, IP67 & IP68 available on request
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 3m, 4-Core Screened, PUR Sheath Ø5 nominal
Construction: Stainless Steel, Nickel-Plated, Brass, NBR, PUR

Dimensions

Capacity (Kgf) ØD ØE ØF H HT R M Weight
50, 100, 200, 500, 1000, 2000. 59mm 10mm 42mm 21mm 25mm 50mm M5 x 0.8 (7mm deep) 350g
5000, 10,000, 20,000 98mm 20mm 72mm 35mm 40mm 150mm M6 x 1.0 (8mm deep) 2.3Kg
30,000 115mm 32mm 90mm 47.5mm 60mm 250mm M12 x 1.75 (16mm deep) 3.7Kg
50,000 150mm 44mm 125mm 65mm 80mm 400mm M16 x 2.0 (20mm deep) 7.5Kg
