Home / Data Acquisition Systems High Speed USB & LAN / BMCM External DAQ Systems (LAN, USB) / BMCM Connection Boards and Backplanes
BMCM Connection Boards and Backplanes

BMCM Connection Boards and Backplanes

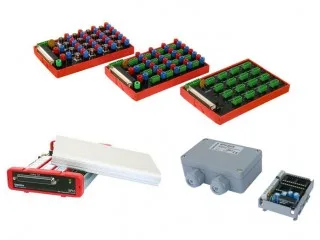

16 way connection boards suitable for use with the LAN and USB AD16F, USB-AD12F, and USB-AD acquisition units and backplanes for housing amplifiers

View Options

Need help finding the right product?

CONTACT US
  • Description

Description

These mounting and connection accessories enable quick and simple connection of inputs to the LAN and USB AD16F, USB-AD12F, and USB-AD acquisition units and also connection of the MAL range of miniature amplifiers.

Product

Ref

Price

Product Description

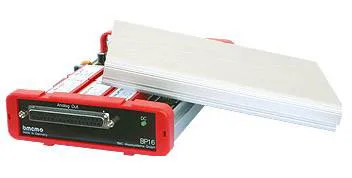

BP16

£230.48

Backplane for MAL miniature amplifiers: Up to 16 measuring amplifiers, converters, or any other function modules can be integrated in the BP16. If installed close to the signal, it provides for high interference resistance. Ideal for remote signal conditioning of passive sensors.
MORE INFO
Add to basket

BP2

£61.40

Connection backplane for qty 2 MAL miniature amplifiers
MORE INFO
Add to basket

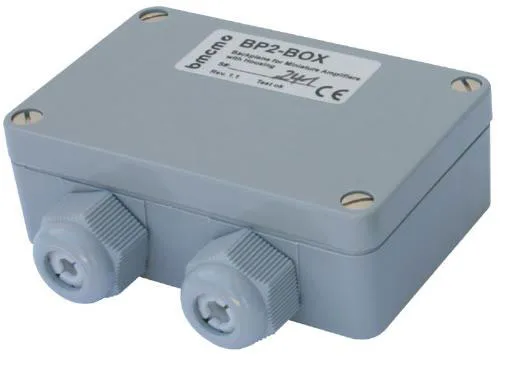

BP2-BOX

£88.09

Connection backplane for qty 2 MAL miniature amplifiers fitted in IP65 weatherproof box.
MORE INFO
Add to basket

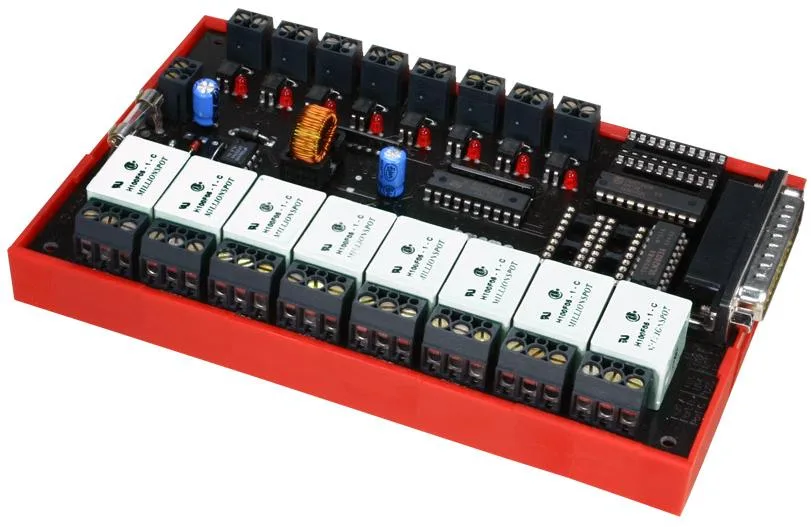

OR8

£114.80

The eight optocouplers on the OR8 convert digital inputs in the voltage range of 5..30V into TTL signals. Via relays, the OR8 and R8 switch eight control lines (TTL) with up to 6A.
MORE INFO
Add to basket

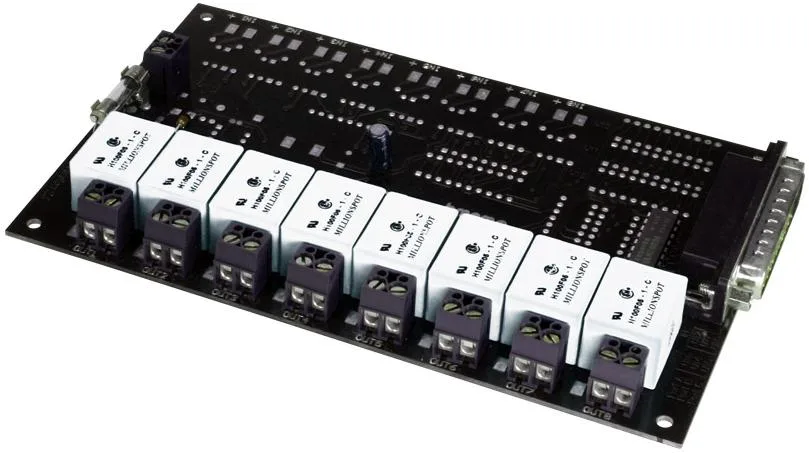

R8

£52.51

Relay output module, 8 TTL inputs, 8 relay outputs
MORE INFO
Add to basket

ZU-SCHI

£10.68

ZU-SCHI is used for DIN rail mounting for the LAN-AD16f, USB-AD12f, USB-AD16f, and BP16 modules
MORE INFO
Add to basket
