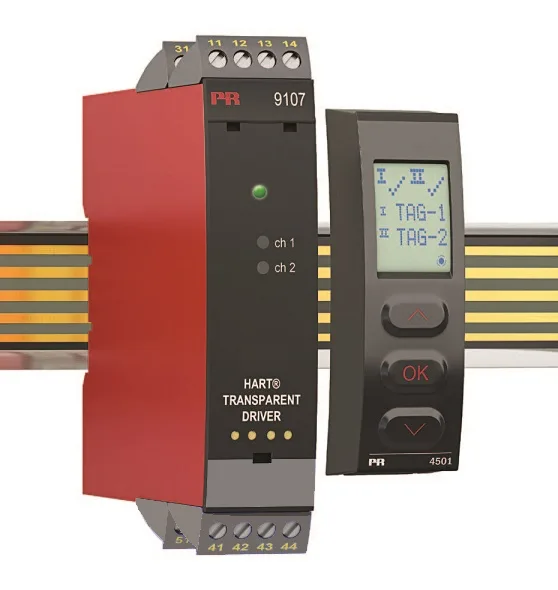

9107A is a 1- or 2-channel isolated 1:1 driver. The device allows for the operation and drive control of I/P converters, valves and indicators. Operation of HART devices is possible as the unit transmits HART communications signals bi-directionally. 9107A can be mounted in a safe area, or in Zone 2/Class I, Division 2, Groups A, B, C, or D.
| Operating temperature | -20°C to +60°C |
| Storage temperature | -20°C to +85°C |
| Calibration temperature | 20…28°C |
| Relative humidity | < 95% RH (non-cond.) |
| Protection degree | IP20 |
| Installation in | Pollution degree 2 & measurement / overvoltage cat. II |
| Dimensions (HxWxD) | 109 x 23.5 x 104 mm |
| Dimensions (HxWxD) w/ 4501 / 4511 | 109 x 23.5 x 116 / 131 mm |
| Weight approx. | 250 g |
| Weight incl. 4501 / 4511 (approx.) | 265 g / 350 g |
| DIN rail type | DIN EN 60715/35 mm |
| Wire size | 0.13…2.08 mm2 AWG 26…14 stranded wire |
| Screw terminal torque | 0.5 Nm |
| Vibration | IEC 60068-2-6 : 2007 |
| Vibration: 2…13.2 Hz | ±1 mm |
| Vibration: 13.2…100 Hz | ±0.7 g |
Supply |
|
| Supply voltage | 19.2…31.2 VDC |
Isolation voltage |
|
| Test /working: Input to any | 2.6 kVAC / 300 VAC reinforced isolation |
| Analog output to supply | 2.6 kVAC / 300 VAC reinforced isolation |
| Status relay to supply | 1.5 kVAC / 150 VAC reinforced isolation |
Response time |
|
| Response time (0…90%, 100…10%) | < 5 ms |
| Programming | via PR 4500 Series Interface/Displays |
| Signal dynamics, Input |
Analog Signal Chain |
| Signal dynamics, Ouput | Analog Signal Chain |
| HART bi-directional communication frequency range |
0.5…7.5 kHz |
| Signal / noise ratio | > 60 dB |
| Accuracy | Better than 0.1% of selected range |
| mA, absolute accuracy | ≤ ±16 μA |
| mA, temperature coefficient | ≤ ±1.6 μA / °C |
| Effect of supply voltage change on output (nom. 24 VDC) |
< ±10 μA |
| EMC immunity influence | < ±0.5% of span |
| Extended EMC immunity: NAMUR NE 21, A criterion, burst |
< ±1% of span |
Current input |
|
| Measurement range | 3,5…23 mA |
| Sensor error detection: Loop break 4…20 mA | < 1 mA |
| Input voltage drop, supplied unit | < 2 V @ 23 mA |
| Input voltage drop, non-supplied unit | < 4 V @ 23 mA |
Current output |
|
| Signal range | 3.5…23 mA |
| Load (@ current output) | ≤ 725 Ω |
| Load stability | ≤ 0.01% of span / 100 Ω |
| Current limit | ≤ 28 mA |
Status relay |
|
| Max. voltage | 110 VDC / 125 VAC |
| Max. current | 0.3 ADC / 0.5 AAC |
| Status relay output terminal 33-34: Relay function | N.C. |
| Programmable low setpoint | 0…29.9 mA |
| Programmable high setpoint | 0…29.9 mA |
| Hysteresis for setpoints | 0.1 mA |
| Max. voltage – hazardous installation | 32 VDC / 32 VAC |
| Max. current – hazardous installation | 1 ADC / 0.5 AAC |
| of span | = normal measurement range 4…20 mA |
| EMC | 2014/30/EU |
| LVD | 2014/35/EU |
| ATEX | 2014/34/EU |
| RoHS | 2011/65/EU |
| EAC | TR-CU 020/2011 |
| EAC Ex | TR-CU 012/2011 |
| EAC LVD | TR-CU 004/2011 |
| ATEX | DEKRA 11ATEX0247 X |
| FM | FM16US0465X/FM16CA0213X |
| UL | UL 61010-1 E314307 UL 913 E233311 (only 9107xx-U9) |
| CCC | 2020322304003422 |
| EAC Ex |
RU C-DK.HA65.B.00355/19 |
| DNV Marine | TAA00000JD |
| ClassNK | TA18527M |
| SIL | SIL 2 certified & fully assessed acc. to IEC 61508 |
