Description

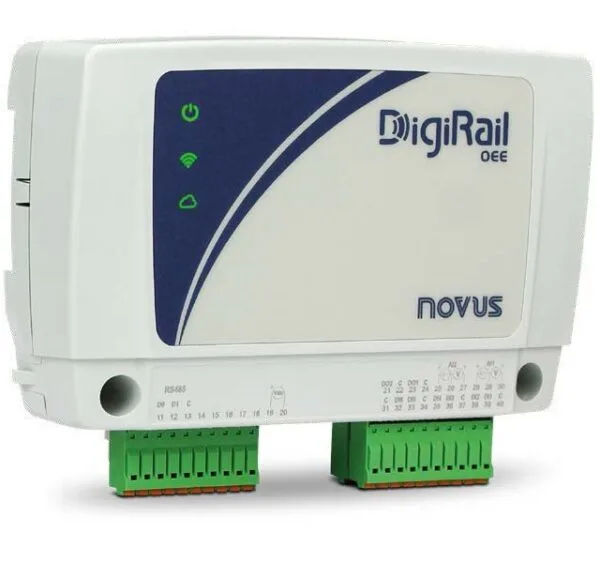

The NOVUS DigiRail OEE is a versatile input/output (I/O) module specifically engineered for industrial applications centered on Overall Equipment Effectiveness (OEE) and Manufacturing Execution Systems (MES), aligning with Industry 4.0 demands. This device transforms raw production data into actionable insights for real-time monitoring and waste reduction. The 8811814460 offers Wi-Fi connectivity options to seamlessly integrate with major cloud platforms like Google Cloud, Microsoft Azure, Amazon AWS, and NOVUS Cloud using the MQTT protocol, enabling both cloud-based analysis and decentralized production control.

Reliable and stable connectivity for data transmission

DigiRail OEE has the main industrial approvals, in order to assure monitoring reliability in harsh environments. Its internal memory buffer capability grants data retention and integrity in an eventual downlink, keeping the data logging seamlessly.

Native compatibility with main cloud providers

Provided with secure MQTT protocol, DigiRail OEE transmits data natively to Google Cloud, Microsoft Azure, Amazon AWS, NOVUS Cloud, or any other compatible IoT cloud platform.

Allows remote settings and diagnosis

System diagnosis and maintenance become very easy thanks to the remote configuration and viewing functions. DigiRail OEE allows to send MQTT and Modbus TCP commands to read status and to set device parameters.

Intuitive software designed for easy commissioning

NXperience software provides a user-friendly configuration interface, allowing input simulation and output forcing, locally through USB port and remotely through Modbus TCP.



Specifications

Inputs	6 Digital, 2 Analogues	Communication Interface	USB
Outputs	2 Digital		Wi-Fi 802.11 b/g/n 2.4 GHz
Analogue Signals	0-5V, 0-10V, 0-20mA and 4-20mA		RS485
Digital Signals	NPN, PNP, and Dry Contact	Software	NXperience
Analogue Input Impedance	mA: 15Ω + 1.5V; V: 1 MΩ	Power Supply	Voltage: 10 to 36vDC
Analogue Resolution	Analogue Inputs: 15 bits (65.000 levels)	Wi-Fi Model	Typical Consumption: 70mA @ 24V
Digital input Features	Logical Level “0” < 0.5V; Logical Level “1” > 3V		Maximum Consumption: 160mA @ 12V
	Maximum Voltage : 30V	Operation Conditions	Temperature: -20 a 60° C (-4 to 140°F)
	Input Impedance: 270kΩ		Humidity: 5 to 95% RH, non-condensing
	Input Current: @ 30vDC (typical) 0.15mA	Battery	CR2032 for internal clock retention
	Maximum Frequency (Square Wave):	Assembly	DIN rail or screw mounting
	Dry Contact: 10Hz; PNP: 3kHz; NPN: 3kHz	Degree of Protection	IP20
Minimum Pulse Duration	Dry Contact: 50ms; PNP: 150µs; NPN: 150µs	Enclosure	ABS + PC
Digital Output Characteristics	2 NPN Digital Outputs	Buffer Capacity	1800 logs with all inputs enabled
	Maximum Current That Can Switch The Outputs 700mA		7000 logs with 1 input enabled
