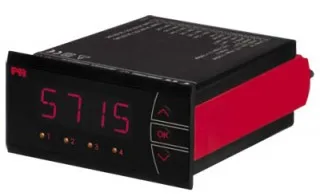

5715 Programmable LED Indicator

5715 Programmable LED Indicator

4 digit LED-display, 48 x 96 mm. Universal input for V, mV, mA, thermocouples and PT100 sensors. Programmable via front keys and software. Galvanic isolation, 2.3 kVAC . With 4 x relay and analogue output. Universal voltage supply (24-230 V AC/DC. Protection IP65

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PR 5715B Universal Indicator

Datasheet

PR 5715D Universal Indicator

Description



· 4-digit 14 segment LED indicator



· Universal voltage supply



· Front key and software programmable



· Input for mA, V, Pt100, TC and Potm.



· 4 Relays and analogue output



Product

Ref

Price

Product Description

5715B

£261.65

PR 5715B 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation, 4 x Relay output. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC, plus Auxiliary supply for sensors of 16-25vDC / 0-20mA. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.
MORE INFO
Add to basket

5715D

£319.67

PR 5715D 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation, 4 x Relay and Analogue 4-20mA output. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC, plus Auxiliary supply for sensors of 16-25vDC / 0-20mA. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x 91.5mm.
MORE INFO
Add to basket

5909

£217.34

USB Loop Link programming kit to configure PR Electronics 5000 & 6000 Series devices. Loop Link 5909 consists of a communication box with USB cable to the PC, necessary cables for connection to the devices, a CD-ROM with the configuration program PReset and an installation manual. The communication box is powered by the USB port of the PC.
MORE INFO
Add to basket
