PR3100 Slim Series Temperature Isolators

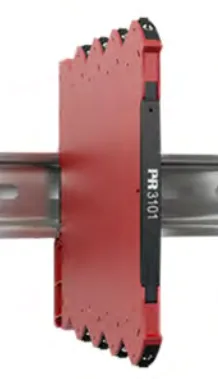

3100 Slim Series of 6mm Temperature Transmitters - Image 2

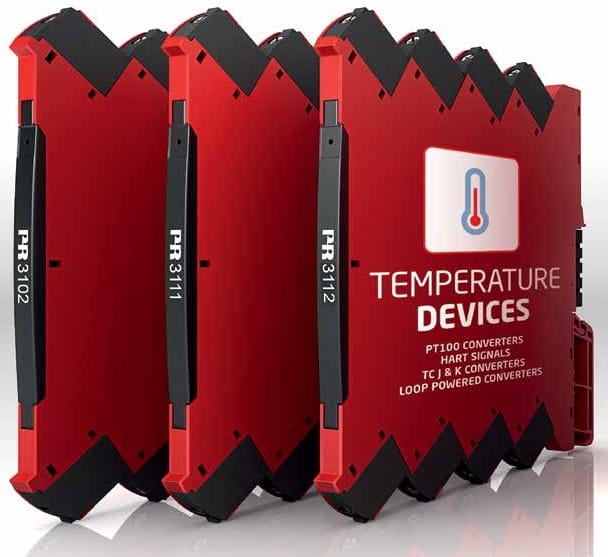

3100 Slim Series of 6mm Temperature Transmitters

The Slim Series is a range of 6mm isolators and signal converters suitable for use with K & J Type thermocouples and PT100 temperature sensors. Programming is achieved via selectable DIP switches allowing changes to output and temperature ranges. The series includes HART 7 protocol units for integrating PT100 and thermocouples into a HART system. All units are ATEX approved for Zone 2 environments, including the power rail and power control units.

View Options

Need help finding the right product?

CONTACT US

Description

Applications

The 3100 series is ideal for the conversion and/or isolation of inputs from K & J Type Thermocouples plus 2-, 3- or 4-wire PT100 temperature sensors into 4-20mA outputs. All units are suitable for installation in Hazardous Zone 2 areas, including power rails and control units.

Features

  • Rational DIP-switch setting
  • Signal conditioning which ensures that no re-calibration is required after DIP-switch programming.
  • 3113 unit provide a 4-20mA output with an embedded HART 7 protocol
  • Reliable watchdogs LED indicates an error in the setup, hardware or power supply.
  • Unique protection against wiring errors
  • Effective isolation to EN 61010-1 and EN 61140
  • Easy mounting / dismounting
  • Space-saving design. At only 6 mm wide and can be mounted next to
    each other, permitting up to 330 channels per metre.
  • Flexible supply voltage 24 VDC ±30%.
  • The devices are vibration-tested via DNV and GL approvals and can be retained on the rail with the 9403 module stop.

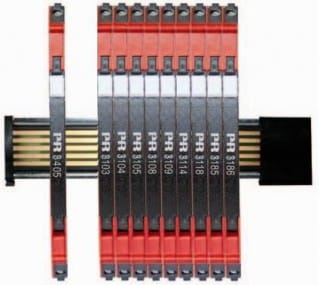

  • 9400 Power Rail and 3405 Power Connector unit will provide power to up to 100 units with up to 2.5A.
  • 3405 Power Connector unit can provide a power supply to sensors from the Power Rail.
  • All units are suitable for ATEX Zone 2 Environments

Specifications

Product Code Description Input Output Program Using
3101 TC Converter K & J Type Thermocouples mA or V DIP-Switches
3102 PT100 Converter 2-, 3-, or 4-wire PT100 mA or V DIP-Switches
3111 TC Converter/Isolator K & J Type Thermocouples Isolated mA or V DIP-Switches
3112 PT100 Converter/Isolator  2-, 3-, or 4-wire PT100 Isolated mA or V DIP-Switches
3113
 HART Temperature Converter 2-, 3-, or 4-wire PT100,
K & J Type Thermocouples		 Isolated Active 4-20mA with HART 7 Protocol DIP-Switches, plus HART 7 revision protocol for extended programming

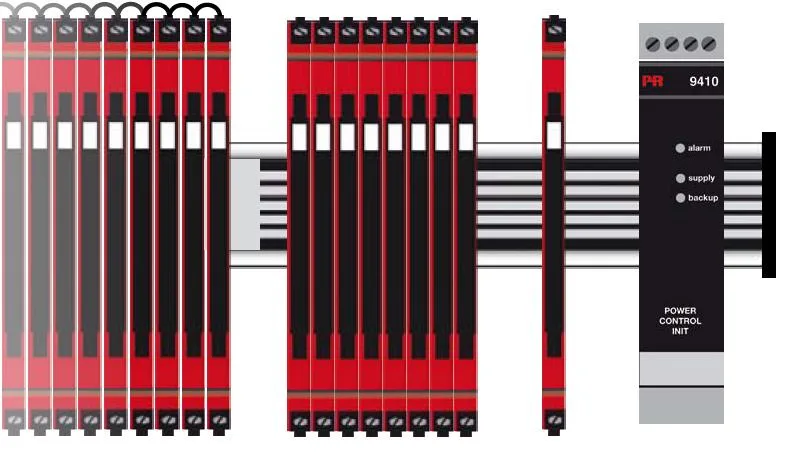

Power Supply Options


The 3100 Slim Series units can be supplied in various different ways:-

  1. One unit can be connected to suitable 24vDC ±30% power supply and then looped to up to 130 additional units, max 2.5A.
  2. One unit can be connected to a suitable 24vDC ±30% power supply and mounted on to the 9400 Power Rail to distribute power to up to 20 units, max 0.4A
  3. The 3405 Power Connector Unit can be connected to a suitable 24vDC ±30% power supply and then to the 9400 Power Rail to distributor power to up to 100 units, max 2.5A.
  4. The 9410 Power Connector Unit can be connected to a suitable 24vDC ±30% power supply (plus a secondary back-up power supply) and then to the 9400 Power Rail to distributor power to up to 200 units, max 4A.
  5. Loop-powered units are powered directly from the 4-20mA signal.

All devices are ATEX Approved and can safely be used in a safe area, or in ATEX Zone 2 environments.

Product

Ref

Price

Product Description

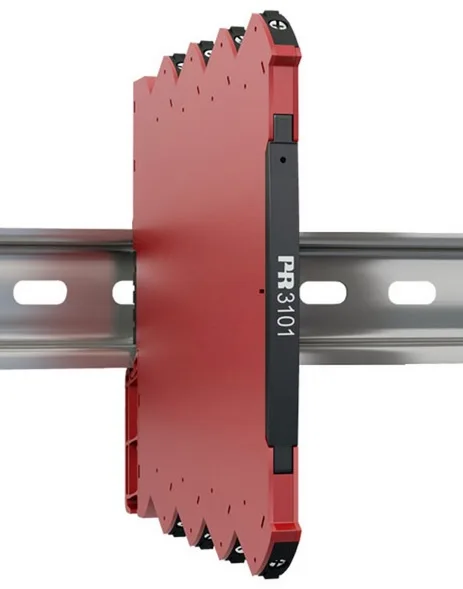

3101

£100.23

3101 Slim Series Thermocouple Temperature Converter suitable for use in ATEX Zone 2 Environments. Conversion of J & K Type Thermocouple temperature sensor input signal to a 0(2)-10V, 0(1)-5V or 0(4)-20mA output signals. Response time: less than 30ms (300ms when signal dampening), Accuracy better than ±0.1% of span. Power Supply: 24vDC ±30%. 6mm Slimline housing. Units are DIP-switch configured.
MORE INFO
Add to basket

3102

£94.00

3102 Slim Series PT100 Temperature Converter suitable for use in ATEX Zone 2 Environments. Conversion of 2-, 3- or 4- wire PT100 temperature sensor input signal to a 0(2)-10V, 0(1)-5V or 0(4)-20mA output signals. Response time: less than 30ms (300ms when signal dampening), Accuracy better than ±0.1% of span. Power Supply: 24vDC ±30%. 6mm Slimline housing. Units are DIP-switch configured.
MORE INFO
Add to basket

3111

£131.88

3111 Slim Series Isolated Thermocouple Converter suitable for conversion of K and J Type Thermocouple input to a 0/4-20mA, 0/1-5V or 0/2-10V output signal. Response time: less than 30ms or 300ms, Accuracy better than 0.05% of selected range, or 0.5 C. Power Supply: 24vDC +/-30%. 6mm Slimline housing. Units are programmable via DIP Switches. Suitable for use in ATEX Zone 2 Environments.
MORE INFO
Add to basket

3111-N

£131.88

3111 Slim Series Isolated Thermocouple Converter suitable for conversion of K and J Type Thermocouple input to a 0/4-20mA, 0/1-5V or 0/2-10V output signal. Response time: less than 30ms or 300ms, Accuracy better than 0.05% of selected range, or 0.5°C. Power Supply: 24vDC ±30%, via terminals only. 6mm Slimline housing. Units are programmable via DIP Switches. Suitable for use in ATEX Zone 2 Environments.
MORE INFO
Add to basket

3112

£123.43

3112 Slim Series Isolated PT100 Converter suitable for conversion of 2-, 3- or 4-wire PT100 input to a 0/4-20mA, 0/1-5V or 0/2-10V output signal. Response time: less than 30ms or 300ms, Accuracy better than 0.05% of selected range, or 0.1°C. Power Supply: 24vDC ±30%, via power rail or terminals. 6mm Slimline housing. Units are programmable via DIP Switches. Suitable for use in ATEX Zone 2 Environments.
MORE INFO
Add to basket
