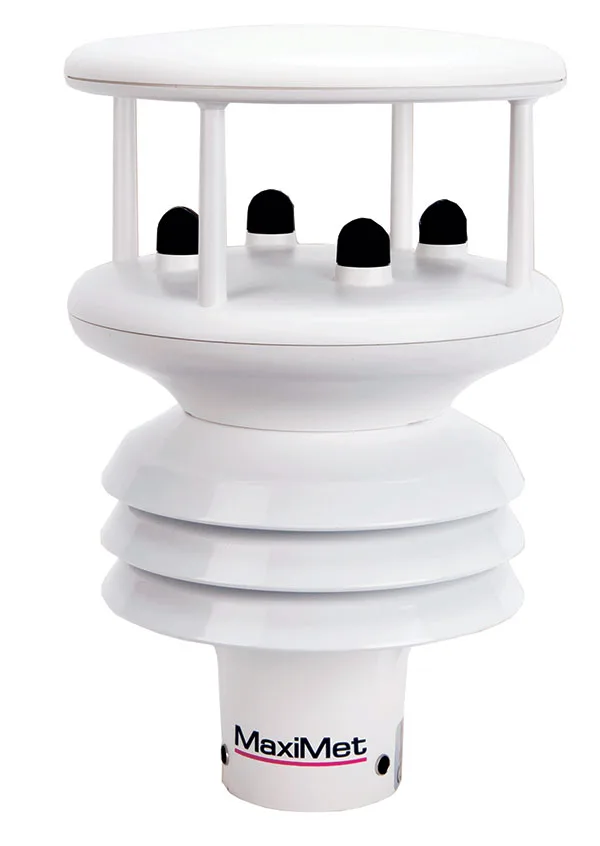

MaxiMet GMX500 Compact Weather Station. Measured Parameters: Relative Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, 2-Axis Compass Heading. Derived Parameters: Average Wind Speed & Direction, Corrected Direction, Gust Speed & Direction, Dew Point, Wet Bulb Temperature, Wind Chill, Heat Index, Absolute Humidity, Air Density and Pressure at Sea Level. Outputs: RS232, 422, 485 (ASCII), SDI-12, NMEA, Modbus. Power Supply: 5-30vDC (Consumption 24mA @ 12vDC).
£1,537.00
| Parameter | Range | Resolution | Accuracy | Units of Measure |
| Wind Speed | 0-60m/s | 0.01m/s | 0.3ms (0-10m/s) 3% (10-40m/s) 5% (40/60m/s) |
m/s, Km/h, mph, kts, ft/min |
| Wind Direction | 0-360° | 1° | ±3° (0.5-40m/s) ±5° (40-60m/s) |
Degrees |
| Compass | 0-360° | 1° | ±3° | Degrees |
| Temperature | -40 to +70°C | 0.1°C | ±0.3°C | °C, F or °K |
| Humidity | 0-100%RH | 1%RH | Typically ±2%RH | %RH, g/m² |
| Dew Point | -40 to +70°C | 0.1°C | °C, F or °K | |
| Pressure | 300-1,250hPa | 0.1hPa | ±0.4hPa (Absolute) ±0.8hPa (Relative) |
hPa, mBar, mmHg, InHg |
| Output Rate: | 1Hz, 1 reading per minute, 1 Reading per hour, or Polled Mode |
| Digital Comms: | RS232, RS485, RS422, SDI-12, NMEA, Modbus, ASCII |
| Power Supply: | 5-30vDC |
| Consumption @ 12vDC: | 24mA |
| IP Rating: | IP66 |
| Operational Temperature Range: | -35 to +70°C |
| CE Marking: | Yes |

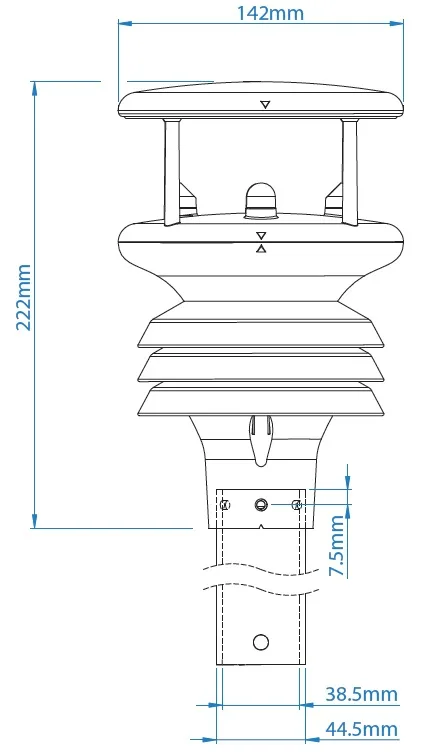

| Dimensions: | 222 x 142 x 142mm |
| Weight: | 0.7Kg |
| Origin: | UK |
| Warranty: | 24 Months |
