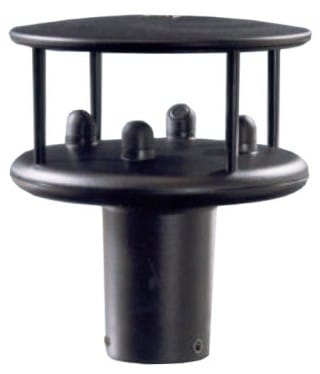

Windsonic 75 Anemometer

Description

The WindSonic 75 is a robust versatile wind speed and direction sensor with a wind speed range of 0-75m/s. Requiring very little maintenance and with no moving parts, or cups that can easily be damage, the WindSonic75 Ultrasonic anemometer can be position in less accessible areas to take wind readings clear of obstructions. The analogue output options on this unit can make this the easiest version to integrate with other sensors. The 0-5V or 4-20mA output options are ideal for adding to a remote weather station that may also have mV outputs from pyranometers monitoring solar radiation, etc.

FeaturesWindSonic75 Ultrasonic Anemometer Diagram

  • Wind Speed & Direction Sensor
  • 0-75m/s (146 knots) Wind Speed
  • 0-359° Wind Direction
  • WMO Compliant gust wind speed and directions
  • ASCII or NMEA Serial Outputs
  • 4-20mA or 0-5V Analogue Outputs
  • Maintenance Free.
  • Free WindCom Software

Typical Applications

  • Remote weather monitoring stations
  • Building controls
  • Small airports & helipads
  • Road & rail tunnels
  • Environmental field sites
  • Coastal weather monitoring stations

Specifications

Wind Speed Range 0-75m/s (0-146 knots)
Wind Direction 0-359° (no dead band)
Starting Threshold 0.01m/s
Accuracy Wind Speed ±2%, Direction 2° @ 12m/s
Resolution Wind Speed 0.01m/s, Direction 0.1°
Ultrasonic Output Rate 0.25, 0.5, 1, 2 or 4Hz
Parameters Speed & Direction or U & V Vectors
Units m/s, knots, mph, kph, ft/min
Power Supply 12-30vDC
Housing Material Polycarbonate
Size 142 x 163mm
Weight 0.5Kg
