Description

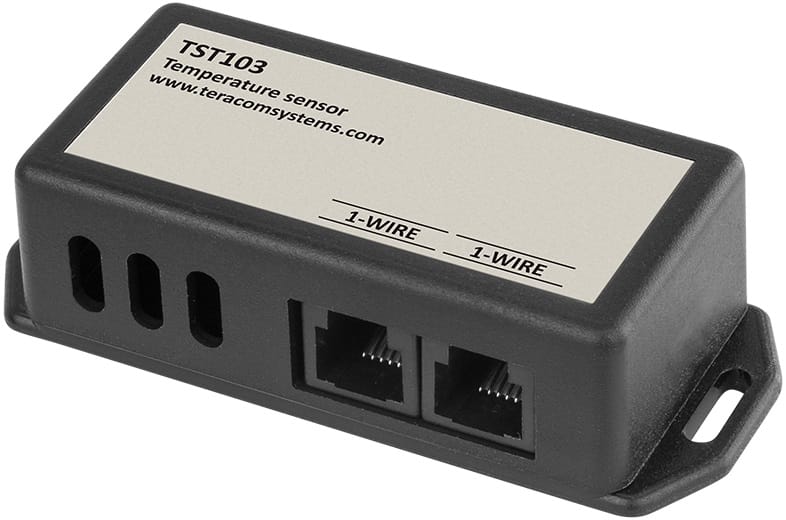

The TST103 is a 1-wire digital temperature sensor that can connect to a 1-Wire interface, making it ideal for monitoring and control in environments, such as server rooms, offices, and storage areas for temperature-sensitive goods. Its suitability extends to smart office applications, data loggers, and thermostats. For convenient installation in server environments, a specific accessory for 19” cabinets is available separately.
The TST103 sensor delivers high measurement accuracy of ±0.5°C within the -10 to +85°C range, employing 12-bit precision from its integrated digital-to-analogue converter. Operating with a low current consumption of under 2mA and a supply voltage range of 3 to 5.5VDC, the TST103 communicates via a 1-Wire bus. Each unit features a unique 64-bit serial code, enabling the use of multiple sensors on the same bus, and incorporates two RJ11 connectors for simplified daisy-chain wiring.
Features
- ±0.5°C accuracy from -10 to +85°C
- 12 bits resolutions
- Easy daisy chain connection
- IP20 ingress protection
- Very low current consumption
- Each device has a unique 64-bit serial number
Applications
- Server room and data centers temperature monitoring and logging
- Environmental quality monitoring and assessment
- SCADA systems for temperature monitoring
- Temperature monitoring and logging for food and drug storage
Specifications
| Operating Range: | -40 to +85°C |
| Accuracy (Max): | ±0.5°C (-10 to 85°C), ±2.0°C (-40 to 85°C) |
| Resolution: | 0.1°C |
| Supply Voltage: | 3 to 5.5vDC |
| Ingress Protection: | IP20 |
| Dimensions: | 85 x 35.1 x 23.5mm |
| Cable: | Two RJ-11 in parallel |
Compatible Controllers & Monitoring Systems
Designed for Seamless 1-Wire Networking:
The TST103 is engineered for high-density environmental monitoring. To function, this sensor must be connected to a compatible 1-Wire Controller (Master) featuring RJ11 ports. Its dual-port design allows for efficient linear daisy-chaining, reducing wiring complexity in server racks and industrial cabinets. The RJ11 ports also provide the power for the sensor.
Flexible Installation Options:
- Daisy-Chain Configuration: Connect multiple TST103 sensors in a sequence using 1m or 3m RJ11 patch cables for localized monitoring (e.g., across multiple rack levels).
- Direct Long-Range Connection: For sensors located further from the master unit, use the 30m RJ11 cable to connect a single sensor or the start of a chain directly to the controller.
- Maximum Network Reach: The system supports a total cable length of up to 30m in a linear topology, ensuring reliable data transmission across large data centres.
