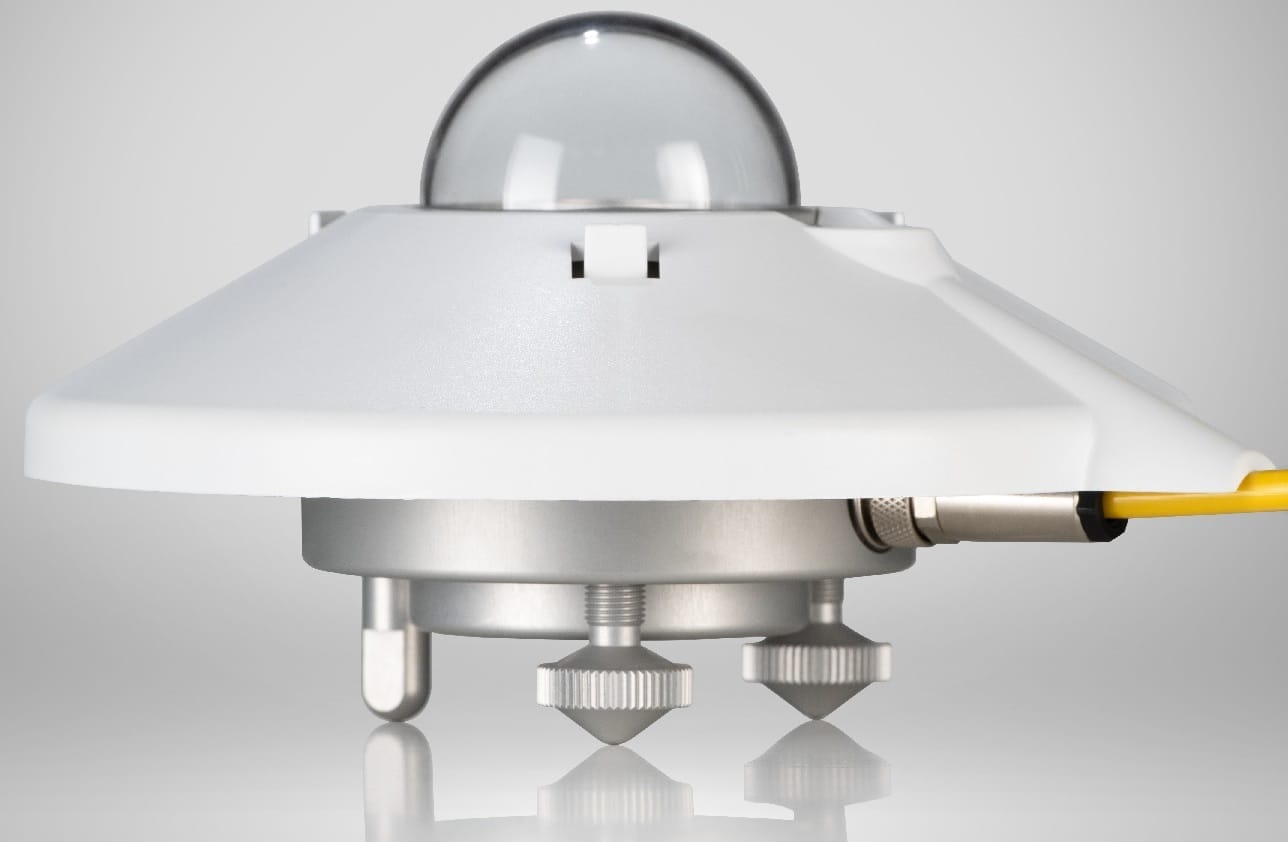

SMP 12 Smart Pyranometer with RS485 Modbus Comms. High Quality glass dome with heating to mitigate effects of morning dew, frost or snow. Integrated leveling. A white diffuser based thermopile solar measurement sensor for a faster response time. Spectral range 285 – 2750nm, response time less than 0.5 Secs (95%). Operating Temperature -40 to +70°C. Remote tilt angle monitoring, Sun shield and EN 61000-6-2 surge protection against lightning strikes. The RS485 Modbus RTU outputs provide an output for solar irradiance (-200 to 2000W/m²), Internal humidity and temperature, plus tilt angle. Power Supply 8 to 30vDC @ Max 3.5W. Supplied with no plug or cable.
£2,691.00
.The SMP12 is a high quality pyranometer designed for measuring solar irradiance on a plane surface (radiant flux, W/m²), which results from combination of the direct solar radiation and the diffuse sky radiation. The measurement can be made horizontally for Global Horizontal Irradiance (GHI) or tilted for Global Tilted Irradiance (GTI). The SMP12 instrument is designed to measure and report solar irradiance, sensor body temperature, internal humidity and tilt angle from horizontal. The SMP12 can also be used to create an albedometer to measure surface reflectance where one SMP12 is facing the ground and another SMP12 is facing the sky.
All SMP’s have the RS485 Modbus RTU interface, very low power requirements and are supplied with comprehensive, traceable, calibration certificates. Calibrations are traceable to the World Radiometric Reference (WRR) in Davos Switzerland and are performed in accordance with ISO 9847, Annex A.3 ‘Calibration of Field Pyranometers by comparison to a Reference Pyranometer’.s and are supplied with comprehensive, traceable, calibration certificates.
Diagram
| ISO 9060:2018 Classification: | Fast Response Spectrally Flat Class A |
| Spectral Range: | 285 to 2750nm |
| Response Time: | <0.5s (95%) <0.15s (63%) |
| Zero Offset A: | <±1 W/m² |
| Zero Offset B: | <±1.5 Wm² |
| Directional Error (Up to 80º with 1000 Wm² beam): | <±10 Wm² |
| Temperature Dependence of Sensitivity: | <1% (-10 to 40°C) <2% (-40 to 70°C) |
| Digital Output: | 2 wire RS485 Modbus RTU |
| Irradiance Range: | -200 to 2000W/m² |
| Tilt Range: | -180° to 180°, ±0.5° |
| Internal Humidity Range: | 0-100 % RH (±3% accuracy and 1% resolution) |
| Operating Temperature: | -40 to +80°C |
| Supply Voltage: | 8 to 30vDC |
| Power Consumption (Max): | 3.5W |
| Ingress Protection: | IP67 |
SMP12 instruments have an 8-pin socket and can be connected to a standard cable with a pre-wired waterproof 8 pin plug and flying leads. Cable lengths of 10m, 25m, 50m and 100m are available.
Field Data Logger Options
The Meteon 2.0 is a significantly more advanced and versatile data logger than the Meteon, particularly for users working with modern “Smart” Kipp & Zonen pyranometers. It can accept up to 5 Smart pyranometers and one analogue pyranometer, plus one Modbus temperature and a pulse input for kWh values. The Meteon 2.0 can log up to 380,000 sets of min, max and average values. This logger is ideal for those needing to monitor multiple parameters (irradiance, temperature, energy) in PV applications.
If you require a permanent solar panel efficiency monitoring system, please contact us directly to discuss your requirements. We can provide bespoke tailored systems to fit any requirements with loggers suitable for transmitting data via Mobile network, Wi-Fi, Ethernet or even a satellite connection.
