The Series 26Y are pressure transmitters used in water level measurements that require considerable accuracy but at a competitive price. Ranges from 200 mBar up to 10 bar (corresponding to water column depths of 2 m to 100 m), sealed at 1 Bar or vented. Available with standard voltage and 4-20mA current outputs and a 5ms start up time makes the Y Series transmitters excellent for remote, or low power, datalogging applications.
Series 36XW submersible pressure transmitters are highly precise level transmitter with integrated temperature sensors for active temperature and non-linearity compensation. Available with sensors suitable for water depth monitoring of 1 up to 300m H20. RS485 Modbus RTU output as well as standard rangeable voltage and current outputs. PR36 units are available with a vented tube and PAA36 units would require a separate barometric sensor for accurate water level calculations. Suitable for fresh or sea water applications. Hazardous Area Approved

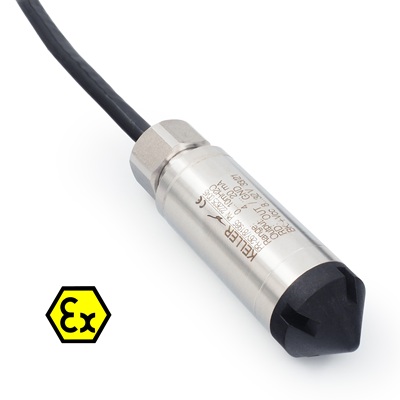

The Series 46XEi sensor are suitable for use in Zone 1 and 2 hazardous areas. The sensor allows for highly accurate pressure measurements to be taken with a capacitive pressure cell suitable for ranges from 0-30mBar up to 3Bar. PR46XEi sensors include a reference tube integrated in the PE cable and connects the referential chamber of the sensor with the current ambient pressure. Sensors can provide scaleable voltage or mA outputs.
