Suntrackers − Direct & Diffuse Irradiance

Instrumentation to collect solar irradiance readings coming directly from the Sun, or the solar irradiance that is being refracted through the atmosphere, need to track the movement of the Sun during the day. Suntrackers actively track the Sun and ensure Pyrheliometers point directly at the Sun and that shaded pyranometers are constantly under their shading balls.

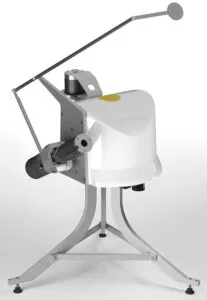

RaZON+ Solar Monitoring System

RaZON+ All-In-One Solar Monitoring System

The RaZON+ is an all-in-one solar monitoring system that can accurately monitor the direct and diffuse solar irradiance. The unit comes with integrated pyrheliometer to measure the DNI and a shaded pyranometer to measure the DHI. The RaZON+ uses the DNI and DHI values to calculate the Global Horizontal Solar..
View Product

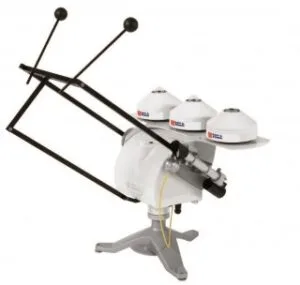

Solys 2 Sun Tracker

Solys2 Sun Tracker

SOLYS2 is a cost-effective and simple sun tracking solution. It does not require a computer and software for installation because the integrated GPS automatically configures location and time data. Multi-colour LEDs indicate the operating status. The high-efficiency belt drive system requires no maintenance and the low consumption makes it ideal..
View Product

CM121 Shadow Ring

The CM121 Shadow Ring is designed to be used with any Kipp & Zonen pyranometers, smart pyranometers, pyrgeometers or UV Radiometers to shield the sensor from direct radiation. The combination of one of these sensors and the CM121 offers a simple solution to the problem of measuring diffuse radiation from..
View Product

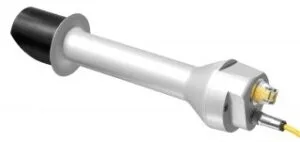

CHP1 Pyrheliometer

CHP1 Pyrheliometer

The CHP1 pyrheliometer is the most commonly use radiometer for the measurement of direct solar radiation. The CHP1 consists of a thermopile detector and two temperature sensors. The CHP1 will produce a maximum output of 25mV under normal atmospheric conditions. The pyrheliometer needs to be pointed at the sun at..
View Product

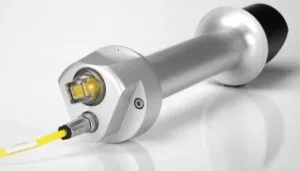

SHP1 Smart Pyrheliometer

SHP1 Smart Pyrheliometer

The SHP1 pyrheliometer is a high quality radiometer used for the measurement of direct solar radiation. The SHP1 combines the sensor technology of the CHP1 with a smart interface to provide an RS485 Modbus and an amplified analogue output. The SHP1 has options for a 4-20mA or 0-1V output signal..
View Product
RaZON+ Solar Monitoring System

RaZON+ All-In-One Solar Monitoring System

The RaZON+ is an all-in-one solar monitoring system that can accurately monitor the direct and diffuse solar irradiance. The unit comes with integrated pyrheliometer to measure the DNI and a shaded pyranometer to measure the DHI. The RaZON+ uses the DNI and DHI values to calculate the Global Horizontal Solar Irradiance, which provides a more accurate value than an unshaded pyranometer. The integrated data logger will log all the readings in a single data set ...
View Product
Solys 2 Sun Tracker

Solys2 Sun Tracker

SOLYS2 is a cost-effective and simple sun tracking solution. It does not require a computer and software for installation because the integrated GPS automatically configures location and time data. Multi-colour LEDs indicate the operating status. The high-efficiency belt drive system requires no maintenance and the low consumption makes it ideal for use with solar and battery power systems. The sleep mode reduces power by 50 % at night-time. The SOLYS2 can operate from AC or ...
View Product

CM121 Shadow Ring

The CM121 Shadow Ring is designed to be used with any Kipp & Zonen pyranometers, smart pyranometers, pyrgeometers or UV Radiometers to shield the sensor from direct radiation. The combination of one of these sensors and the CM121 offers a simple solution to the problem of measuring diffuse radiation from the sky. Naturally, the ring will also intercept some of the diffuse radiation from the sky. The ring has a width/diameter ratio of 0.185 and ...
View Product
CHP1 Pyrheliometer

CHP1 Pyrheliometer

The CHP1 pyrheliometer is the most commonly use radiometer for the measurement of direct solar radiation. The CHP1 consists of a thermopile detector and two temperature sensors. The CHP1 will produce a maximum output of 25mV under normal atmospheric conditions. The pyrheliometer needs to be pointed at the sun at all times and the Solys2 and 2AP Suntrackers have been designed to incorporate a CHP1. Every CHP1 is supplied with a calibration certificate traceable to ...
View Product
SHP1 Smart Pyrheliometer

SHP1 Smart Pyrheliometer

The SHP1 pyrheliometer is a high quality radiometer used for the measurement of direct solar radiation. The SHP1 combines the sensor technology of the CHP1 with a smart interface to provide an RS485 Modbus and an amplified analogue output. The SHP1 has options for a 4-20mA or 0-1V output signal that is consistent between instruments and after recalibrations. The serial output is addressable and can also provide additional information on the individual units. The pyrheliometer ...
View Product

Instrumentation to collect solar irradiance readings coming directly from the Sun, or the solar irradiance that is being refracted through the atmosphere, need to track the movement of the Sun during the day. Suntrackers actively track the Sun and ensure Pyrheliometers point directly at the Sun and that shaded pyranometers are constantly under their shading balls.

RaZON+ Solar Monitoring System

RaZON+ All-In-One Solar Monitoring System

The RaZON+ is an all-in-one solar monitoring system that can accurately monitor the direct and diffuse solar irradiance. The unit comes with integrated pyrheliometer to measure the DNI and a shaded pyranometer to measure the DHI. The RaZON+ uses the DNI and DHI values to calculate the Global Horizontal Solar..
View Product
Solys 2 Sun Tracker

Solys2 Sun Tracker

SOLYS2 is a cost-effective and simple sun tracking solution. It does not require a computer and software for installation because the integrated GPS automatically configures location and time data. Multi-colour LEDs indicate the operating status. The high-efficiency belt drive system requires no maintenance and the low consumption makes it ideal..
View Product

CM121 Shadow Ring

The CM121 Shadow Ring is designed to be used with any Kipp & Zonen pyranometers, smart pyranometers, pyrgeometers or UV Radiometers to shield the sensor from direct radiation. The combination of one of these sensors and the CM121 offers a simple solution to the problem of measuring diffuse radiation from..
View Product
CHP1 Pyrheliometer

CHP1 Pyrheliometer

The CHP1 pyrheliometer is the most commonly use radiometer for the measurement of direct solar radiation. The CHP1 consists of a thermopile detector and two temperature sensors. The CHP1 will produce a maximum output of 25mV under normal atmospheric conditions. The pyrheliometer needs to be pointed at the sun at..
View Product
SHP1 Smart Pyrheliometer

SHP1 Smart Pyrheliometer

The SHP1 pyrheliometer is a high quality radiometer used for the measurement of direct solar radiation. The SHP1 combines the sensor technology of the CHP1 with a smart interface to provide an RS485 Modbus and an amplified analogue output. The SHP1 has options for a 4-20mA or 0-1V output signal..
View Product
