RMS1-TD-10000-40-IA4-MB
Temperature Acquisition Module. 4 inputs for temperature digital probes, temperature range -55 C to 125 C. RS232 Modbus Slave communication. Wide power supply range of 10 up to 30vDC. Din Rail Mounting...
RMS1-TT-110168-6I-GR-MB
Remote I/O Module, 16 NPN digital Inputs, 8 Open Collector Digital Outputs and 6 Analog Inputs 4-20mA. RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting...
RMS2-AI-110-00-80-IA3-MB
RMS2-AI Analogue Acquisition Module. The unit provides 8 Differential Input Channel suitable for 0-10V or 4-20mA inputs. An RS232 and RS485 isolated pluggable terminal blocks (Modbus RTU/ASCII Slave) plus USB port for configuration. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 50mA @ 12vDC. Dimensions: 100..
S8000 Series PH Probes
Series 8000 PH probe, range 0 to 14 PH, operating temperature 0-100 deg C, maximum pressure 7.5 bar...
SC250 Variable Area Flow Meter
SC-250 Metal Tube VA Flow Meter. Suitable for various gaseous and liquid media as well as saturated steam circuits. Available diameters from DN15 to DN150 with PN16 and ANSI150 connections. Options for 4-20mA and pulse outputs as well a stainless steel or PTFE floats and alarm relays...
SD-15A-05
SD-15A-05 DC to DC converter. Input Voltage: 9.2-18vDC. Output Voltage 5vDC @ 15 Watts. Dimensions: 78 x 51 x 28mm. Panel mounted enclosure with short circuit, overload and over-voltage protection...
Senturion XPD25 Disc Mounted Proximity Probe
Reverse Mounted Senturion Eddy Current Probe Type PRR04. Stainless Steel body with a PEEK encapsulated tip, diameter of 8mm. Measurement range of 0-2.5 or 0-4mm...
Senturion XPR02 Proximity Probe
Senturion Eddy Current Probe Type XPR02. Stainless Steel body with a tip diameter of 5mm. Measurement range of 0-2.54mm...
Senturion XPR04 Proximity Probe
Senturion Eddy Current Probe Type XPR04. Stainless Steel body with a tip diameter of 8mm. Measurement range of 0-2.54mm or 0-4mm...
Senturion XPR08 Proximity Probe
Senturion Eddy Current Probe Type XPR08. Stainless Steel body with a tip diameter of 20mm. Measurement range of 0-8mm...
Senturion XPR12 Proximity Probe
Senturion Eddy Current Probe Type XPR12. Stainless Steel body with a tip diameter of 25mm. Measurement range of 0-12mm...

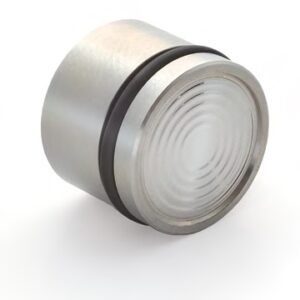

Series 10L Piezoresistive OEM Pressure Transducer
Series 10L Piezoresistive OEM Pressure Transducers. Maximum pressure range up to 200 Bar, with absolute or gauge pressure references. Accuracy ±0.25% FS with long-term stability of ±0.15% FS. Dimensions: Ç? 19mm x 15mm. Temperature Range -40 to + 125°C...
Series 23SY
Series 23SY Temperature Compensated Pressure Transmitter. Standard compensated range of 0 to 50°C, -10 to +80°C available on request. Covers ranges of 1 to 1000 Bar with a fully welded sensor...
Series 25Y Pressure Transmitter
PA25Y Flush Diaphragm Pressure Transmitter for ranges up to 600 Bar, with 4-20mA, 0-10V, 0-5V, 0.5-4.5V outputs, accuracy 0.5% (0-50°C). Fully welded, 316 Stainless Steel, 1/2" BSP flush diaphragm and various electrical connection options..
Series 33 Pressure Transmitter
PR33X/XX digitally compensated pressure transmitter, ranges 0 - 0.2 bar G to 1360 bar...
Series 6242 T/C and RTDs
Thermocouples and RTD probes, stainless steel, with flying leads manufactured to your exact requirements, including probe length, sensor type, cable type and length...
Series 7L Miniature Pressure Transducer
Series 7, miniature pressure transducer, absolute. Ranges up to 200 Bar, operating temperatures up to 80°C, low power consumption , 2-4mA. Up to 600mV output at 4mA excitation...
Series 7S/9S miniature pressure transducer
Series 7S/9S miniature pressure transducer. Ranges: 0,2...1 bar: 400 mV / bar Ranges: 2...200 bar: nominal 600 mV FS..
SGR Series Rotary Transducer For Torque Measurements
These SGR Series Transducers can be used to monitoring bi-directional rotary or static torque. The SGR Series Transducers operate using a four-element strain gauge wheatstone bridge, which connects to a microcontroller to process the bridge output signal and measure the torque applied to the shaft. Using the full bridge helps..
SGR510
SGR510 TorqSense Torque sensor with a fixed analogue outputs for torque measurements with integral electronics. Torque ranges from 0-1Nm to 0-13,000 Nm..
SGR511
SGR511 TorqSense Torque sensor with a fixed analogue outputs for Torque, Speed and Power measurements with integral electronics. Torque ranges from 0-175mNm to 0-13,000 Nm and 60 Pulse/Revolution...
SGR530
SGR530 TorqSense Torque sensor with a fixed analogue outputs for torque measurements with external electronics. Torque ranges from 0-1Nm to 0-13,000 Nm..
SGR531
SGR531 TorqSense Torque sensor with a fixed analogue outputs for torque and RPM measurements with external electronics. Torque ranges from 0-1Nm to 0-13,000 Nm...
SGW1-2B0-00-IA3-MB-HL
SGW1 - OMRON PLC Hostlink protocol to Modbus RTU/ASCII protocol converter. 2 RS232/RS485 ports (1 x Hostlink + 1 x Modbus) plus USB port for configuration. This converter will read the data on OMRON registers DM0100 to DM0199 and map the readings to Modbus registers 40100 to 40199. Power supply:..
