Bespoke Thermocouple and RTD (PT100) Industrial Sensors
A full range of thermocouples and RTDs manufactured to your exact requirements, supplied with a range of housings (including explosion proof Exd), probe lengths, fittings, terminal blocks or transmitters...

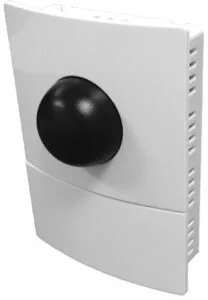

Black Ball Temperature Sensor
Comfort temperature measurement can be best achieved by taking into account the radiant effect of surfaces within the controlled space. The comfort temperature is specified as the average of the conductive temperature and the radiant temperature. The TT-BB is a low cost Black Bulb Temperature Sensor used to measure radiant..

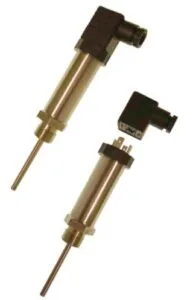

HBS6000 PT100 Sensors with Integral Temperature Transmitters
Low cost all in one PT100 programmable transmitter with 4-20mA output, all stainless steel construction with 1/2" BSP male thread and DIN 43650 connector, available from stock with insertion lengths 50, 75, 100, 150mm. Also available in custom lengths. Programmable temperature range -50 to +200°C (Default 0-100°C. Programming kit available..
Isolated Temperature Transmitter TxIsoRail
The TxIsoRail are fully programmable isolated temperature transmitters dedicated to PT100 and thermocouple industrial sensors. The TxIsoRail is a DIN rail mount unit suitable for mounting in panels or enclosures. Units are easily configured for input type and working range by means of an interface cable connected to a PC..

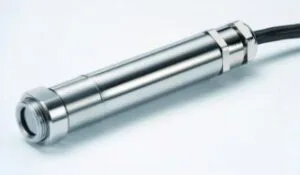

PyroCouple Compact Non-Contact Temperature Sensor.
The PyroCouple series is a range of high quality, low cost, compact sensors which measure the temperature of inaccessible or moving objects and materials. They can measure temperatures from -20 to 500°C, accurately and consistently, with an outstanding response time of 240ms...
Smart Temperature Transmitters ISOLATED TxIsoBlock & TxIsoRail
TxIsoBlock and TxIsoRail are fully programmable isolated temperature transmitters dedicated to PT100 and thermocouple industrial sensors. TxIsoBlock is a head mount unit and TxIsoRail is a DIN rail mount unit. Both units can be easily configured by the user for input type and working range by means of an interface..
Temperature Transmitters TxBlock & TxRail
TxBlock and TxRail are fully programmable temperature transmitters dedicated to PT100 and thermocouple industrial sensors with configurable working ranges. The TxBlock is a head mount unit and provides a 4-20mA outputs, the TxRail is a DIN rail mount unit and there are options for a 4-20mA and 0-10V outputs. Both..

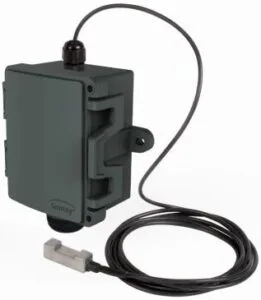

TT-C-CVO Strap-on Temperature Sensor
The TT-C range of temperature sensors are used on pipe work system to detect liquid temperature where fitting an immersion sensor is not practical. Units are available with a PT100 temperature sensor housed in a die-cast Zinc probe with two metres of PTFE cable as standard connecting the probe to..

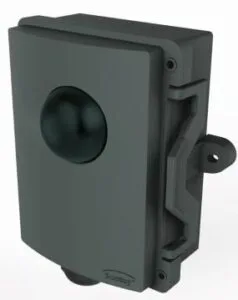

TT-EBB External Black Bulb Sensor
The TT-EBB black bulb sensors are used for radiant heat monitoring in outdoor spaces. Black Bulb temperature Sensors are used to calculate comfort temperature which is specified as the average of the conductive temperature and the radiant temperature. Units contain either a high quality thermistor, platinum or nickel sensing element...

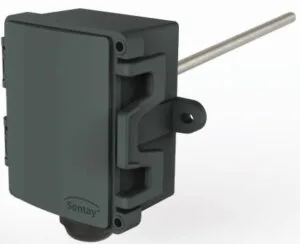

TT-I-CVO Immersion Temperature Transmitter
The TT-I-CVO temperature sensors are used to measure the temperature of liquids in pipework using a thermowell. Units are available with a PT100 sensing element which is housed in a Stainless Steel 6mm diameter probe with 65, 150 or 250mm insertion lengths. The high temperature TT-IH-CVO version has a probe..
TT-O & TT-OR Outside Air Sensor
The TT-O-CVO temperature sensors are used to measure outside air temperatures. Units are available with a PT100 sensing element, which is located in a 10mm diameter cap in the lid for the TT-O-CVO and in a PTFE radiation shield for the TT-OR-CVO. The PTFE radiation shield will minimise the effects..

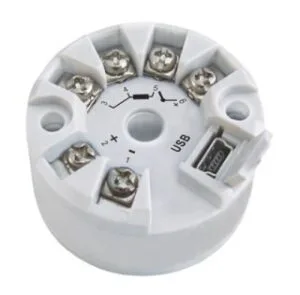

TxIsoPack Isolated Temperature Transmitter
The TxIsoPacks are fully isolated 4-20mA two-wire loop powered temperature transmitters for head mount assemblies. Units have a built-in USB port to allow a configuration of sensor type and range via a PC. The TxIsoPack can be used for PT100 (2, 3 or 4-wire), Thermocouples (Type K, J, R, S,..
