TMS3000-BAD
TMS3000 tunnel measuring system comprising of 2 DP sensors connected to control unit with analog O/P and Profibus O/P..
TSA200
TSA200 1-Wire Single Channel 0-20mA Input Module. Operating range 0-20mA with 0.01mA Resolution. Powered via 1-Wire Bus @ 68mA. Isolation voltage 1000vDC. Operating conditions: 0 to +40°C @ 0-85%RH (non-condensing). Dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and..
TSA202
TSA202 1-Wire Dual-Channel Analogue Input Module. Operating range 0-20mA or 0-10V with 1µA or 1mV Resolution. Powered via 1-Wire Bus @ 25mA. Isolation voltage 1000vDC. Operating conditions:-20 to +60°C @ 10-90%RH (non-condensing). Dimensions: 120 x 36 x 60mm. Supports multiple sensors on a single bus via its unique 64-bit serial..
TSA202-60
TSA202-60 1-Wire Dual-Channel 60V Input Module. Operating range 0-60V with 1mV Resolution. Powered via 1-Wire Bus @ 25mA. Isolation voltage 1000vDC. Operating conditions:-20 to +60°C @ 10-90%RH (non-condensing). Dimensions: 120 x 36 x 60mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and screw less..
TSC201
The TSC201 is a 1-Wire 10A Current Sensor, suitable for AC or DC currents. Powered via 1-Wire Bus @ 30mA. Dimensions: 36 x 107 x 59mm. It features screwless terminal blocks for both the monitoring side and 1-Wire Network for easy daisy-chaining, making it a robust solution for current monitoring...
TSD800
The TSD800 is a magnetic door sensor with IP65 protection. Can be mounted to metal or wooden doors and windows. Provides a simple 'dry contact' relay output for monitoring by controller. Max 40V @ 0.2A Switching. Dimensions: 32 x 15 x 0mm, IP65...
TSH231
TSH231 1-Wire Temperature and Humidity Sensor. Temperature Range -10 to +60°C with accuracy ±0.4°C and Relative Humidity range 20-80%RH with ±3%RH accuracy. 1-Wire interface via dual RJ11 ports, suitable for easy daisy-chaining. IP54 Wall-Mounted enclosure with 68 x 105 x 35mm dimensions. Power Supply 4.5 to 26vDC (5V @ 5mA)...
TSL200
TSL200 1-Wire Ambient Light Sensor. Sensing range 0-83,000 Lux with 1 Lux Resolution. Powered via 1-Wire Bus @ 4mA. Operating conditions: 0 to +40°C @ 5-95%RH (non-condensing). IP30 enclosure with dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and..
TSM400-1-CP
TSM400-1-CP 1-Wire Carbon Dioxide and Pressure Sensor. CO2 Range 400 to 5,000ppm with 1 ppm Resolution. Atmospheric Pressure 10 to 1,200hPa with 1hPa Resolution. 1-Wire interface via screwless terminal block. IP20 Wall-Mounted enclosure with 81 x 81 x 30mm dimensions. Power Supply 4.5 to 26vDC (25mA, peak 150mA)...
TSM400-1-TH
TSM400-1-TH 1-Wire Temperature and Humidity Sensor. Temperature Range -10 to +60°C with accuracy ±0.4°C and Relative Humidity range 20-80%RH with ±3%RH accuracy. 1-Wire interface via screwless terminal block. IP20 Wall-Mounted enclosure with 81 x 81 x 30mm dimensions. Power Supply 4.5 to 26vDC (5V @ 10mA)...
TSP200
TSP200 1-Wire Barometric Pressure. Sensing range 300-1,100 hPa with 0.1 hPa Resolution. Powered via 1-Wire Bus @ 2mA. Operating conditions: -20 to +60°C @ 0-85%RH (non-condensing). IP30 enclosure with dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and daisy-chainable..
TSS8030R
The TSS8030R is a smoke detector designed for early fire warning by detecting a fixed level of smoke concentration through infrared ray scattering in its optic chamber, with factory-preset sensitivity. Controlled by a microprocessor utilising an enhanced algorithm for self-compensation of chamber contamination, this smoke sensor features a relay output,..
TSV101
TSV101 is an AC voltage detector with galvanic isolation. The unit provides a digital output for an AC voltage range of 0 to 250vAC, default switching point 170vAC, reduced to 85vAC by removing jumper. Dimensions: 85 x 35.1 x 23.5mm. Operating conditions: 0 to +40°C @ 5-85%RH (non-condensing)...
TSV200-60i
TSV200-60i 1-Wire Single Channel 60V Input Module. Operating range 0-60V with 0.1V Resolution. Powered via 1-Wire Bus @ 68mA. Isolation voltage 1000vDC. Operating conditions: 0 to +40°C @ 0-85%RH (non-condensing). Dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and..
TT-IH-CVO-250
TT-IH-CVO High Temperature Immersion Sensor suitable for monitoring temperature in pipework systems. PT100 temperature sensing elements housed in a 250mm x 6mm diameter Stainless Steel probe with a 1m cable back to an IP65 housing. Selectable 4-20mA or 0-10vDC output options with 4 pre-set selectable temperature ranges (-10 to +40°C,..
WC3AO2S
CTX 300 Fixed Gas Detector with Display. Electrochemical Oxygen (O2) Cell, Range 0-100%. Accuracy ±1.5% (% at PA full scale), response time less than 20 seconds. Operating temperature +5 to +40°C. Life span 36 months..
WindObserver II Ultrasonic Anemometer
The WindObserver II provides wind speed and direction data via 1 digital and 3 analogue outputs and features an IP66 rated stainless steel housing, which is particularly suitable for use in salt-water environments. The anemometer also has an optional anti-icing heating option enabling the sensor to operate effectively in extreme..
0359900-014
CGR 4 Pyrgeometer with integrated 10K Thermistor temperature sensor. Silicon meniscus dome with hard carbon coating and infrared window materials to absorb short-wave radiation. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 1% (-20 to +50°C). Operating temperature..
0359900-015
CGR 4 Pyrgeometer with integrated 10K Thermistor temperature sensor. Silicon meniscus dome with hard carbon coating and infrared window materials to absorb short-wave radiation. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 1% (-20 to +50°C). Operating temperature..
0359900-024
CGR 4 Pyrgeometer with integrated PT100 temperature sensor. Silicon meniscus dome with hard carbon coating and infrared window materials to absorb short-wave radiation. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 1% (-20 to +50°C). Operating temperature -40..
0359900-025
CGR 4 Pyrgeometer with integrated PT100 temperature sensor. Silicon meniscus dome with hard carbon coating and infrared window materials to absorb short-wave radiation. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 1% (-20 to +50°C). Operating temperature -40..

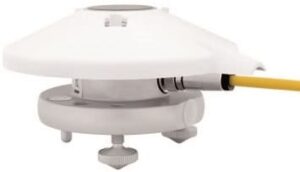

0359920-010
CGR 3 Pyrgeometer with integrated 10K Thermistor temperature sensor. Flat silicon window with an internal thin film coating to block short-wave solar radiation from reaching the broadband thermopile detector. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 5%..
0359920-012
CGR 3 Pyrgeometer with integrated 10K Thermistor temperature sensor. Flat silicon window with an internal thin film coating to block short-wave solar radiation from reaching the broadband thermopile detector. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 5%..
0359920-014
CGR 3 Pyrgeometer with integrated 10K Thermistor temperature sensor. Flat silicon window with an internal thin film coating to block short-wave solar radiation from reaching the broadband thermopile detector. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 5%..
