4222
Programmable Universal I/f Converter...
4225A
4225A Programmable Universal f/f & f/I Converter. Outputs: 1 Analogue (Current: 0-20, 4-20, ±10mA, or ±20mA; Voltage: 0-5, 1-5, 0-10, 2-10, ±5, ±10vDC) and 1 Relay Output (Setpoint, Window, Sensor error, Latch, Power and Off). Power Supply: 21.6-253vAC or 19.2-300vDC..
4249276
Liquid level float switch, overhead suspension type, with 5 metres of cable, contact rated max Switching Voltage 250V AC, 110V DC. Maximum current 10 amps...
431.13.11.04.62.20.U
PTM485 Programmable pressure transmitter, 316L Stainless Steel housing and diaphragm, Viton seals. Range 0 to 40 BarG [programmable between 10 to 40 Bar]. ¼" BSP pressure connection. Electrical connection - Binder 723 7-pin. Output RS485, 4-20mA. Accuracy ±0.25%. Temperature range 0 to 70°C...
5104A–A
PR Electronics 5104 programmable transmitter, 24-230 VAC/DC power supply, 1 channel with 0-20, 4-20mA, voltage input & mA or voltage output. See datasheet for Input & Output options...
5105B-A
Ex-Isolated Driver, 1 Channel, ATEX, II (1) GD, mA, V, 24...230 VAC/DC..
5106AB-A
Hart Transparent Repeater, 1 Channel, 4...20 mA, 24...230 VAC/DC..

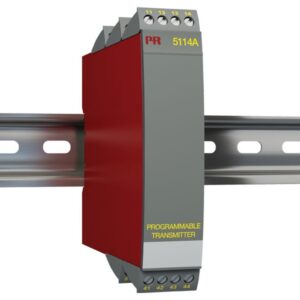

5114A-A
Single channel 5114A programmable transmitter. Single channel unit for RTD, TC, mV, linear resistance, mA and V inputs, producing a (0)4-20mA, 0-10vDC output. 3-port 3.75 kVAC galvanic isolation. Can be mounted vertically or horizontally on a DIN rail. Power Supply 21.6 to 253vAC or 19.2 to 300vDC...

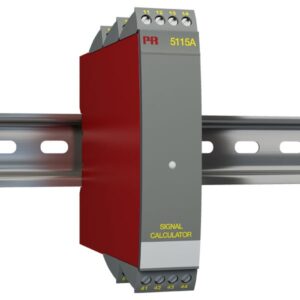

5115A
5115A Signal Calculator. Redundancy measurement of 2 inputs, duplication of input signals or signal calculations of inputs. Unit will accept RTD, Ohm, TC, mA, mV, V input signals. Power supply 21.6 - 253 vAC or 19.2 - 300vDC with 0-20mA or 0-10vDC output...
5116A
5116A Universal programmable transmitter, 24~240VAC/DC, 2 Relays and retransmit output...

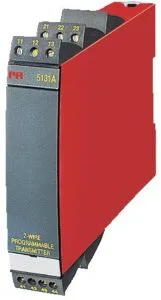

5131A-A
Single channel 2-wire programmable transmitter with a 7.5-35vDC power supply. Please specify the required inputs RTD, TC, R, mA, mV or V. Output 4-20mA...
5202B1
5202B1 2 Channel Pulse Isolator with 2 NPN Outputs. Units will accept NAMUR or mechanical contact inputs. Power supply 21.6 - 253 vAC or 19.2 - 300vDC. Units are suitable for Hazardous Area Installations, ATEX II (1) GD...
5203B–1
Ex Solenoid / Alarm Driver, 1 ch., ATEX II (1) GD, NPN, PNP, Switch, 24...230 VAC/DC..

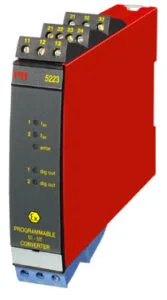

5223A1
Standard programmable f/I-f/f converter with a 24-230vAC/DC power supply. Analogue output mA, mV, V and NPN/PNP output...
5225A1
Standard programmable f/I-f/f converter with a 24vDC power supply. Analogue output mA, mV, V and NPN/PNP output...

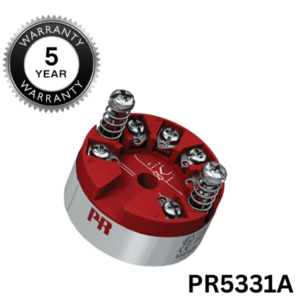

5331A3B
PR 5331A3B 2-Wire Programmable Transmitters. Inputs: -12 to 800mV; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 5000Ω. Output: 4-20mA. Accuracy ≤±0.05% of span. Response Time: 1 to..
5333A
PR 5333A 2-Wire Programmable Transmitters. Inputs: RTD (2 or 3 Wire) Range -200 to +850°C; Linear Resistance – 0 to 10,000Ω. Output: 4-20mA. Accuracy ≤±0.1% of span. Response Time: 0.33 to 60 Seconds. Power Supply 8-35vDC @ 0.8W Max. Namur NE43. Approvals: Zone 2, (ATEX, IECEx & INMETRO); Zone 2..

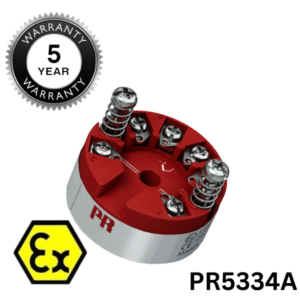

5334A3B
PR 5334A3B 2-Wire Programmable Transmitters. Inputs: -12 to 150mV; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr);. Output: 4-20mA. Accuracy ≤±0.05% of span. Response Time: 1 to 60 Seconds. Power Supply 7.2-35vDC @ 0.8W Max. 1.5kVAC Galvanic Isolation. Namur NE21, NE43. Approvals: Zone..

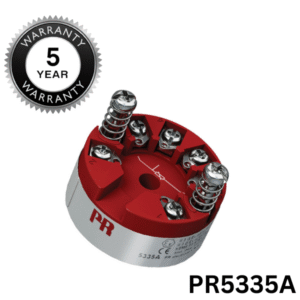

5335A
PR 5335A 2-Wire Programmable Transmitters with HART 5 Protocol. Inputs: -800 to 800mV; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 7000Ω. Output: 4-20mA & HART 5 Protocol...
5337A
PR 5337A 2-Wire Programmable Transmitters with HART 5/7 Protocol. Inputs: -800 to 800mV; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 7000Ω. Output: 4-20mA & HART 5 or..

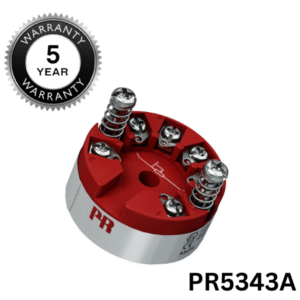

5343A
PR 5343A 2-Wire Programmable Level Transmitters. Inputs: Potentiometer – 0 to 100kΩ. Output: 4-20mA. Accuracy ≤±0.1% of span. Response Time: 1 to 60 Seconds. Power Supply 8-35vDC @ 0.8W Max. Namur NE43. Approvals: Zone 2, (ATEX, IECEx & INMETRO); DNV & EAC Certification. Operating Temp: -40 to +85°C...
5531A
4-digit LCD display 48 x 96 mm ~ Loop-powered, Easy scalable from front keys, Backlight..
5714 Universal Indicator
LED-display, 48 x 96 mm. Universal input for V, mV, mA, thermocouples and PT100 sensors. Programmable via front keys. Galvanic isolation, 2.3 kVAC. Relay and analogue output. Universal voltage supply (24-230 V AC/DC), Protection IP65..

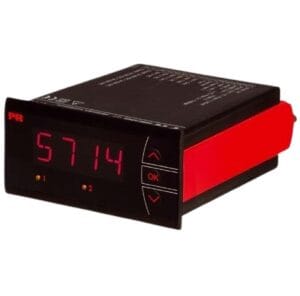

5714A
PR 5714A 4 Digit Red LED display. Accepts a single 4-20mA, 0-1V, 0.2.1V, 0-10V, PT100 and Thermocouple inputs. Programmable via front keys, 2.3kVAC Galvanic isolation. Universal power supply: 21.6 to 253vAC or 19.2 to 300vDC. IP65 Rated with dimensions of 48 x 96 x 120mm, requires a Cutout 44.5 x..
