Description

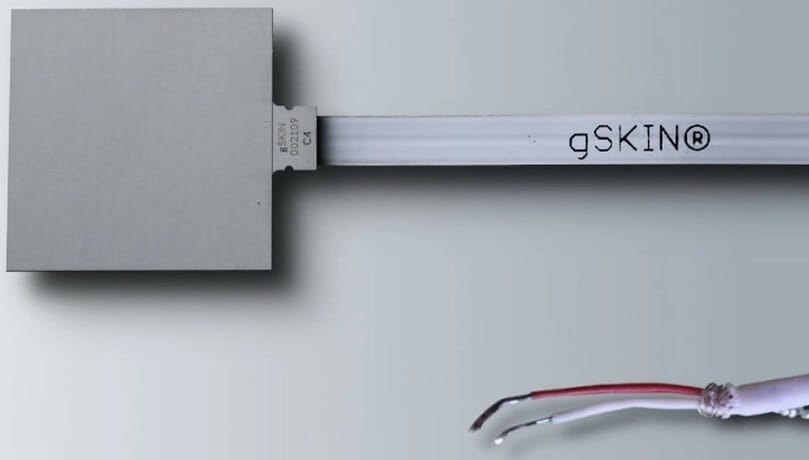

The XI269C is a large 18mm square heat flux sensor and the ‘Gold Standard’ for performing reliable measurements, ensuring readings aren’t affected by sub-surface irregularities. In building science, a single mortar joint or a wall stud could skew the data, as could an air pocket inside thermal insulation. Care should also be taken during installation to ensure the full 18mm square is flat to the surface, as thermal air gaps can result in massive under-reading of the heat flux. Available with 1m flying leads for easier connection to your own monitoring equipment.

Features

• Ultra-high resolution of thermal energies and temperature differences.
• Low invasiveness and thickness.
• Models  with flying leads are ideal for mV data loggers.
• All sensors with conductive heat flux calibration cohering to ISO 8301.
• Applications: R&D, thermal optimization, energy efficiency, industrial monitoring of thermal properties.

Applications

1. In-Situ Building Science (R-Value Measurement) –  Measuring heat loss through insulation, brickwork, or concrete. The large 18mm footprint covers enough material to provide a representative average of the heat flowing through the building envelope.
2. Building Physics & Energy Auditing – Measuring the U-value of wall assemblies, windows, or insulation layers in situ.
3. Solar Energy Harvesting & Photovoltaics – Efficiency testing of solar thermal collectors or PV panel backside cooling. When testing solar panels (PV modules), engineers need to track how much incident energy is converted to heat versus electricity.
4. Large-Scale Industrial Pipes & HVAC – For monitoring “District Heating” systems or large industrial steam pipes. Assessing the degradation of pipe insulation over time.

Specifications

Product: gSKIN® XI
Detector Type: Thermoelectric
Surface Material (Sensing Area): Aluminum
Article Number: A-044628
Sensing Dimensions: 18 x 18 x 0.5mm
Heat Flux Range Min / Max: -150 / 150kW/m²
Noise Equivalent Heat Flux per area / absolute: 0.002 W/m² / 4.6µW (Experimentally evaluated values under optimal steady state conditions).
Heat Flux Resolution per area with gSKIN® DLOG / absolute: 0.02W/m² / 5.7µW (Guaranteed minimum heat flux resolution using the gSKIN® DLOG-4219).
Temperature Difference Resolution: ~140µK
Response Time (0-95%): 0.7 Secs
Min. /Avg. Sensitivity (S): 35μV/(W/m²)/ 65μV/(W/m²) (Only a reference point).
Max. Compressive Force when clamped: < 32Kgf
Electrical Resistance: < 400 Ohms
Thermal Conductivity: ∼1.3W/(m*K)
Linearity with Power: ±1%
Operating Temperature Range Min/Max: -50°C / 150°C
Calibration Accuracy: ±3%
Calibration Temperature Range Min/Max: -30°C / 70°C (Conductive heat flux calibration cohering to the ISO8301 standard with mean temperature of 22.5°C).
Flexprint Length: 5cm
Temperature Dependence of S: 0.25%/°C
Homogeneity: ±1% (The sensitivity increases or decreases as the temperature goes above or below 22.5°C). Position dependent signal change across sensing area.
Cable Length: 1m
