The WSR GEN II Telemetry System works as a receiver unit for GEN II transmitters to provides an analogue output for inputs to connected GEN II transmitters. The WSR is a self-contained mains powered receiver and output unit with built-in batteries providing 48 hours of operation in the event of a mains failure. An LCD is incorporated for real time metering of sensor values. Two models are available with either 8 or 16 inputs/outputs and both will provide a 0-5V or 4-20mA output for interfacing with a logger, PLC or other data acquisition system. The WSR unit can be used with most GEN II transmitters (Except pulse and event loggers). The GEN II System uses a licence free 434MHz one way transmission frequency.
The WSR (Wireless Sensor Receiver) is a self-contained mains-powered receiver and output unit with built-in batteries providing 48 hours of operation in the event of a mains failure. An LCD is incorporated for real time metering of sensor values. The WSR is suitable for integrating to any monitoring systems which accept 0-5vDC or 4-20mA analogue inputs with slowly changing variables – typically measured every 10 seconds. Two models are available with up to 8 or 16 input/output channels.
The WSR GEN II Telemetry System can be used with most GEN II transmitter, but not all. The transmitter units are battery powered and can simply be placed where you need them. Transmitters can be configured using our set-up software and most models are available with an LCD display for local monitoring. Local audible and visual alarms can be built in to transmitters, if required.
The WSR units generate a voltage or current output based on a verified data packet being received from a GEN II transmitter. The generated signal will be held until an updated value is received, or the configured interval has elapsed and a ‘No Data’ value will be output instead. The interval is defaulted to 6 transmitter intervals but can be amended, if required.
| Number of channels: | 8 or 16 |
| Ambient temperature: | -10 to +55°C |
| Humidity: | Up to 95% (non condensing) |
| Power supply: | 12vDC at 500mA powered using type MP12U, input 97-263V AC ) |
| Built-in batteries: | 6 x AA Ni Mh battery – 1.8Ah |
| Backup battery life: | Typically greater than 24 hours, max 48 hours |
| Dimensions: | D 60mm x W 180mm x H 120mm |
| Weight: | 1Kg inc. batteries |
| Case material: | Scratch resistant Nextel coated ABS |
| Receiver: | Crystal controlled |
| Sensitivity: | UHF: 115dB |
| Antenna connector: | SMA 50 ohm female |
| Antenna: | Quarter wave standard, lightweight dipole optional |

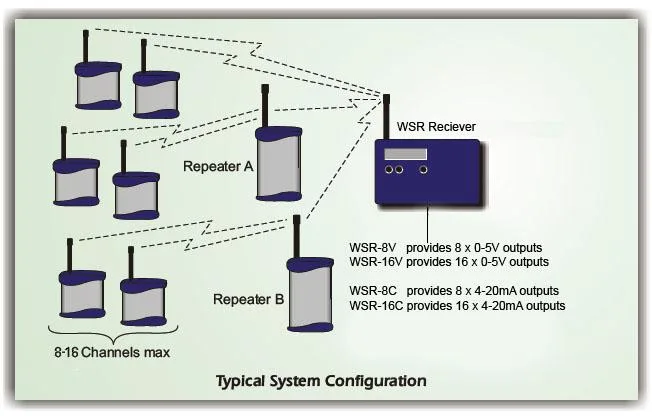

Models available
WSR-8V  provides 8 x 0-5V outputs
WSR-16V provides 16 x 0-5V outputs
WSR-8C  provides 8 x 4-20mA outputs
WSR-16C provides 16 x 4-20mA outputs
A wide range of transmitter units are available for V, mA, thermocouple, thermistor, and RTD inputs as well as units with integral sensors covering a wide range of different inputs.
| Transmitters with built-in sensors | |||
|---|---|---|---|
| GC-06 | Built-in digital temperature sensor | GC-10 | Built-in digital RH and temperature sensor |
| GD-06 | Built-in digital temperature sensor with display | GD-10 | Built-in digital RH and temperature sensor with display |
| GD-11 | Built-in digital RH and temperature sensor + external thermistor (-40 to +70ºC) with display | GL-70 | Built-in Littlemore Scientific light sensor (Visible and UV), RH and T (per GC-10) |
| Transmitters for use with external probes | |||
| GC-04 | Wired socket for 2 x thermistors (-40 to +70ºC) |  GS-31 | Wired socket for 1 x thermistor (-50 to +150ºC) |
| GD-04 | Wired socket for 2 x thermistors (-40 to +70ºC) with display | GD-31 | Wired socket for 1 x thermistor (-50 to +150ºC) with display |
| GS-32 | Wired sockets for 2 x thermistors (-50 to +150ºC) | ||
| GC-13E | Wired socket for 1 x RHT-10D RH/T probe | GD-32 | Wired sockets for 2 x thermistors (-50 to +150ºC) with display |
| GD-13E | Wired socket for 1 x RHT-10D RH/T probe with display | GS-34 | Wired sockets for 4 x thermistors (-50 to +150ºC) |
| GD-14E | Wired socket for 1 x RHT-10D RH/T probe and 2 x thermistor temperature probes (-40 to +70ºC) with display | GS-34R | Wired sockets providing 4 x 0 to 1Kohm |
| GD-13G | Wired socket for 1 x Rotronic HC2-S3 RH/T probe with display | GD-34 | Wired sockets for 4 x thermistors (-50 to +150ºC) with display |
| GD-14G | Wired socket for 1 x Rotronic HC2-S3 RH/T probe and 2 x thermistor temperature probes (-40 to +70ºC) with display | GS-38 | Wired sockets for 8 x thermistors (-50 to +150ºC) |
| GS-21 | Socket for 1 x K or T thermocouple (-200 to +200ºC) | GD-38 | Wired sockets for 8 x thermistors (-50 to +150ºC) with display |
| GD-21 | Socket for 1 x K or T thermocouple (-200 to +200ºC) with display | GS-42 | Wired sockets for 2 x voltage/current inputs with sensor supply |
| GD-21AL | GD-21 with audible and visual alarm (High and Low alarm level can be set in Darca) | GS-44 | Wired sockets for 4 x voltage/current inputs with sensor supplies and switch for ext. supply |
| GD-24 | Sockets for 4 x K or T thermocouples (-200 to +200ºC) with display | GS-52 | Wired sockets for 2 x 4 wire RTDs (-100 to +200ºC) |
| GD-24H | Sockets for 4 x K thermocouples (-200 to +1200ºC) with display | GD-52 | Wired sockets for 2 x 4 wire RTDs (-100 to +200ºC) with display |
| GD-24R | Sockets for 4 x R thermocouples (-200 to +2000ºC) with display | GS-52H | Wired sockets for 2 x 4 wire RTDs (0 to +300ºC) |
WSR-8V
£695.00
WSR-8C
£695.00
WSR-16V
£995.00
WSR-16C
£996.22
RP250GD
£569.00
