Description

The WPI-SDC-150 flow meters are designed for monitoring sandy/dirty irrigation water using an undershot paddle wheel flow meter with a 150mm nominal bore.  An undershot wheel is a vertically mounted water wheel with a horizontal axle that is rotated by the flow of water through the pipe. The paddle wheel in the WPI-SDC irrigation flow meter is positioned so that the lower half of the paddle wheel is immersed in the flow. The motion of the paddle wheel is then proportional to the volume of water flowing through the flow meter.

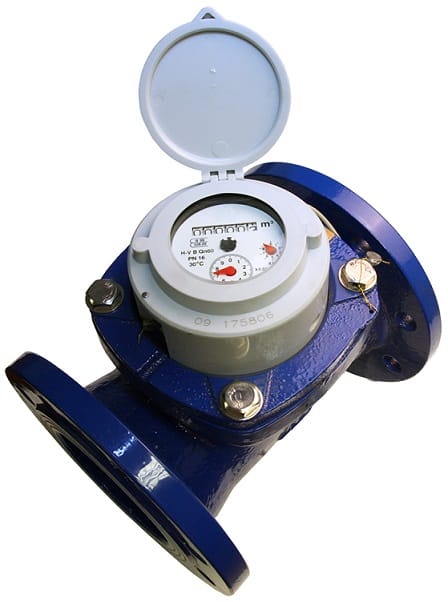

The meter body is an epoxy coated iron with a Dry Dial, Copper Can design display with frost protection. The copper can mechanism can be replaced onsite without the need to remove the flow meter itself. The DN150 flanged connection is suitable for pressures up to 16 bar. The mechanical indicator allows for two optional pulse output at 0.1 and 1 m³/pulse. The WPI-SDC flow meter is ideal for irrigation and agricultural applications where flows may contain solid particles.

Features

• 150mm Irrigation Water Flow Meter
• Undershot paddle wheel meter type
• Suitable for sandy/dirty irrigation water
• DIN Flanged connections with max pressure 16 Bar.
• Epoxy coated iron body
• Copper Can display mechanism with frost protection
• Onsite replaceable “drop-in” mechanism
• Pulse output option
• IP68 ingress protection
• Security tamper evident wire lock & seal
• Approved: EN14154:2005+A1, OIML R-49: 2006(E)
