Woltmann Helix Hot Water Meter

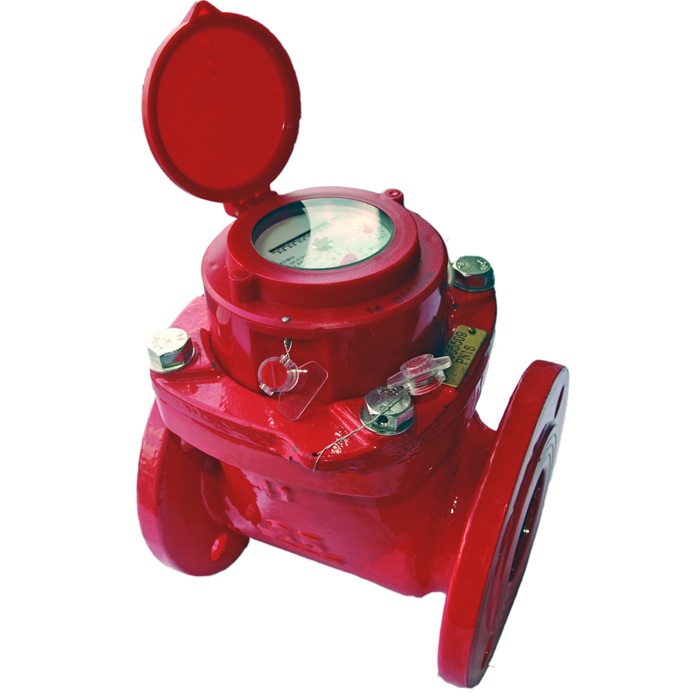

The VuAqua WP-SDC-H is a woltmann mechanical water meter with dry type dial counter suitable for a variety of hot water distribution and industrial applications available in sizes DN50 (2”) to DN500 (20”). The flow meters have a mechanical display and optional pulse output. Suitabke for hot water up to 90°C with PN16 Flanged connections.

Need help finding the right product?

Downloads

Description

Description

Features

Woltmann helix meter type (Bulk Meter)
Replaceable ‘drop-in’ mechanism
Approved: MID /OIML
Dry dial (frost resistant)
Meter body material is epoxy coated cast iron
Can be installed vertically or horizontally
DIN flanged connections (ANSI option)
Maximum pressure of 16 Bar
Maximum temperature of 90°C (T90)

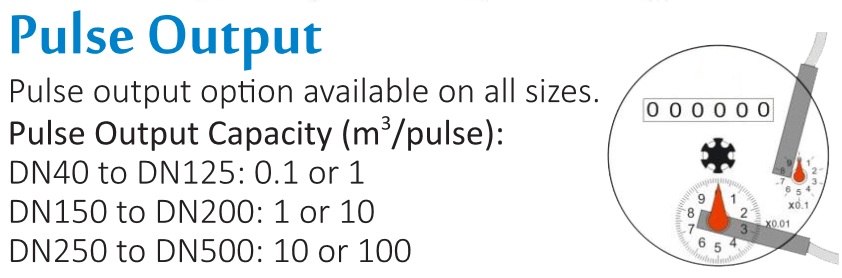

Pulse Output option: Vmax=24AC/DC, Imax=0.01A
Tamper evident wire lock & seal

Specifications

Nominal Diameter (DN)	50	65	80	100	125	150	200
Permanent Flow Rate, Qn (m³/h)	40	63	63	100	160	250	400
Overload Flow Rate, Qmax (m³/h)	50	78.75	78.75	125	200	312.50	500
Minimum Flow Rate, Qmin (m³/h)	0.5	0.7875	0.7875	1.25	2.0	3.125	5.0
Max Temperature of Water (°C)	90	90	90	90	90	90	90
Operating Pressure, Max (Bar)	16	16	16	16	16	16	16
Height (mm)	252	262	272	282	297	341	371
Overall Length (mm)	200	200	225	250	250	300	350

Due to the large size of these flow meters, these units are not available to purchase online. If you send an e-mail inquiry to info@omni.uk.com, we will be happy to send you a quotation for your requirements.

Product

Ref

Price

Product Description

WP-SDC-50-H

£195.26

WP-SDC-50-H Woltmann Helix Hot Water Meter. Pipe diameter 50mm with PN16 flanged connections, flow range: Qmin 0.5 m³h; Qn 40 m³h; Qmax 50 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-65-H

£199.73

WP-SDC-65-H Woltmann Helix Hot Water Meter. Pipe diameter 65mm with PN16 flanged connections, flow range: Qmin 0.7875 m³h; Qn 63 m³h; Qmax 78.75 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-80-H

£218.67

WP-SDC-80-H Woltmann Helix Hot Water Meter. Pipe diameter 80mm with PN16 flanged connections, flow range: Qmin 0.7875 m³h; Qn 63 m³h; Qmax 78.75 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-100-H

£240.27

WP-SDC-100-H Woltmann Helix Hot Water Meter. Pipe diameter 100mm with PN16 flanged connections, flow range: Qmin 1.25 m³h; Qn 100 m³h; Qmax 125 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-125-H

£278.38

WP-SDC-125-H Woltmann Helix Hot Water Meter. Pipe diameter 125mm with PN16 flanged connections, flow range: Qmin 2 m³h; Qn 160 m³h; Qmax 200 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-150-H

£412.62

WP-SDC-150-H Woltmann Helix Hot Water Meter. Pipe diameter 150mm with PN16 flanged connections, flow range: Qmin 3.125 m³h; Qn 250 m³h; Qmax 312.5 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 1 to 10 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-200-H

£641.56

WP-SDC-200-H Woltmann Helix Hot Water Meter. Pipe diameter 200mm with PN16 flanged connections, flow range: Qmin 5 m³h; Qn 400 m³h; Qmax 787.50m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 1 to 10 m³/pulse are available at the time of order. (Please order pulse modules separately).

WP-SDC-H-PULSE-OPTION-K=100

£36.75

Pulse Output Option for WP-SDC Hot Water Meters 0.1 m³h/Pulse, or 100Ltr/pulse
