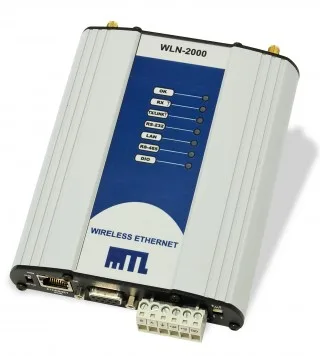

Description

Features

  • Ethernet and serial data over 802.11 a/b/g wireless network
  • High wireless data rate(108Mbps turbo mode)
  • Configurable transmit power (15mW – 400mW) for superior radio range
  • Bridge /Router, Access Point /Client in one, reduces inventory costs
  • Online diagnostics and configuration throughout the network
  • Multi-hop repeater function to extend radio coverage
  • Modbus protocol support

Specifications

Radio Specifications

Model WLN-2400ES WLN-2500ES
Frequency Band 2.412 – 2.472GHz 5.18 – 5.825GHz
Receiver Sensitivity -97dBm @ 1Mbps to
-74dBm @ 108Mbps		 -94dBm @ 6Mbps to
-74dBm @ 108Mbps
Channel Spacing 5MHz (13 Channels) 20MHz (27 Channels)
Max Bits per sec
 108 Mbps: 100mW (+21 dBm) 108 Mbps: 100W (+21 dBm)
Max Range 2Km line of sight 3Km line of sight

Connections

Antenna Connector: 2 x Female SMA – Standard polarity
Ethernet Port: Standard RJ45
Serial Port: RS232 DB9 female, RS485 2 pin terminal block.
Data rate (BPS) configurable: 1200; 2400; 4800; 9600; 14,400; 19,200; 38,400; 57,600; 76,800; 115,200; 230,400.
Data Configuration: 7/8 data bits, 1/2 stop bits, odd/even/no parity

Descrete Input/Output

Input: Volt-free contact.
Output: FET – 30vDC 500mA, used to transfer input/output status or communcation failure output.

General

Environmental

Temperature Range: -40°C to +60°C
Humidity: 0 to 99% non-condensing
Supply Voltage: 9 to 30V DC

Physical

Housing: Powder-coated, extruded aluminium
Dimensions: 114 x 140 x 30mm
Mounting: 'T' section 35mm DIN rail to EN 50022
Weight: <0.5 kg
