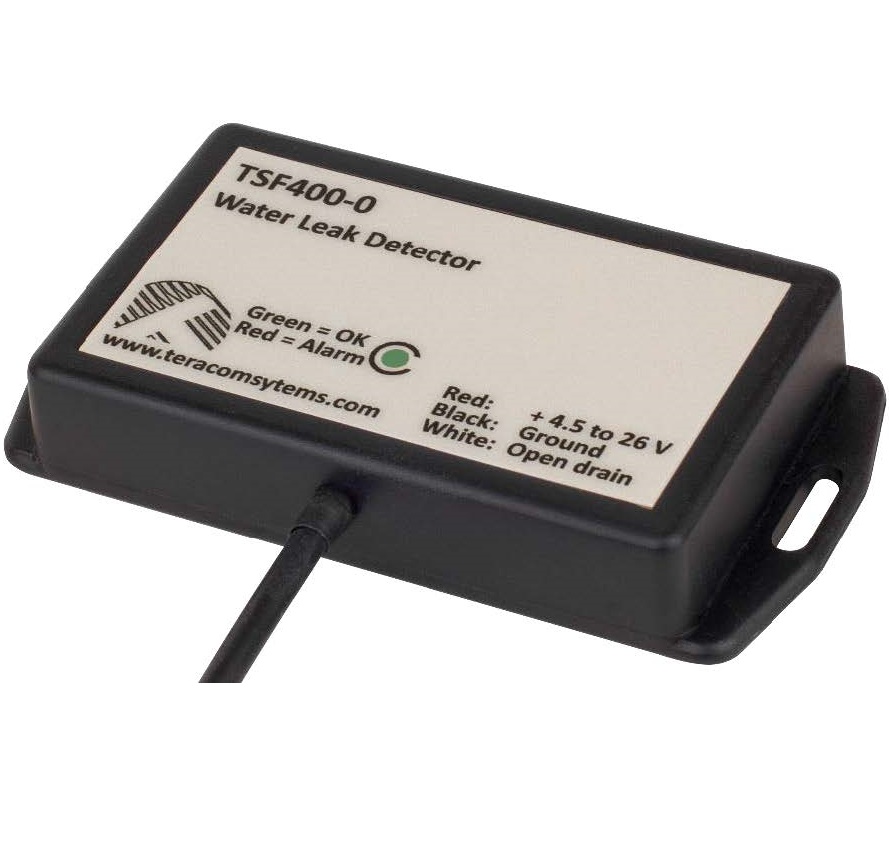

TSF400-0 Water Leak Detector

Description

The TSF400-0 is a compact water-leak detector designed for early detection of water presence on floors, trays, or inside equipment enclosures. It operates from a wide 4.5–26vDC supply and provides an N-channel open-drain output for direct connection to PLCs, controllers, alarm modules, or building-automation systems.

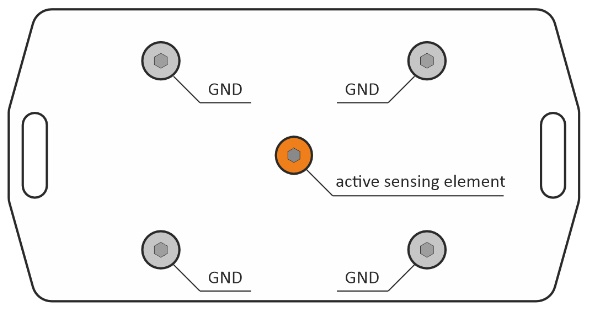

Detection is based on the conductivity between sensing electrodes; when water bridges the electrodes, the output changes state, enabling fast and reliable alarming with just a few millimeters of water. The detector is fully electronic, with no moving parts, ensuring high reliability and long service life. Electrode arrangement is shown on the diagram below on the rear of the TSF400 water detection sensor.

TSF400 Electrode Arrangement

Features

  • Early leak detection
  • Wide power supply range
  • N-channel open-drain output
  • LED status indicator
  • Rugged IP65 enclosure
  • Maintenance-free design
  • Compact and easy to install
  • Versatile applications

Applications

  • Leak detection in server rooms, UPS rooms and telecom shelters
  • HVAC drip trays, cooling/condensation lines
  • Under-floor and raised-floor monitoring
  • Domestic and commercial flood-alert systems

Specifications

Supply Voltage Range: 4.5-26vDC
Maximum Supply Current: 5mA @ 12vDC
Detection Principle: Conductivity Between Electrodes
Output Type: N-Channel Open-Drain Active Low.
Output States: Water Present – Off/Open
Water Absent – On/Low
Output Rating: Max Output Rating: 30V @ 100mA
Cable Length: 3m Cable
Operating Temperature Range: 0 to +50°C
Operating Humidity Resistance: 10-90%RH (Non-Condensing)
Dimensions: 88 x 17 x 46mm
Weight: 115g
Warranty: 3 Years
