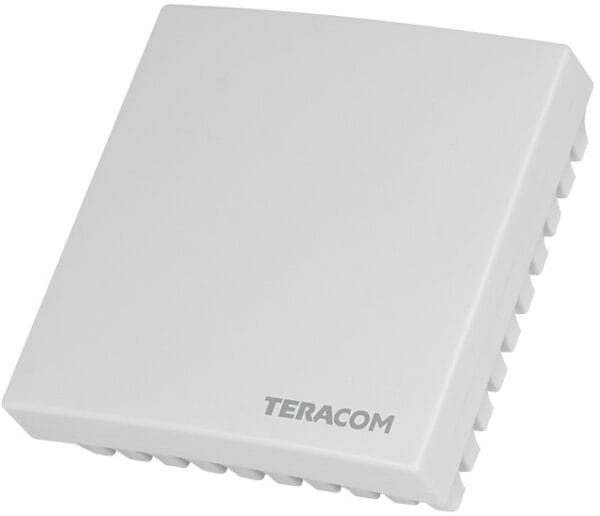

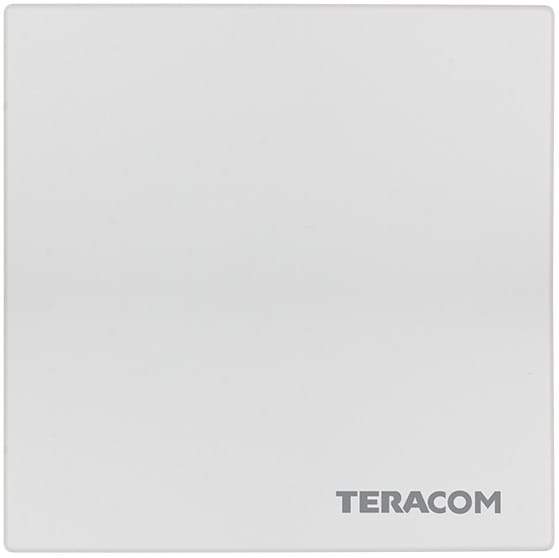

Wall-Mounted Temperature and Humidity Sensor

The TSM400-4-TH is a Wall-Mounted Temperature and Humidity Sensor with an RS485 Modbus RTU interface, designed for accurate monitoring in environments like factory and office spaces, and suitable for smart applications and data logging. It offers Air Temperature and Relative Humidity measurements. Features RS485 interface for up to 32 nodes with changeable bitrate, and other communications parameters. Connection via screwless terminal block.

Need help finding the right product?

Downloads

TSM400-4-TH Temperature and Humidity Sensor

Description

The TSM400-4-TH is a digital sensor designed to measure humidity and temperature, communicating via an RS485 Modbus RTU network. Its wall-mountable design makes it an ideal choice for monitoring environments such as server rooms, data centers, offices, and retail spaces. This sensor integrates both basic sensing elements and signal processing, delivering a fully calibrated digital output for superior measurement quality. Crucially, its sensing elements are factory calibrated, eliminating the need for any re-calibration throughout the product’s lifespan.

Supporting the widely adopted Modbus RTU protocol, the TSM400-4-TH seamlessly integrates into Building Management Systems (BMS) and Industrial Automation Systems (IAS). Each sensor comes with a unique serial code, enabling the connection of multiple sensors on the same RS485 bus. Encased in a slim plastic enclosure, the humidity and temperature sensor is designed for installation on standard flush-mounted or cavity wall boxes, accommodating openings up to 61mm.

Features

  • LED indicator for status of communication
  • Long-term stability based on digital signal processing
  • Changeable communication parameters
  • Non-volatile memory for all settings
  • Suitable for wall mounting
  • Firmware update via the interface

Applications

  • Environmental quality monitoring and assessment for offices
  • Server room and data centers humidity and temperature monitoring
  • Indoor air quality systems
  • Humidity and temperature monitoring in building management systems (BMS)

Specifications

Temperature Humidity
Operating Range*: -20 to +60°C 10 to 90%RH
Accuracy ±0.4°C (0.6°C Max) ±3%RH (5%RH Max)
Long-Term Drift (Typical): ±0.05°C ±0.25%RH
Resolution: 0.1°C 0.1%RH
Power Supply: 4.5 to 26vDC (5V @ 150mA)
IP Rating: IP20
Dimensions: 81 x 81 x 30mm
Connectors: Screwless Terminal Block

* Recommended operating range is -10 to 60°C @ 20-80%RH. Prolonged operation beyond these ranges may result in a shift of sensor reading and slow recovery time.

Product

Ref

Price

Product Description

TSM400-4-TH

£71.79

TSM400-4-TH is a Wall-Mounted Temperature and Humidity Sensor with a RS485 Modbus RTU interface, designed for accurate monitoring in environments like factory and office spaces, and suitable for smart applications and data logging. It offers Air Temperature and Relative Humidity measurements. Features RS485 interface for up to 32 nodes with changeable bitrate, and other communications parameters. Connection via screwless terminal block.
