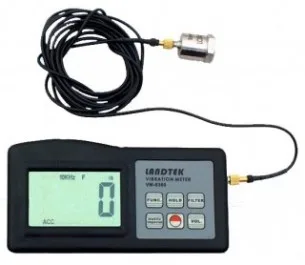

VM-6360 Vibration Meter

Description

Features

  • Acceleration, Velocity, Displacement and RPM reading
  • English & Metric Units

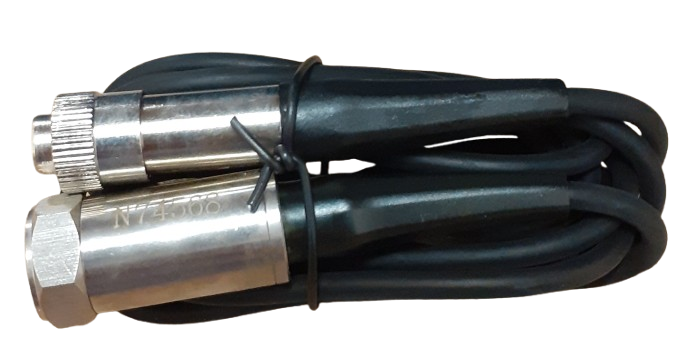

  • Piezoelectric accelerometer and magnetic base
  • Large LCD Display
  • Pocket Size
  • Automatic power off
  • Max Hold
  • Low Battery Warning

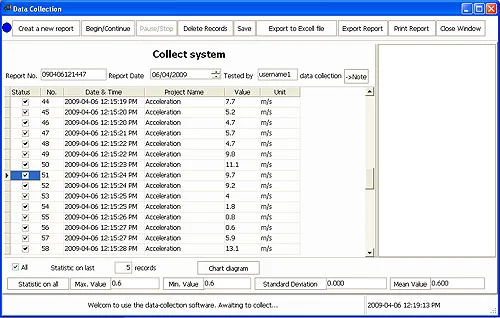

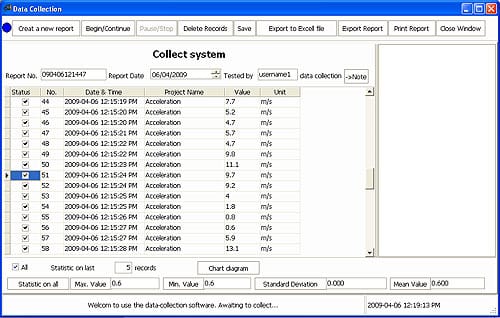

  • Real time reading can viewed on your PC via the optional windows software and saved data can be exported to MS Excel.



Measured Ranges

Acceleration: 0.02 ~ 20g (0.2 ~ 199.9mm/ss)
Vibration Velocity: True RMS, 0.1~8in/sec (0.2 ~ 199.9mm/s)
Displacement: Peak to Peak, 0-04 ~ 80mil (1 ~ 1999um)
RPM: 5 ~ 99,990 (readings multiplied by 10 if display shows ’10’)
Frequency: Hz, see datasheet for more details.

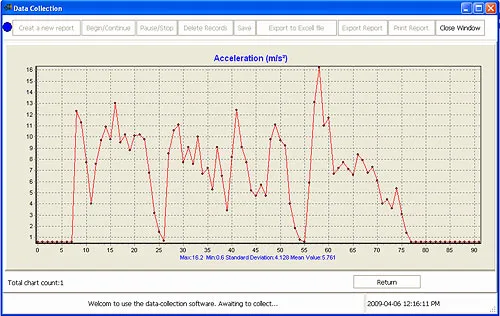

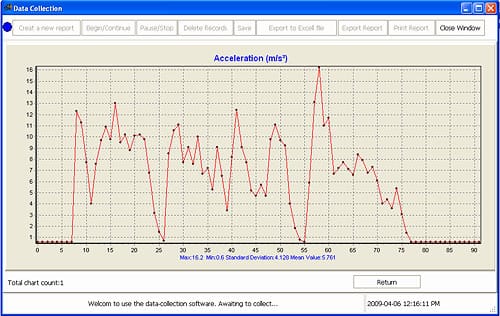

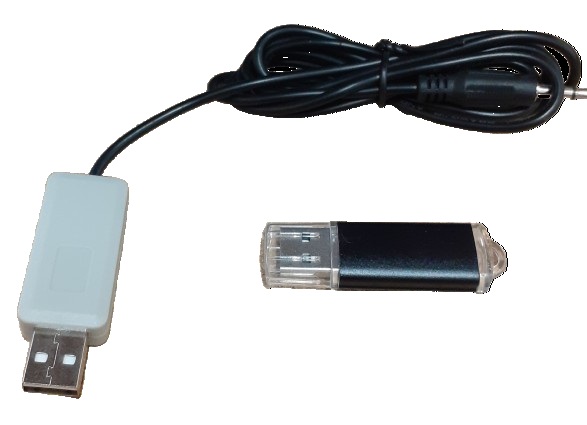

The VM-6360 can be connected to a PC using the optional cable and software to allow for real-time graphing and logging.



Note: Unfortunately we cannot offer calibration certificates for the VM-6360.

Associated Paper

Bitlis Eren University, Turkey – Vibro-Acoustic Assessment of Grain Grinding Machine for Health Risk Factors AnalysisÂ
