Description
Features
Optical Ranges: Up to 2 metre (up to 1m with visible light) with reflective tape.
High Speed Applications: A clip on pre-focussed LN1 Lens Adaptor is available which can allow operation without reflective tape in certain controlled conditions.
Power Options: The VLS Series Optical Speed Sensors are available in 5vDC and 7.5-40vDC powered options, normally provided by the associated instrument from our range.
Contact Adaptor: The contact adaptor converts the optical function into direct shaft contactor for both RPM and linear speed measurement, this bayonet fitting device operates via a Hall Effect magnetic sensor built into the Sensor housing which picks up from a magnet in the VLS sensor.

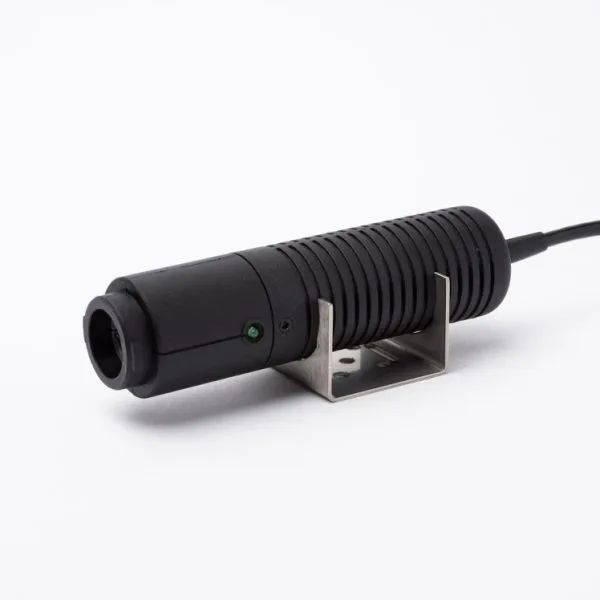

Accessories must be ordered separately for the VLS Sensors A range of mounting devices is available for use with these sensors, brackets, clamps, fixed focus lens for high speed and small shafts.
Cable lengths can be made to order: Please Contact us for more information
Specifications
| Model | VLS5/T | VLS7/T | VLS5/T/LSR | VLS7/T/LSR |
| Optical Range | 50 – 1000mm | 50 – 2000mm | ||
| Overall Speed | 0 – 250,000 RPM (with lens range adaptor at high speed) | |||
| Optical Angle | ±45° | ±80° | ||
| Power Supply | 5vDC | 7.5-40vDC | 5vDC | 7.5-40vDC |
| Light Source | Mini Lamp | Red Laser Class II 635nm | ||
| Operating Temp | -10 to +70°C | -10 to + 45°C | ||
| Cable | 1.5m 4 core cable | |||
| Dimensions | 130mm length and 34mm diameter | |||
| Output | NPN Pulse Output | |||
