Description

Features

• The BV1000 flow range is 0.1 to 2.5 lpm
• The BV2000 flow range is 0.5 to 35 lpm
• Compact size
• Measurement in any meter orientation
• Operating Pressure up to 25 Bar
• Temperature range -20 to 100°C
• Accuracy of ±3%

Applications

The meters are designed for flow measurement of low-viscosity and non-aggressive liquids, including demineralized water, alkaline solutions, oils, salad oil, fuel/fuel consumption, beverages, water solutions and coolants. The meter is especially suitable for washing machines, dishwashers, coffee machines, laser cooling plants, solar solutions, bakery machines, steam cooking machines in large kitchen plants, and CD or DVD cleaning.

Food Industry: Coffee machines, vending machines, dispensing systems, bakery machines, and steamers

Medical Applications: Sterilizers, slide staining, dental water jets, and dialysis machines

Chemical and Pharma Industry: Dosing systems and bottling plants

Industrial applications: Cooling systems, washing machines and plants, dosing systems, water treatment units, filter monitoring systems, and solar plants

Automotive: Fuel consumption measurement and fuel injection systems

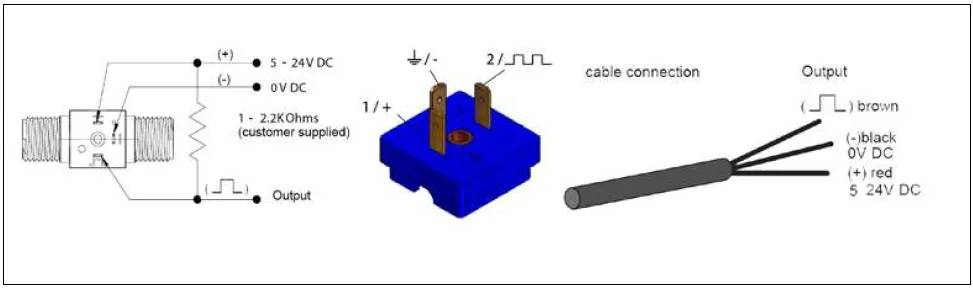

Wiring Diagram
