Description

Features

Simple

• Pre-programmed velocities—simply select from a list of common materials or enter your own with ease
• Smart Couple™ mode eliminates unintentional decoupling—ensure continuous measurements while measuring on scaled or pitted surfaces—ideal for analyzing large areas using multiple passes
• Larger 2.8″ impact resistant colour touchscreen with redesigned keypad for quick menu navigation
• On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body

Accurate

• Precision ultrasonic transducers provide fast, accurate readings
• Built-in temperature compensation ensures measurement accuracy
• Conforms to national and international standards including ASTM E797

Versatile

• PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, DPM-L, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
• Auto rotating display with Flip Lock
• Single or two point adjustment
• Inch/mm switchable
• Selectable display languages
• Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Powerful

• Min Scan mode—take continuous readings and record min/max thicknesses—ideal for quick inspection over a large area
• Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
• Screen Capture—save 100 screen images for record keeping and review
• Instant-on feature quickly powers up the gage if recently powered down
• Up to 30% longer battery life
• USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for reviewing and reporting data
• Every stored measurement is date and time stamped

Standard Model

• Storage of 1,000 readings per probe – Stored readings can be viewed or downloaded.

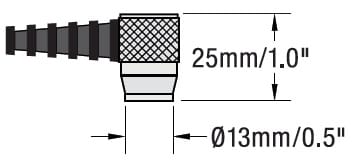

Probe Model UTG CLF

UTG CLF Probe measures the wall thickness of materials such as steel, plastic, and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side.

• 2.25 MHz dual element transducer cabled probe
• Designed for measuring attenuative materials such as cast iron
• Proprietary algorithm distinguishes back wall reflections from grain noise (reflections) found in cast materials

Probe Type:	2.25MHz Dual Contact
Thru-Paint Capability:	No
Measurement Range Single Echo:	2.0 to 125mm 0.08 to 5″
Resolution:	±0.01mm ±0.001″
Accuracy:	±0.03mm ±0.001″
