Description

Features

Simple

• Pre-programmed velocities—simply select from a list of common materials or enter your own with ease
• Smart Couple™ mode eliminates unintentional decoupling—ensure continuous measurements while measuring on scaled or pitted surfaces—ideal for analyzing large areas using multiple passes
• Larger 2.8″ impact resistant colour touchscreen with redesigned keypad for quick menu navigation
• On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body

Accurate

• Precision ultrasonic transducers provide fast, accurate readings
• Built-in temperature compensation ensures measurement accuracy
• Conforms to national and international standards including ASTM E797

Versatile

• PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, DPM-L, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
• Auto rotating display with Flip Lock
• Single or two point adjustment
• Inch/mm switchable
• Selectable display languages
• Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Powerful

• Min Scan mode—take continuous readings and record min/max thicknesses—ideal for quick inspection over a large area
• Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
• Screen Capture—save 100 screen images for record keeping and review
• Instant-on feature quickly powers up the gage if recently powered down
• Up to 30% longer battery life
• USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for reviewing and reporting data
• Every stored measurement is date and time stamped

Standard Model

• Storage of 1,000 readings per probe – Stored readings can be viewed or downloaded.

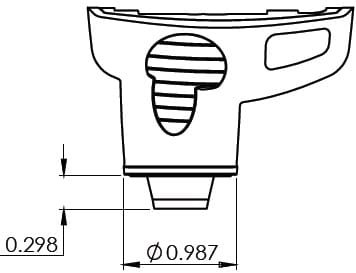

Probe Model UTG CA

Probe Type:	5MHz Dual Contact
Thru-Paint Capability:	No
Measurement Range Single Echo:	1.0 to 125mm 0.04 to 5″
Resolution:	±0.01mm ±0.001″
Accuracy:	±0.03mm ±0.001″
