Description

Features

Simple

  • Pre-programmed velocities—simply select from a list of common materials or enter your own with ease
  • Smart Couple™ mode eliminates unintentional decoupling—ensure continuous measurements while measuring on scaled or pitted surfaces—ideal for analyzing large areas using multiple passes
  • Larger 2.8″ impact resistant colour touchscreen with redesigned keypad for quick menu navigation
  • On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable

  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body

Accurate

  • Precision ultrasonic transducers provide fast, accurate readings
  • Built-in temperature compensation ensures measurement accuracy
  • Conforms to national and international standards including ASTM E797

Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, DPM-L, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Auto rotating display with Flip Lock
  • Single or two point adjustment
  • Inch/mm switchable
  • Selectable display languages
  • Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Powerful

  • Min Scan mode—take continuous readings and record min/max thicknesses—ideal for quick inspection over a large area
  • Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen Capture—save 100 screen images for record keeping and review
  • Instant-on feature quickly powers up the gage if recently powered down
  • Up to 30% longer battery life
  • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Includes PosiSoft suite of software for reviewing and reporting data
  • Every stored measurement is date and time stamped

Standard Model

  • Storage of 1,000 readings per probe – Stored readings can be viewed or downloaded.

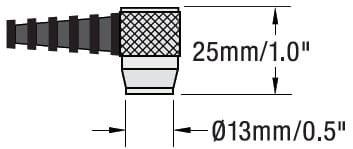

Probe Model UTG C

Probe Type: 5MHz Dual Contact
Thru-Paint Capability: No
Measurement Range
Single Echo:		 1.0 to 125mm
0.04 to 5″
Resolution: ±0.01mm
±0.001″
Accuracy: ±0.03mm
±0.001″
