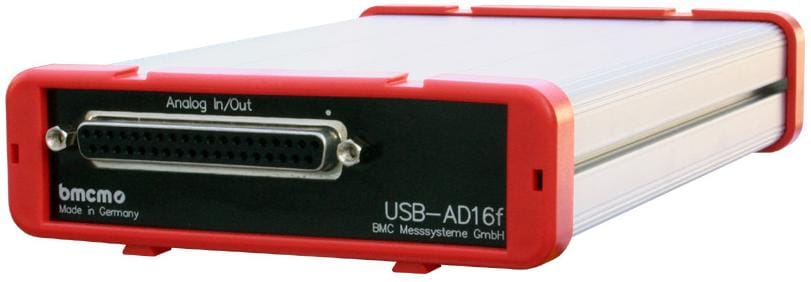

BMCM USB Data Acquisition Unit. 16 Analogue Inputs (Range: ±10V, ±5V, ±2V or ±1V) with a 16-bit Resolution and 250kHz Sampling Rate across all used channels, plus 4 Digital Inputs, 4 Digital Outputs, including one 16-bit Counter Input, and 2 Analogue Outputs (±10V with 16-bit Resolution). Power Supply: 4.5-5.5V from USB connection to the PC, max 100mA. USB 2.0 Interface Operating Temp: 0 to 70°C, Storage Temp: -25 to +85°C. Aluminium housings, Dimensions 167 x 113 x 30mm, IP30. Unit supplied with 1m USB connection cable, “Software Collection” CD and manual.
£444.05
USB acquisition unit, 16 analogue inputs ±10v, 5v, 2, 1v, 16 bit, 4 digital, inputs, 4 digital outputs, 1 up/down counter input, max sample rate 250KHz across the channels, 2 analogue outputs. Power supply via USB connection, max 100mA.
