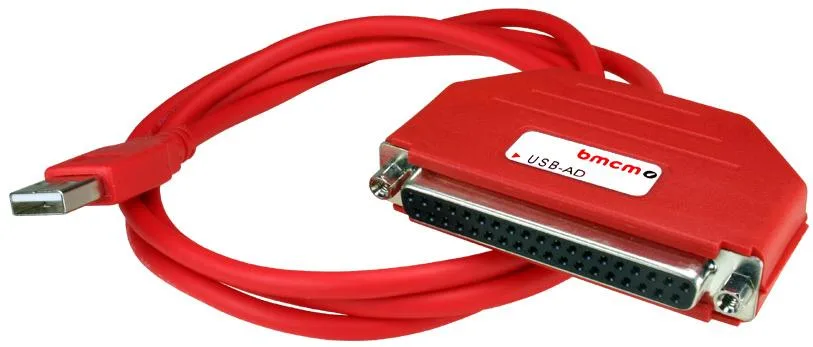

USB-AD USB Data Acquisition Cable. The 1.1m cable consists of a USB 2.0 port connecting to a 37-pin D-Sub Female Connector. The 37-pin connector allows up to 16 Analogue Inputs (±5V), 1 Analogue Output (±5V) and 8 Digital Input/Outputs, Plus One 32-Bit Counter Input to be connected. 12-Bit Resolution and 10Hz Sampling Rate per Channel. USB Bus Powered (Sensor Supply 4-5V @ max 20mA). Operating Temperature -25 to +70°C. Can be used together with ZU37BB/-CB/-CO but Analogue Ground for Channels 9-16, are not directly available.
£98.78
.
