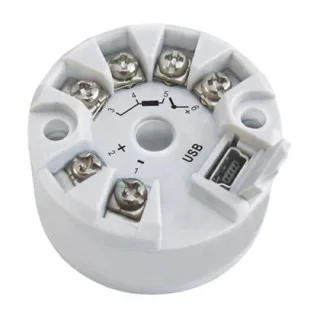

TxIsoPack Isolated Temperature Transmitter

TxIsoPack Isolated Temperature Transmitter

The TxIsoPacks are fully isolated 4-20mA two-wire loop powered temperature transmitters for head mount assemblies. Units have a built-in USB port to allow a configuration of sensor type and range via a PC. The TxIsoPack can be used for PT100 (2, 3 or 4-wire), Thermocouples (Type K, J, R, S, T, N, E, B) and 0-50mV inputs

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

TxIsoPack Temperature Transmitter

Description

Specifications

  • Programmable input: thermocouples (Type J, K, T, E, N, R, S, B), PT100, and 0-50mV
  • User programmable working range
  • 2-wire loop powered 4-20mA  or 20-4mA output
  • Power supply: 12 to 35vDC
  • Accuracy: PT100 and 0 to 50mV 0.2% of full scale, Thermocouples ± 0.3% of  full scale
  • Internal cold junction compensation for thermocouples
  • Working temperature: -20 to +75°C
  • Dimensions: 44mm diameter x 24mm max height
  • Isolation: 1000vAC for 1 minute between input and output
  • Communication cable: mini-B USB cable, 5 pins

Product

Ref

Price

Product Description

8807000000

£61.73

TxIsoPack programmable 2-wire isolated head mounted temperature transmitter. Suitable for Thermocouples (Type J, K, T, E, N,R, S, B), PT100 (2,3 or 4-Wire) and 0-50mV inputs with configurable 4-20mA or 20-4mA output. Integrated mini USB port for configuration of input type and output range. The TxIsoPack is suitable for head mounting with and ABS enclosure, 44mm diameter and 24mm height.
MORE INFO
Add to basket
